Kb Performance

KB Performance #KB662LCA.010 - Piston Kit - 4.125" +0.010" - 10.0:1 CR - 96"-103" Twin Cam Bored to 117 ci w/SE 95 cc Heads

Part #: 0910-5050
From $332.23
KB Performance #KB662LCA.010 - Piston Kit - 4.125" +0.010" - 10.0:1 CR - 96"-103" Twin Cam Bored to 117 ci w/SE 95 cc Heads—
$332.23

Fits These Vehicles

Shipping & Returns

Description

Piston Kit - 4.125" +0.010" - 10.0:1 CR - 96"-103" Twin Cam Bored to 117 ci w/SE 95 cc Heads

Features

  • New skirt coating technology is applied to the entire thickness of the piston-to-wall clearance for a zero install clearance; coating then abrades in on start-up to hone for the perfect fit per cylinder
  • Hard anodized top ring groove eliminates micro welding of the ring to the groove; this maintains a flat and smooth surface for the best ring seal and top ring groove
  • Skirt coating eliminates piston rock for the best possible ring seal with no piston slap noise
  • Hard anodized crown to aid in heat deflection and to reduce corrosion from alcohol fuels

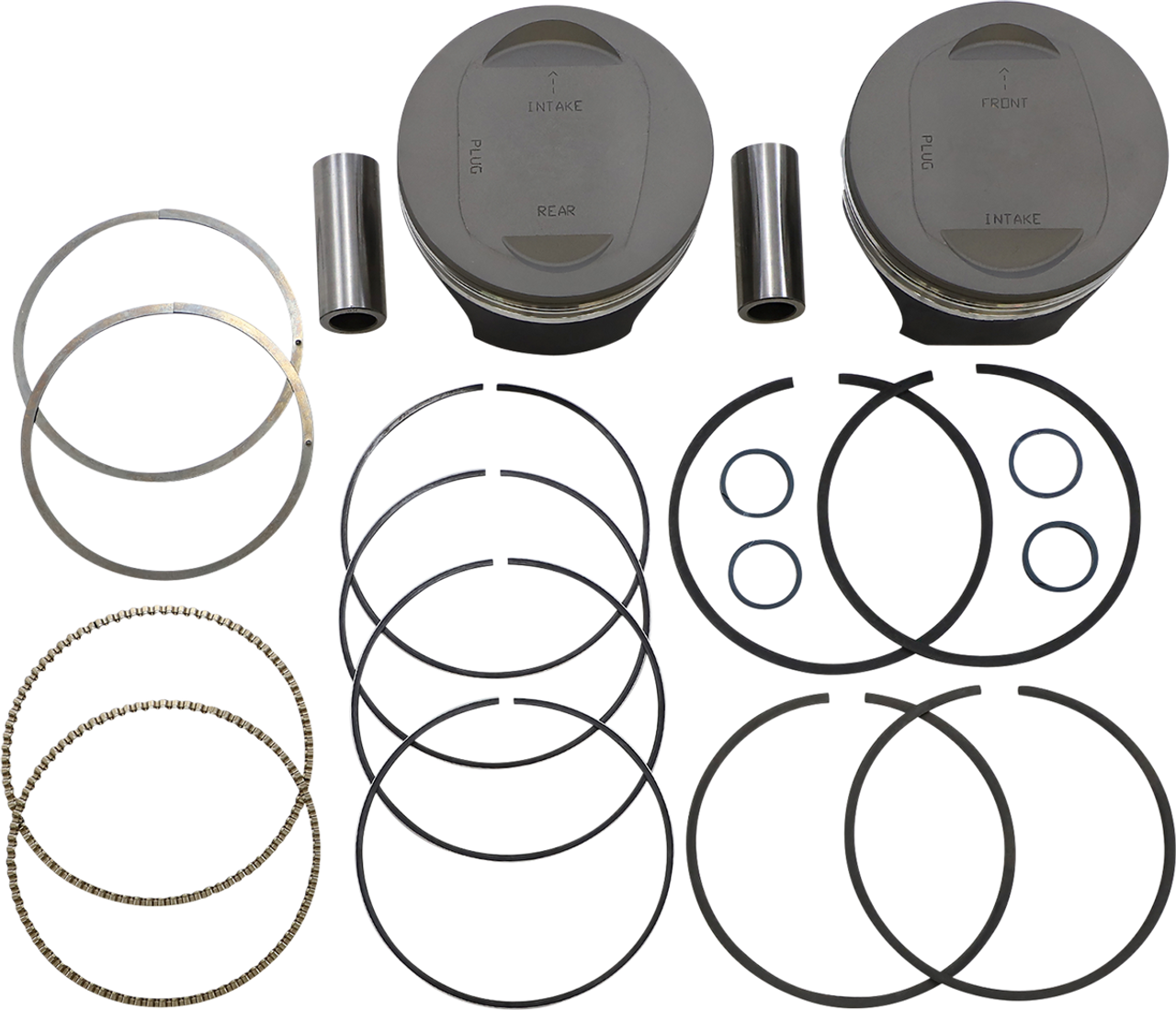

  • Includes pistons, rings, pins and clips
  • Made in the USA

Specs

Skirt CoatingLine2Line
Product NamePiston Kit
Piston Head ShapeDomed
ModelSuper Duty
Riding StyleStreet
Bore Size104.80 mm
Displacement117"
Stroke Length4.375"
StyleForged
UnitsKit
Bore - Oversize+0,010"
Compression Ratio10.0:1
Piston Material4032 Aluminum Alloy
Ring MaterialMoly Coated
