Andrews

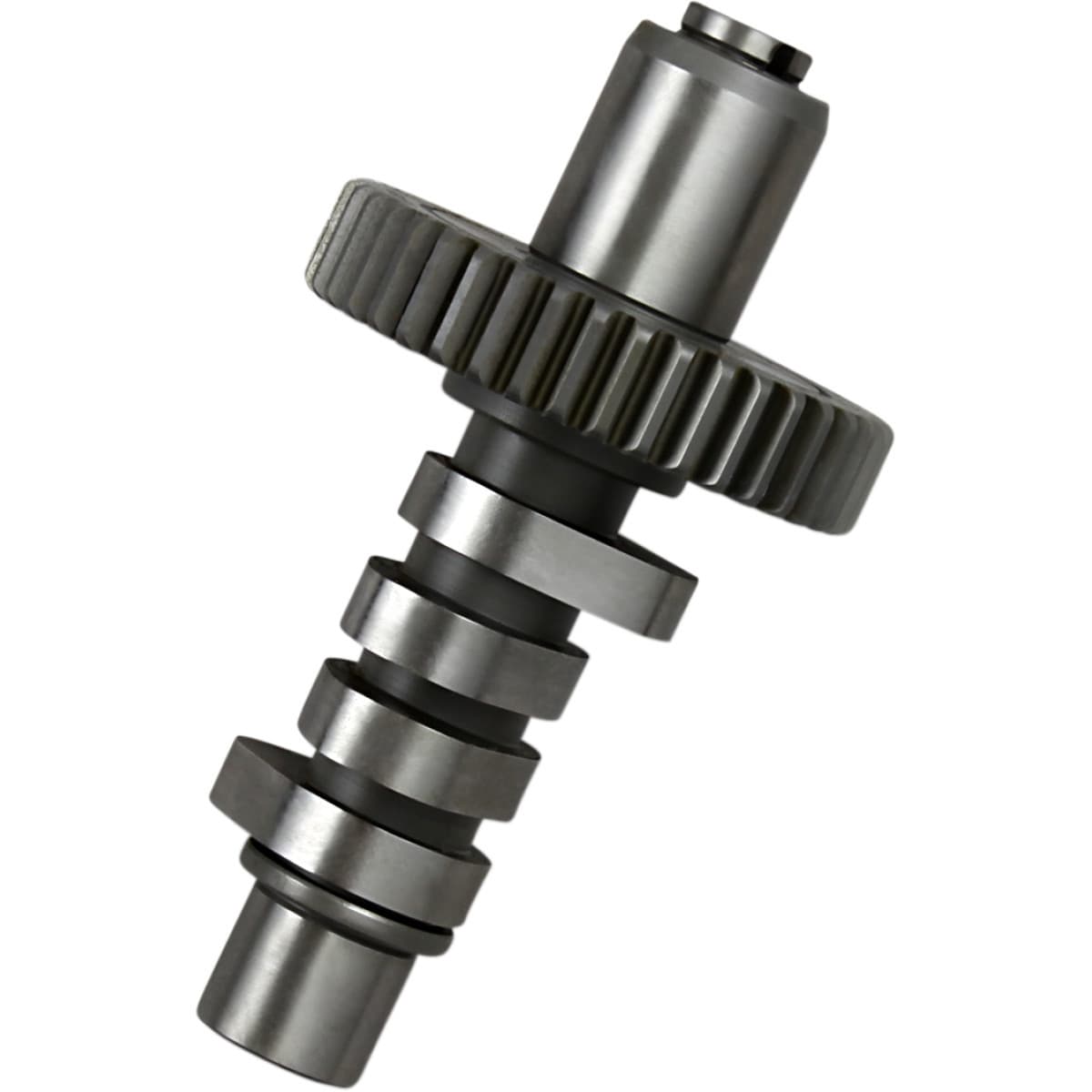

Andrews #212150 - Low-Compression Cam - #1 Grind - Shovelhead

Part #: DS-199324
From $214.16
Andrews #212150 - Low-Compression Cam - #1 Grind - Shovelhead—
$214.16

Fits These Vehicles

Shipping & Returns

Description

For Late '77 - '84 Shovelhead.

Features

  • Designed with a combination of shorter durations and higher lifts to offer the advantages of a broad torque output through the entire rpm range
  • Designed for hydraulics, but could be run with solids
  • Grind #1 is the low-compression version of an "A" grind cam for 74" and 80" models
  • Made in the USA
  • On late '77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier style components unless replaced in sets only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.

Specs

ApplicationExhaust
Exhaust Open36°
Grind#1
Riding StyleStreet
Intake Open16°
Exhaust LiftShovel: 0.427" Pan: 0.450"
Intake Close36°
Exhaust Duration232°
Exhaust Lift at TDC0.136"
Intake Lift at TDC0.136"
UnitsEach
Intake Duration232°
Exhaust Close16°
Intake LiftShovel: 0.427" Pan: 0.450"
Product NameCam
