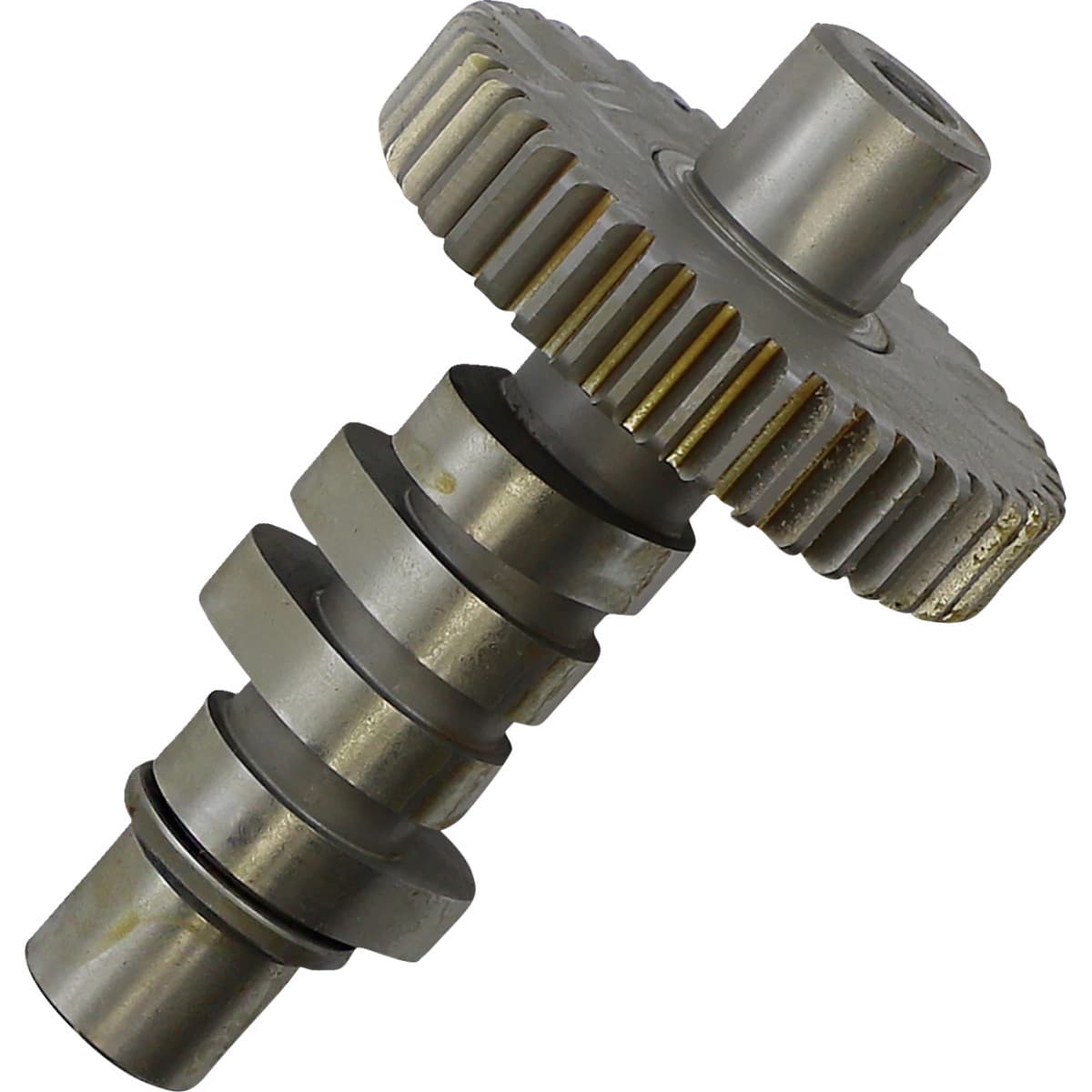

Andrews #212310 - Cam - AB Grind - Big Twin

Part #: DS-199317
From $214.16
Andrews #212310 - Cam - AB Grind - Big Twin—
$214.16

Fits These Vehicles

Shipping & Returns

Description

Bolt-in street cam have an "A" intake and long duration exhaust for cooler running and high end power.

Suitable for hydraulic lifters.

Features

  • More mid-range and top-end power for street and drag bikes. These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs
  • Cams are computer designed and precision ground from alloy steel billets on Landis CNC cam grinders
  • Made in the USA
  • Must check coil bind, valve to valve clearance, and valve to piston clearance.
  • On late '77 and later engines, the pitch diameter on the camshaft, pinion gear, and the breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in set only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.

Specs

ApplicationIntake
Exhaust Lift at TDCShovel: 0.142" Pan: 0.150"
Exhaust Open43°
Intake Open21°
GrindAB
Intake Lift at TDCShovel: 0.156" Pan: 0.164"
Exhaust Duration256°
Intake LiftShovel: 0.450" Pan: 0.470"
Exhaust LiftShovel: 0.450" Pan: 0.470"
Intake Close50°
Riding StyleStreet
UnitsEach
Exhaust Close26°
TypeGear
Intake Duration244°
Product NameCam
