Andrews

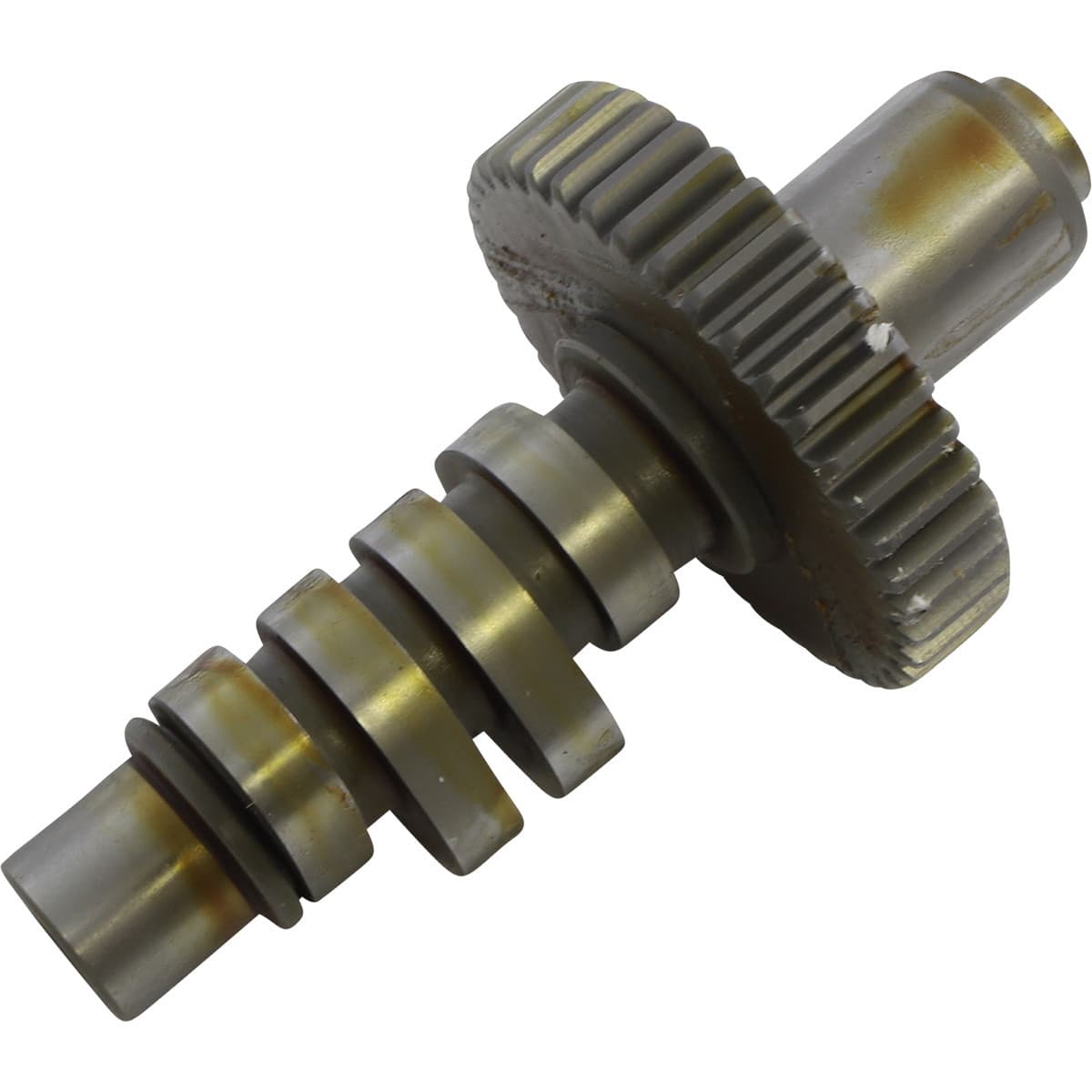

Andrews #212335 - Cam - AB Grind - Shovelhead

Part #: DS-199328
From $214.16
Andrews #212335 - Cam - AB Grind - Shovelhead—
$214.16

Fits These Vehicles

Shipping & Returns

Description

Bolt-in street cam has an "A" intake and a long duration exhaust for cooler running and high-end power.

Suitable for hydraulic lifters.

Not for '80 - '81 Shovelhead.

Features

  • More mid-range and top-end power for street and drag bikes. These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs
  • Cams are computer designed and precision ground from alloy steel billets on Landis CNC cam grinders
  • Made in the USA
  • Must check coil bind, valve to valve clearance, and valve to piston clearance.
  • On late '77 and later engines, the pitch diameter on the camshaft, pinion gear, and the breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in set only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.

Specs

Exhaust Lift at TDCShovel: 0.142" Pan: 0.150"
Riding StyleStreet
Product NameCam
ApplicationExhaust
Exhaust Lift0.450"
Intake Lift at TDCShovel: 0.156" Pan: 0.164"
Intake Duration244°
UnitsEach
Exhaust Close26°
GrindAB
Intake Lift0.450"
TypeGear
Exhaust Open43°
Intake Close50°
Intake Open21°
Exhaust Duration256°
