Andrews

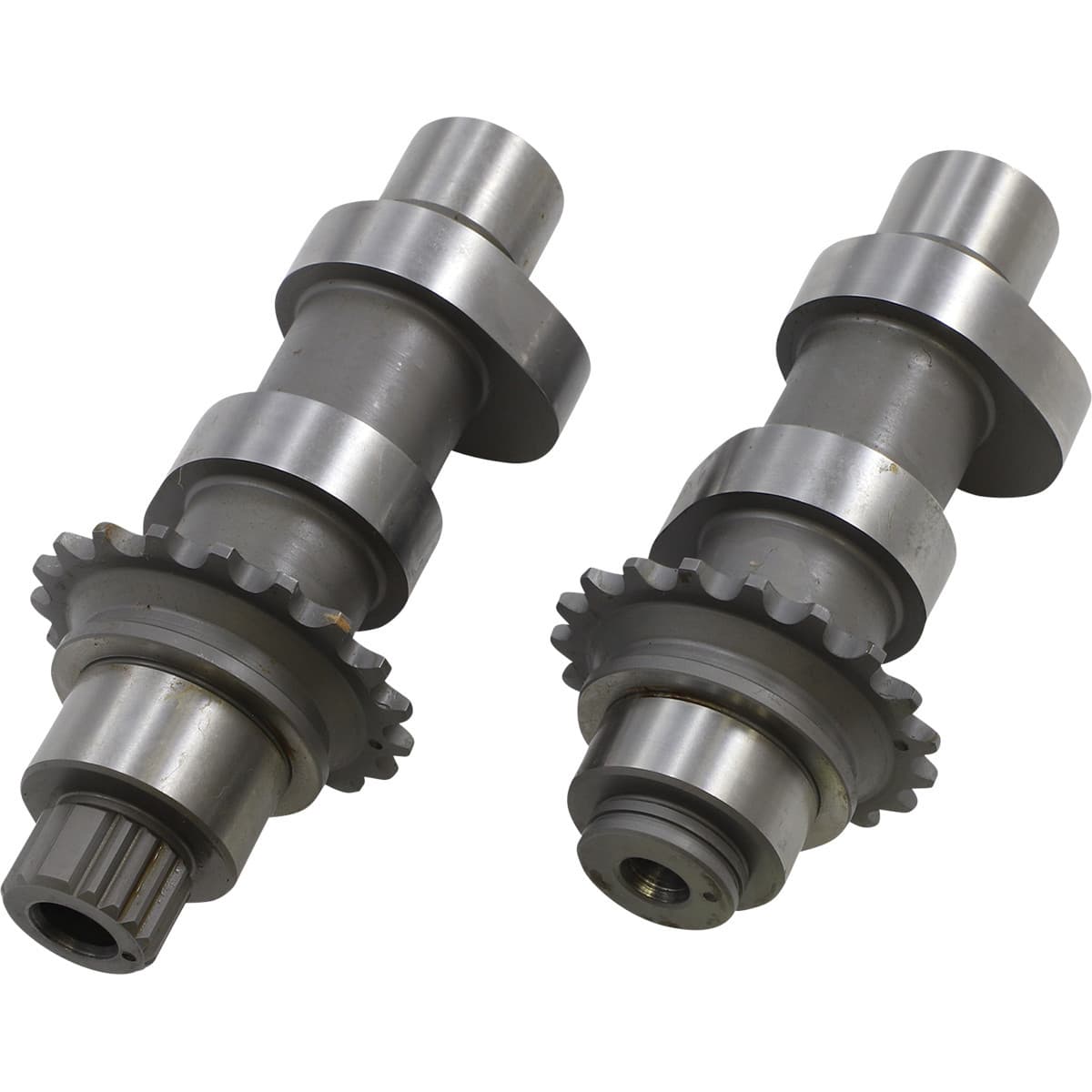

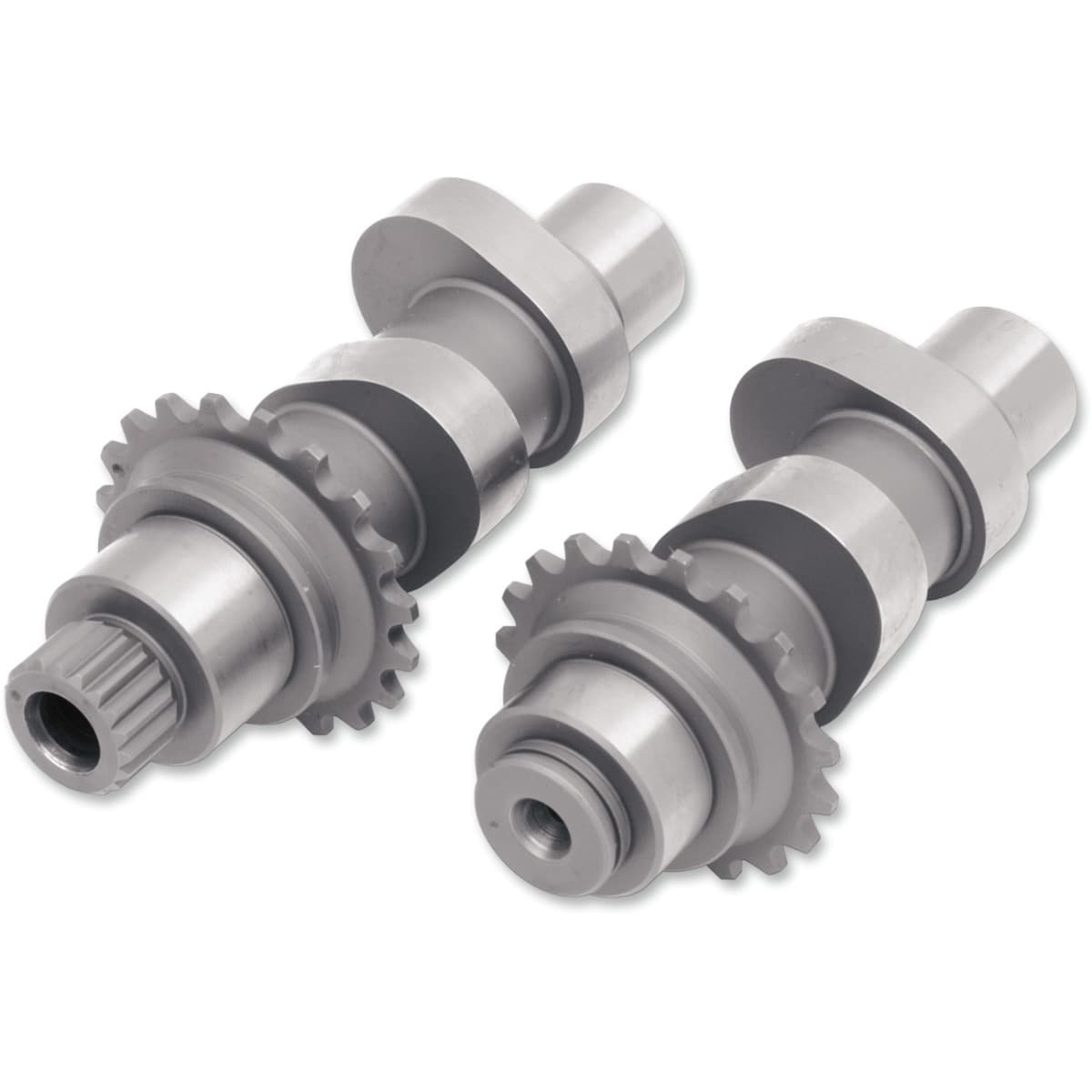

Andrews #216812 - Conversion Camshaft

Part #: 0925-0139
From $353.56
Andrews #216812 - Conversion Camshaft—
$353.56

Fits These Vehicles

Shipping & Returns

Description

Bolt-in cams with the same output as the stock cams.

Slight power increase when compared to stock.

No returning of the stock system is necessary.

Can be used with stock valve springs and tappets.

Features

  • Allows upgrade of the '99-'06 Twin Cam (except '06 Dyna Glide) to the newer roller-style cam chains and replaces the spring tension cam chain adjusters with the later-style hydraulic adjusters for longer life
  • Cam grinds listed are designed to be used with stock lifters; they require the installation of a '07-'17 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters (these parts are not included and must be purchased separately)
  • A list of required components is supplied with each set of cams
  • Performance should be similar to earlier bikes with the same cam grinds
  • Made in the USA
  • '99-'06 Twin Cam motors (except '06 Dyna Glide) cannot use the '07-'17 cams, as the bearing journal on the earlier motors is .875" in diameter and the '07-'17 cams are 1.000" in diameter. The "N" series of cams feature the .875" bearing journal, yet still accept the new style cam support plate.
  • '99-'01 model motors require Andrews rear cam sprocket . '02-'06 models must use the stock rear cam sprocket, OEM #25728-06.
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.

Specs

ApplicationIntake
Intake Lobe Centerline106°
TypeChain Conversion
Exhaust Duration222°
Exhaust Open40°
Grind12 Series
Intake Lift0.489"
Product NameCam Kit
Exhaust Close2°
Exhaust Lobe Centerline109°
Intake Close34°
Intake Open2°
ModelN Series
Riding StyleStreet
UnitsPair
Exhaust Lift0.489"
Exhaust Lift at TDC0.095"
Intake Duration216°
Intake Lift at TDC0.091"
