Cerwin Vega B52 - Stealth Bomber 500W RMS Full Range Class-D 2 Channel Digital Amplifier
Part #: B52
Ships direct from supplier
Item ships direct from supplier when available. Some items will be in stock and ship immediately, and others will have a lead time. Please contact us for more information. You will receive a lead time confirmation upon placing an order.
From $329.99
Cerwin Vega B52 - Stealth Bomber 500W RMS Full Range Class-D 2 Channel Digital Amplifier—
$329.99
Fits These Vehicles
Fits These Vehicles
Shipping & Returns
Shipping & Returns
Description
B52 - Stealth Bomber 500W Full Range Class-D 2 Channel Digital Amplifier
Description:
Ultra Compact High-Density Aluminum Alloy Chassis. Advanced Rollback Power/Thermal Protection. Class D IR Chipset with DirectFET Power Mosfet Output. Switchable 12dB HP/FLAT/LP Crossovers and VEGA Bass Boost. Remote Turn On Configurator - REM/DC/VOX.Features:
- 2 Channel Full Range Digital Amplifier
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable X-Over: LPF / FLAT / HPF

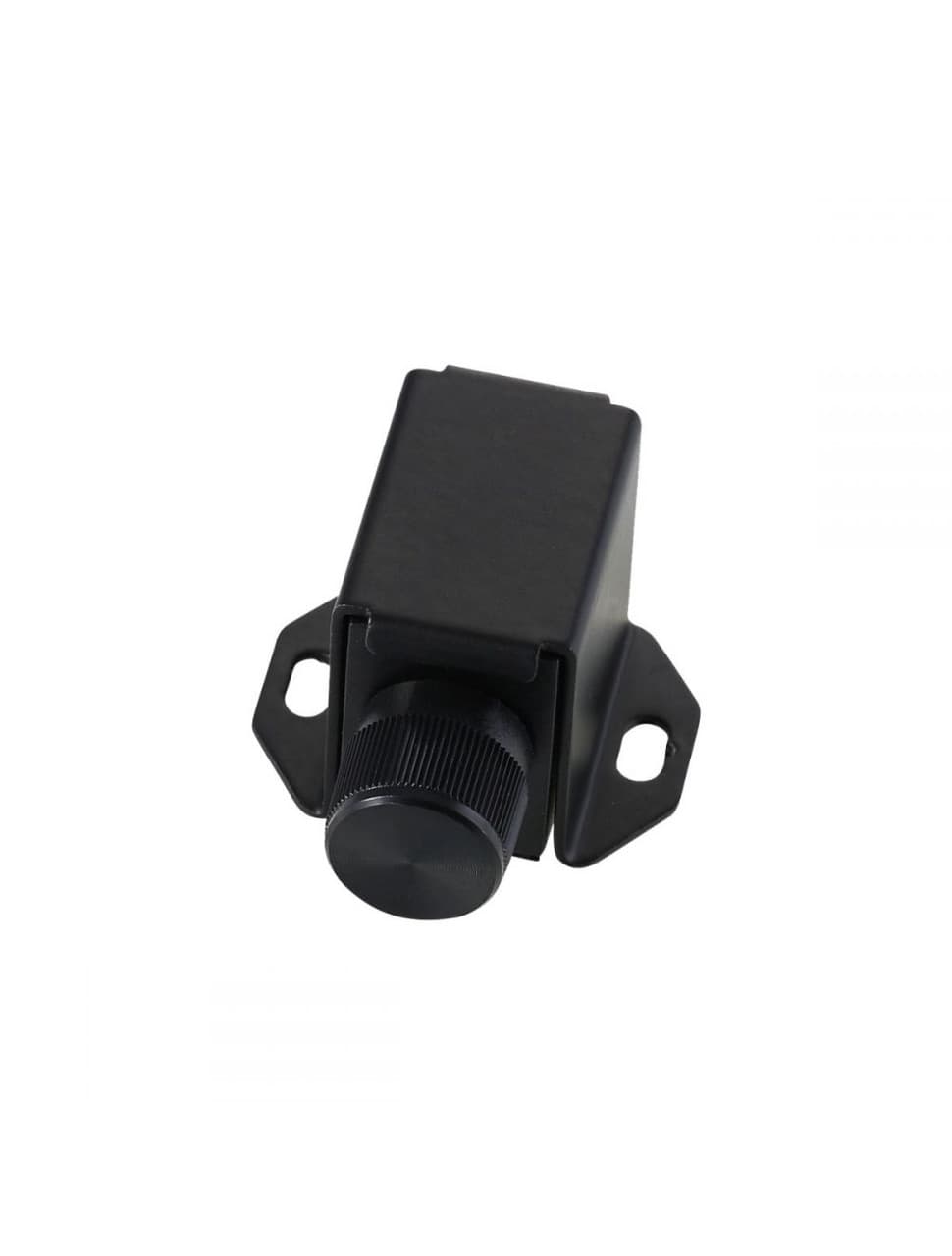

- Remote Bass Knob Included
- Disconnected RCA Input & Speaker Output Harness Kits Included

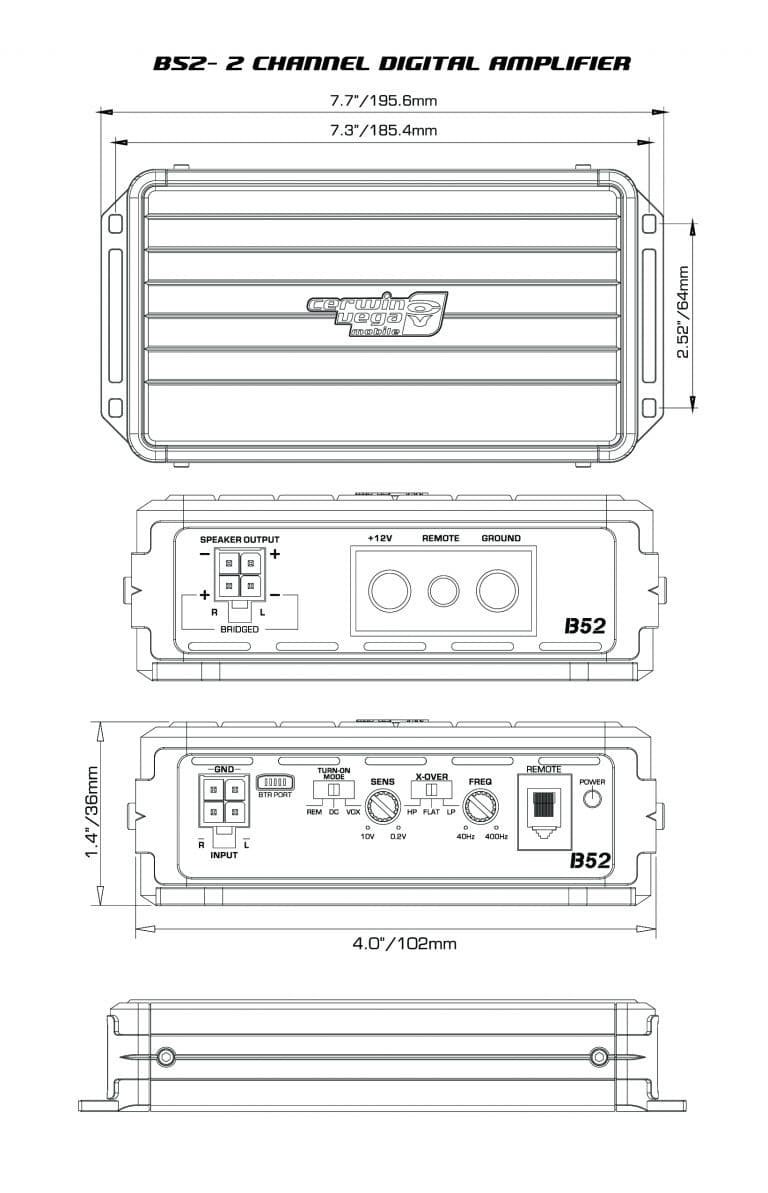

- Dimensions: 7.7? x 4.0? x 1.42? (195.6 x 102 x 36 mm)
| Amplifier | 2 Channel |
|---|---|
| RMS Power Rating | 500 W RMS |
| MAX Power Rating | 1000 W MAX |
| RMS Power(2?) | 250 W x 2 |
| RMS Power (4?) | 150 W x 2 |
| RMS Bridge (mono 1?) | N/A |
| RMS Bridge (mono 2?) | N/A |
| RMS Bridge (mono 4?) | 500 W x 1 |
| Topology | Full-Range Class D |
| Power Supply | Full PWM |
| Power Supply (Threshold) | 10.0VDC-17.0VDC |
| Idle Current | (0.7A) |
| Distortion - THD (1KHz@4?) | 0.5% |
| Distortion - S/N Ratio (A weight @ 1W) | -85dBA |
| Distortion - S/N Ratio (A weight @ FP) | -101.1dBA |
| Input Sensitivity Low | 200mV ? 10.0V |
| Input Sensitivity High | 200mV ? 10.0V |
| Input Impedance - Low Input Level | 20 k? |
| Input Impedance - AUX Input Level | 20 k? |
| Output Impedance | 0.0297 ? |
| Damping Factor (50Hz@4?) | >250 |
| Bandwidth (-3dB) | 10Hz-35KHz |
| Crossover (-12 dB/ Oct) Variable High-Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | N/A |
| FUSE Ratings - ATC | 25A |
| Remote | Included |
| Dimension - Length x Width x Height - Inches(mm) | 7.7? x 4.0? x 1.4? (195.6 x 102 x 36 mm) |
