Cerwin Vega

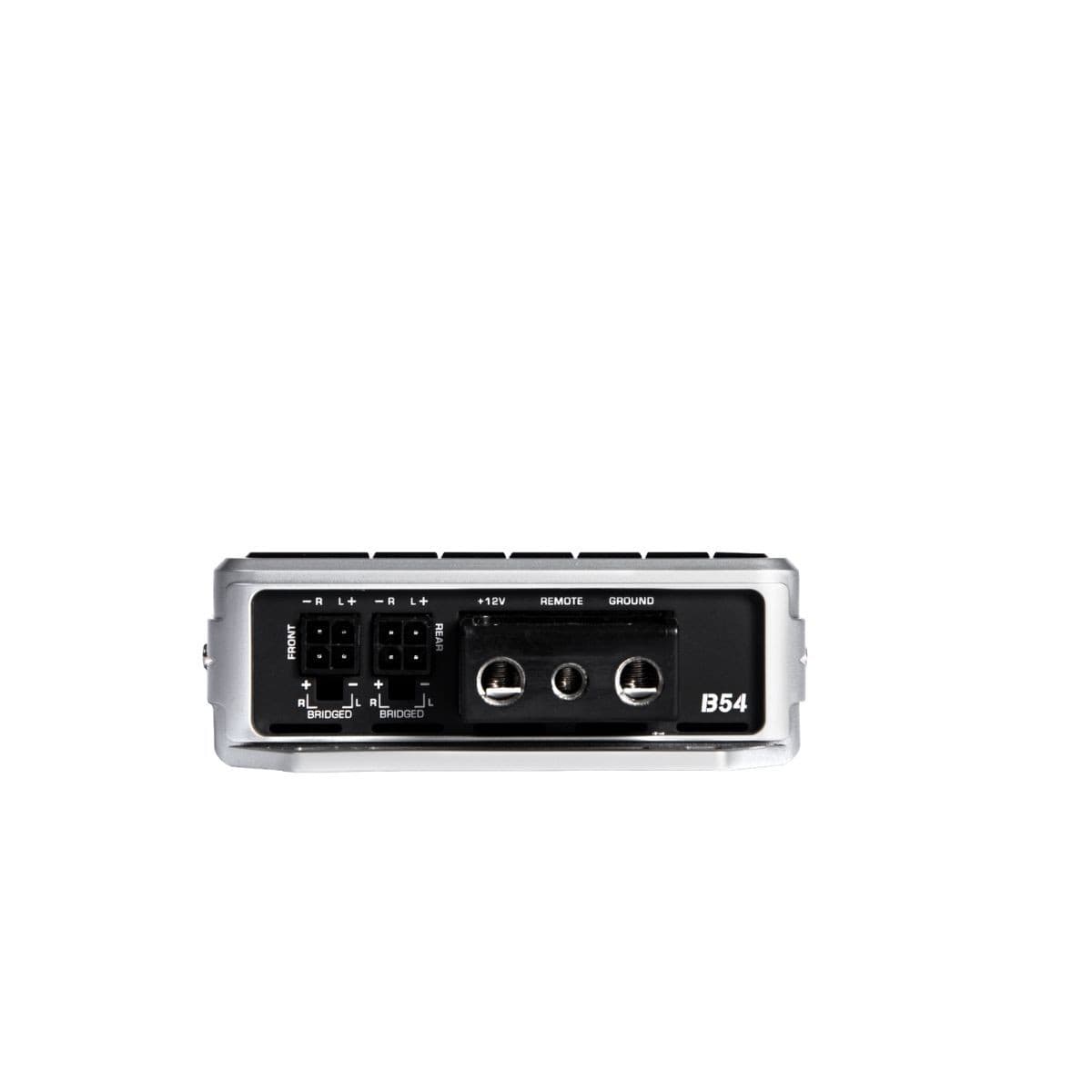

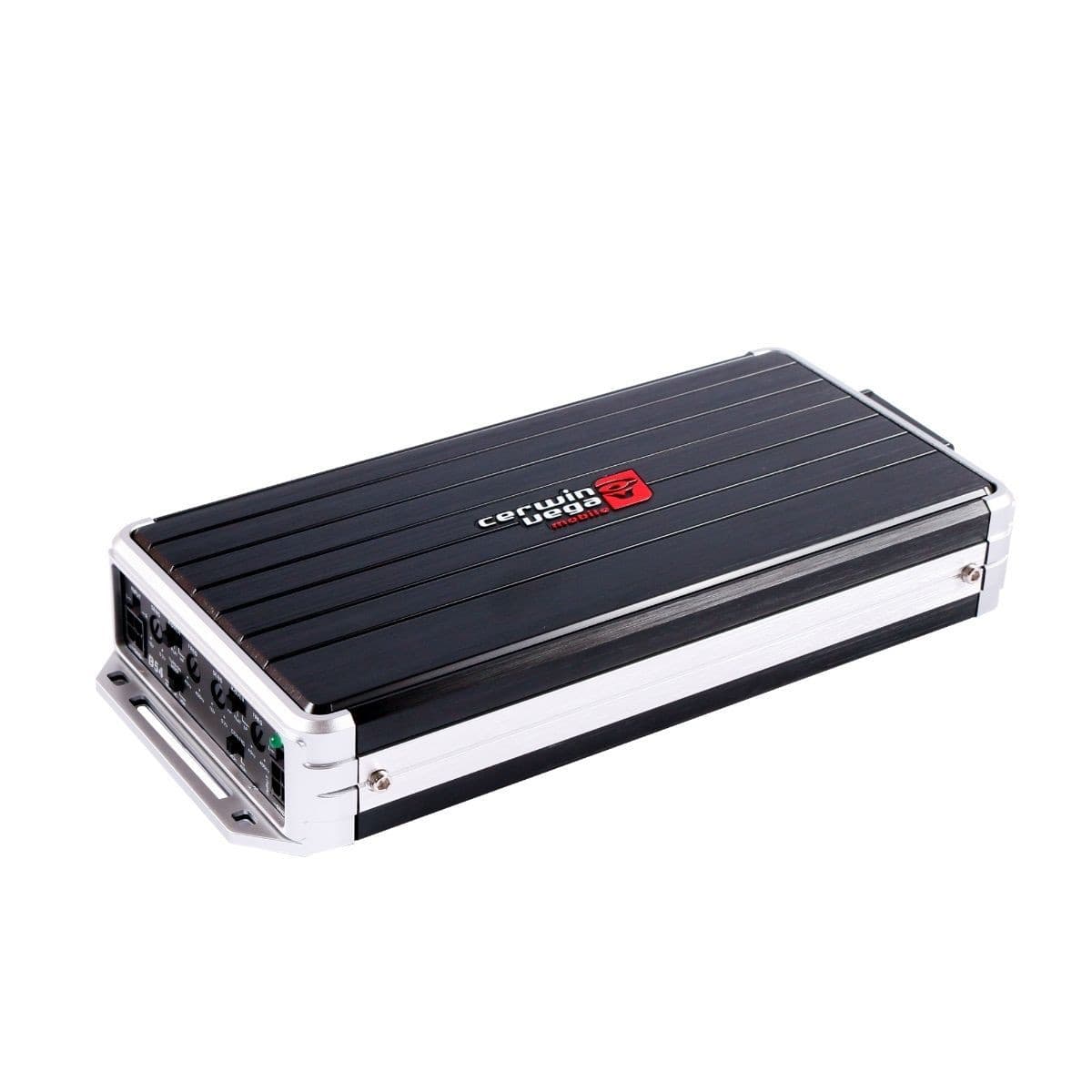

Cerwin Vega B54 - Stealth Bomber 600W RMS Full Range Class-D 4-Channel Digital Amplifier
Part #: B54
Ships direct from supplier
Item ships direct from supplier when available. Some items will be in stock and ship immediately, and others will have a lead time. Please contact us for more information. You will receive a lead time confirmation upon placing an order.
From $359.99
Cerwin Vega B54 - Stealth Bomber 600W RMS Full Range Class-D 4-Channel Digital Amplifier—
$359.99
Fits These Vehicles
Fits These Vehicles
Shipping & Returns
Shipping & Returns
Description
B54- Stealth Bomber 600W Full Range Class-D Digital 4 Channel Amplifier
Description:
Ultra Compact High-Density Aluminum Alloy Chassis. Advanced Rollback Power/Thermal Protection. Class D IR Chipset with DirectFET Power Mosfet Output. Switchable 12dB HP/FLAT/LP Crossovers and VEGA Bass Boost. Remote Turn On Configurator - REM/DC/VOX.Features:
- 4 Channel Full Range Digital Amplifier
- 150W x 4CH @ 2? / 80W x 4CH @ 4? / 300W x 2CH @ 4? Bridge
- RMS Power Output
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 40-400Hz, 12dB Per Octave Slope
- Frequency Response: 10-33KHz
- Selectable REM / VOX / DC Turn On Modes
- Selectable X-Over: LPF / FLAT / HPF
- Selectable 2CH / 4CH Input Modes
- Disconnected RCA Input & Speaker Output Harness Kits Included
- Dimensions: 8.88? x 4.0? x 1.4? (225.6 x 102 x 36 mm)
| Amplifier | 4 Channel |
|---|---|
| RMS Power Rating | 600W RMS |
| MAX Power Rating | 1200W MAX |
| RMS Power(2?) | 150 W x 4 |
| RMS Power (4?) | 80 W x 4 |
| RMS Bridge (mono 1?) | N/A |
| RMS Bridge (mono 2?) | N/A |
| RMS Bridge (mono 4?) | 300 W x 2 |
| Topology | Full-Range Class D |
| Power Supply | Full PWM |
| Power Supply (Threshold) | 10.0VDC-17.0VDC |
| Idle Current | (0.7A) |
| Distortion - THD (1KHz@4?) | 0.5% |
| Distortion - S/N Ratio (A weight @ 1W) | -85dBA |
| Distortion - S/N Ratio (A weight @ FP) | -101.1dBA |
| Input Sensitivity Low | 200mV ? 10.0V |
| Input Sensitivity High | 200mV ? 10.0V |
| Input Impedance - Low Input Level | 20 k? |
| Input Impedance - AUX Input Level | 20 k? |
| Output Impedance | 0.018 ? |
| Damping Factor (50Hz@4?) | >70 |
| Bandwidth (-3dB) | 10Hz-35Hz |
| Crossover (-12 dB/ Oct) Variable High-Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | N/A |
| FUSE Ratings - ATC | 40A |
| Dimension - Length x Width x Height - Inches(mm) | 8.8? x 4.0? x 1.4? (225.6 x 102 x 36 mm) |
