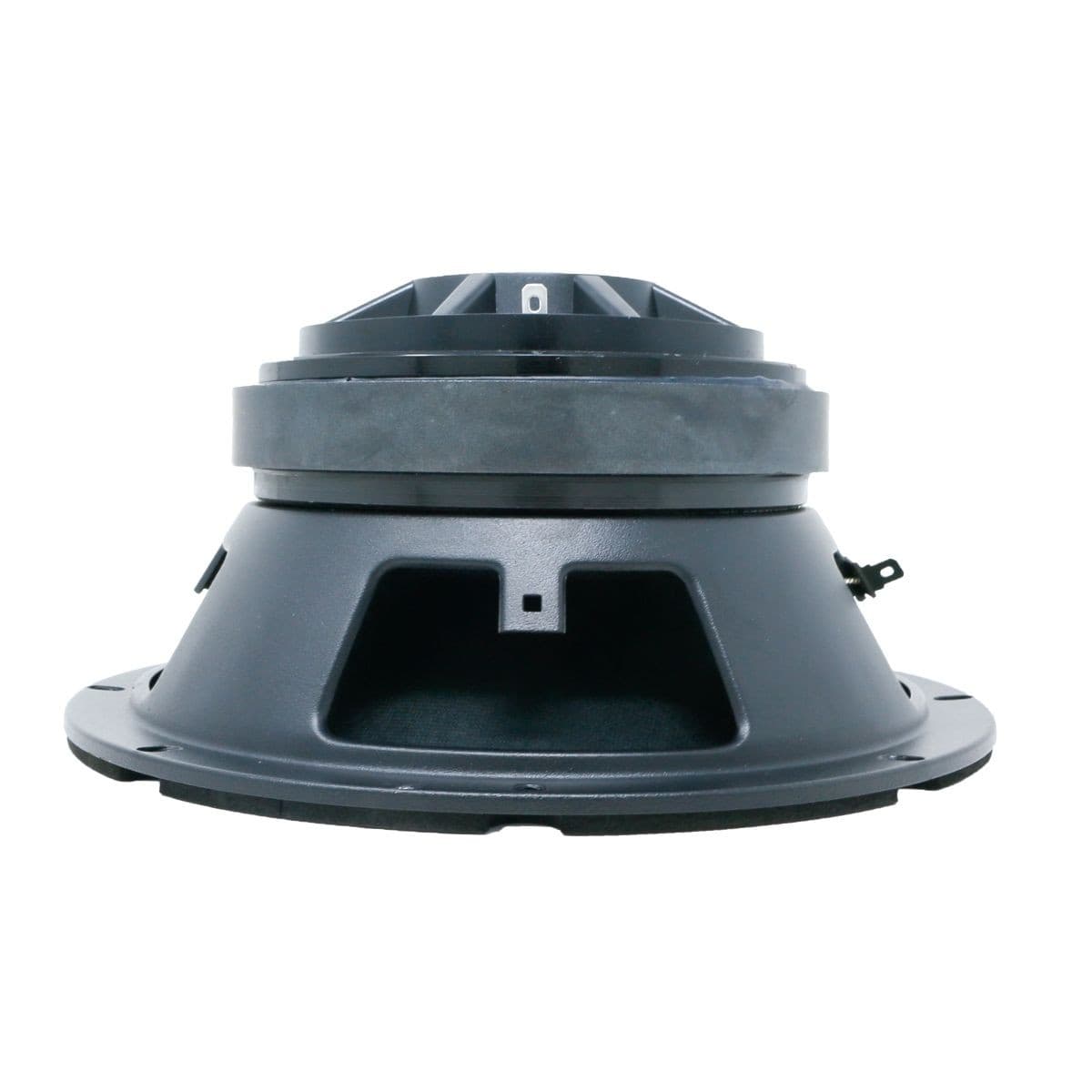

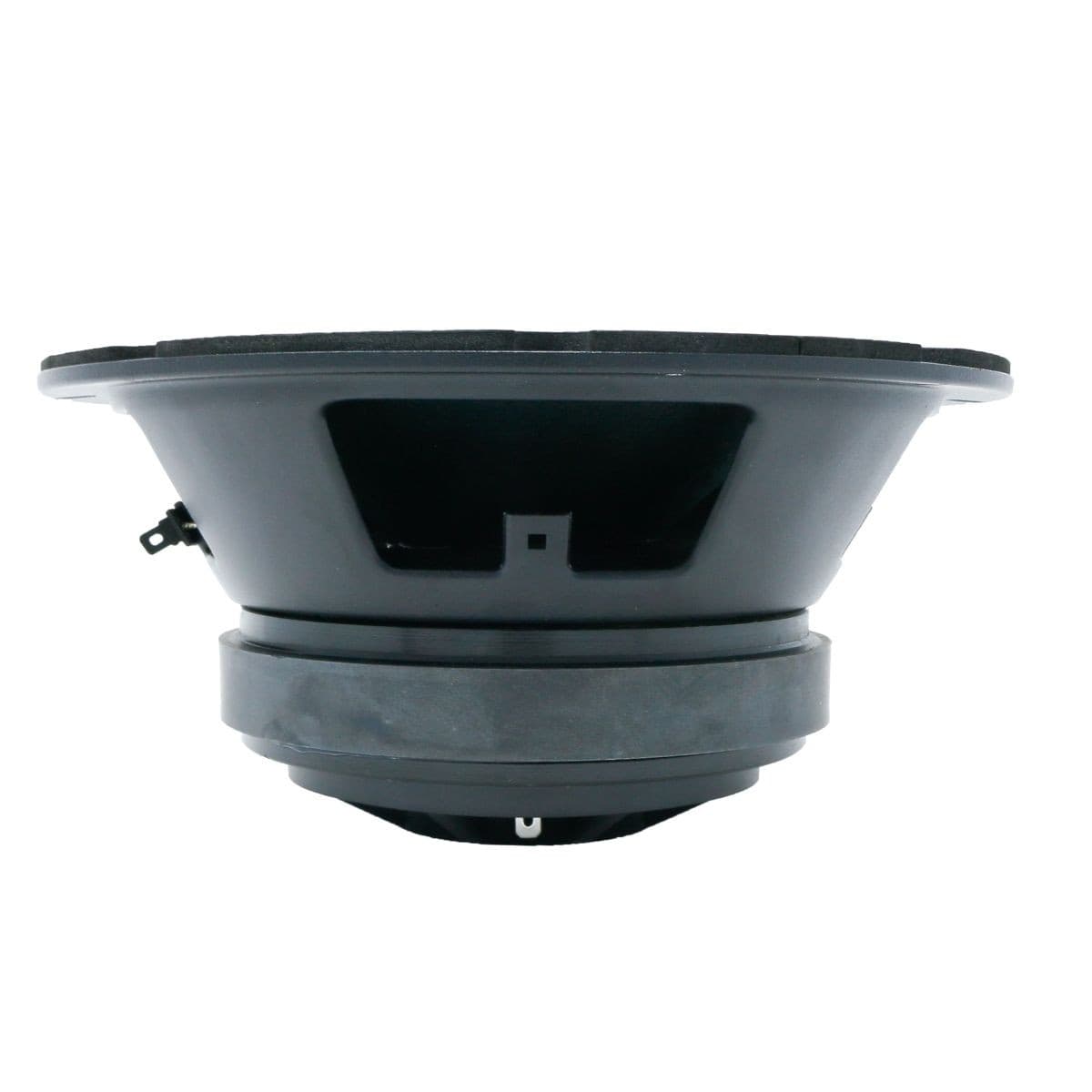

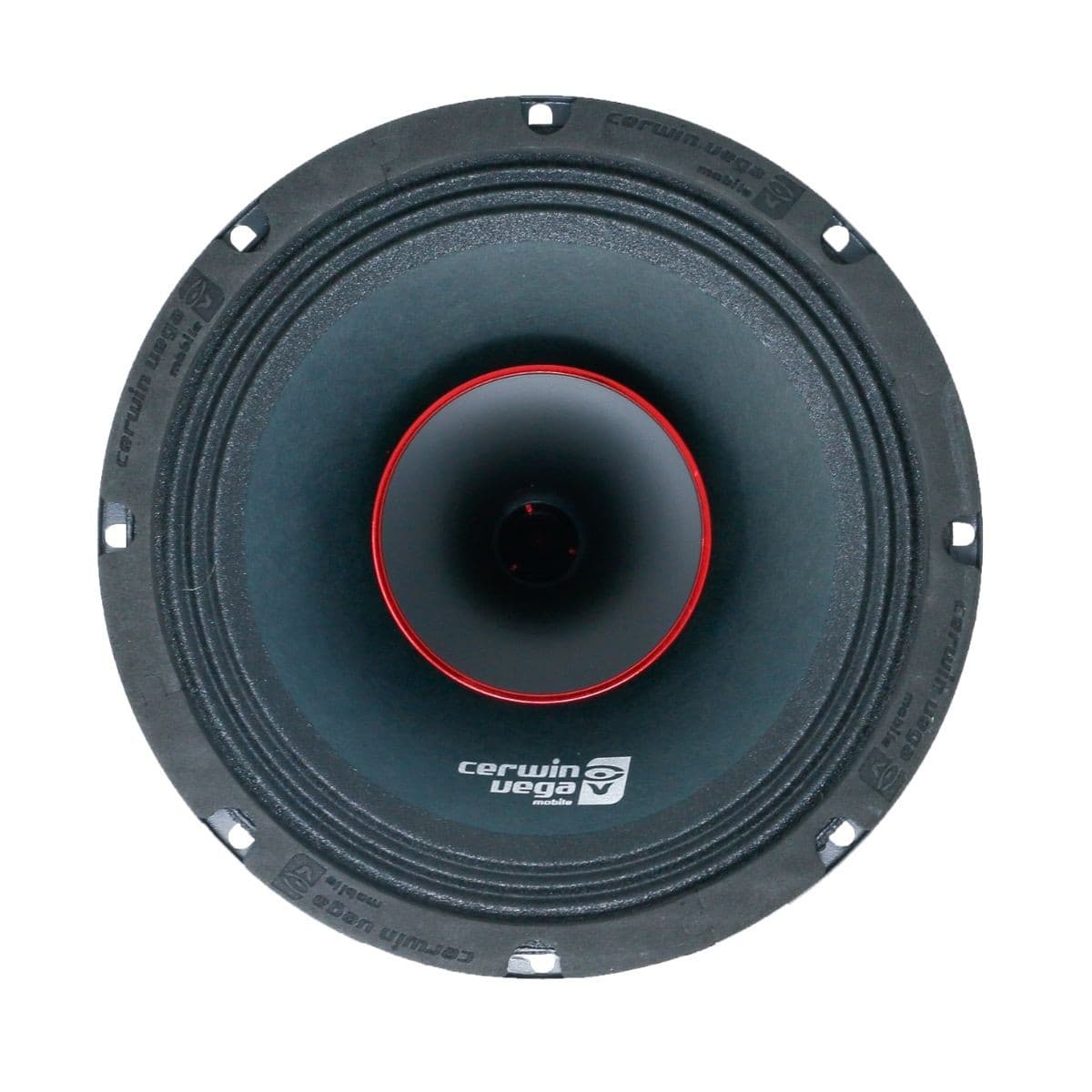

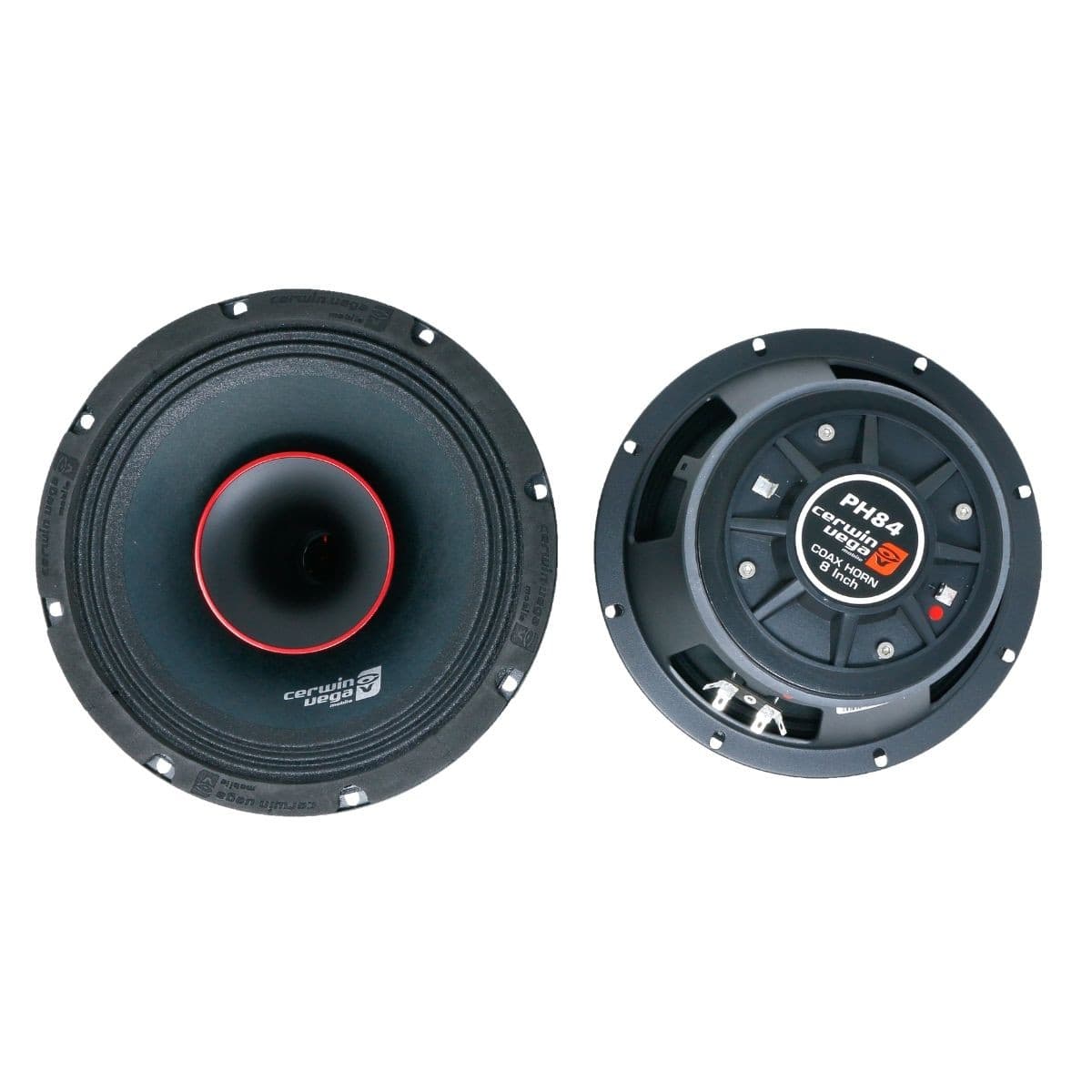

Cerwin-Vega PH84 - 8" PRO Full-Range Co-Ax Horn Speaker, Pair
Part #: PH84
Ships direct from supplier
Item ships direct from supplier when available. Some items will be in stock and ship immediately, and others will have a lead time. Please contact us for more information. You will receive a lead time confirmation upon placing an order.
From $219.99
Cerwin-Vega PH84 - 8" PRO Full-Range Co-Ax Horn Speaker, Pair—
$219.99
Fits These Vehicles
Fits These Vehicles
Shipping & Returns
Shipping & Returns
Description
Features:
- Ferrite Strontium High Temp Magnet Structure, Pair
- Heavy Duty Stamped Steel Basket
- Advanced Voice Coil Heat Sink Design for Better Heat Dissipation
- 1.5? 4 Ohm - Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
- 1.0? 8 Ohm - Single Layer High Temp Voice Coil for Tweeter
- Frequency Response: 80Hz -18Khz
- High Sensitivity 103dB 1W/1M
- 12dB 2nd Order Filter Crossover for Better Protection of the Tweeter
| Model | PH84 |
|---|---|
| Nominal Impedance (ohms) | N/A |
| Frequency Response | 80Hz -18Khz |
| Voice Coil Diameter (inch/mm) | 2.0? |
| Power Handling (RMS/Peak) | 180W RMS/360W MAX |
| Fs-Free Air Resonance (Hz) | 78.2 |
| Vas (Liter) | 19.0 |
| Qts | 0.40 |
| Sensitivity (1W/1M) | 103dB |
| Xmax - Inch(mm) | 1.0 |
| Mounting Diameter (inch/mm) | 7.17 (182) |
| Mounting Depth | 3.70 (94) in. (mm) |
