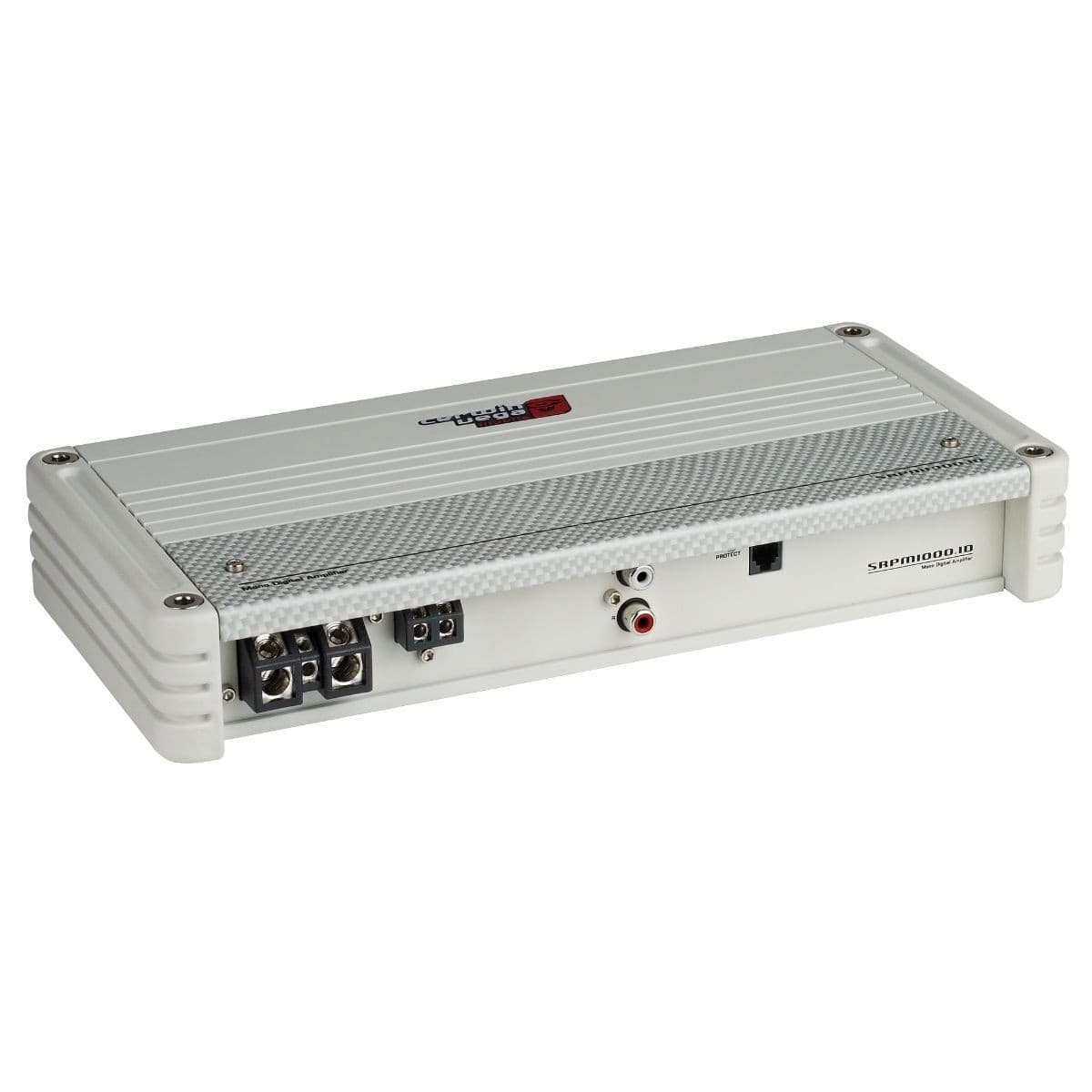

Cerwin Vega SRPM1000.1DW - RPM Stroker 1000W RMS Full Range Class-D Mono Digital Amplifier (White)
Part #: SRPM1000.1DW
Ships direct from supplier
Item ships direct from supplier when available. Some items will be in stock and ship immediately, and others will have a lead time. Please contact us for more information. You will receive a lead time confirmation upon placing an order.
From $499.99
Cerwin Vega SRPM1000.1DW - RPM Stroker 1000W RMS Full Range Class-D Mono Digital Amplifier (White)—
$499.99
Fits These Vehicles
Fits These Vehicles
Shipping & Returns
Shipping & Returns
Description
The RPM Series amplifiers were designed with the Latest High-Efficiency Full Range Digital Topology. Surface Mount Component Technology with 4-Layer PCB. Common Compact Size with Single-Sided Connections and Top Mount Controls. Handles HI and LO level input up to 12V. Switched Speaker Level Turn On Option (VOX/DC Offset/REM).
SRPM1000.1DW - RPM Stroker 1000W Full Range Class-D Mono Digital Amplifier (White)
Description
S9 Series amplifiers have HUGE ?dynamic? headroom capability and ALWAYS sound more powerful then rated Lighted LED logo power suggests. Latest High Efficiency Full Range Digital Topology. Surface Mount Component Technology with 4-Layer PCB. Common Compact Size with Single Sided Connections and Top Mount Controls. Handles HI and LO level input up to 12V. Switched Speaker Level Turn On Option (VOX/DC Offset/REM). Input configuration switch on 4 and 5 channel amplifiers. Fully Variable 35Hz - 350Hz 12dB per Octave Crossovers. Lighted LED logo. Bass remote can be disassembled and installed in-dash. Variable Phase adjustment on ALL S9 series Monoblocks to get correct phase. Moves bass from the trunk to the front.Features:
- 1 Channel Monoblock Digital Amplifier
- 1000W x 1CH @ 1?/800W x 1CH @ 2? /400W x 1CH @ 4? RMS Power Output
- Input Sensitivity: 0.2-10 Volt
- Crossover Filter : 30-300Hz (LPF), 24dB Per Octave Slope
- Frequency Response: 10-350Hz
- Variable Phase Adjustment
- Dimensions: 11.0? x 5.28? x 1.75? / 280 x 134 x 44.5 mm
| Amplifier | 1 Channel |
|---|---|
| Description | RPM Stroker 1000W Full Range Class-D Mono Digital Amplifier (White) |
| MAX Power Rating | 1000W |
| RMS Power (1?) | 1000 W x 1 RMS |
| RMS Power(2?) | 800 W x 1 RMS |
| RMS Power (4?) | 400W x 1 RMS |
| Types | Monoblock |
| Topology | Full-Range Class D |
| Power Supply | Full PWM |
| Power Supply (Threshold) | 10.0VDC ? 17.0VDC |
| Idle Current | (0.7A) |
| Distortion - THD (1KHz@4?) | 0.07% |
| Distortion - S/N Ratio (A weight @ 1W) | -77.4dBA |
| Distortion - S/N Ratio (A weight @ FP) | -97.4dBA |
| Input Sensitivity Low | 0.2mV ? 10.0V |
| Input Sensitivity High | YES ? UP to 25 W RMS |
| Input Impedance - Low Input Level | 22 K? |
| Input Impedance - High Input Level | 22 K? |
| Output Impedance | 0.047? |
| Damping Factor (50Hz@4?) | >250 |
| Bandwidth (-3dB) | 10Hz-350Hz |
| Crossover (-12 dB/ Oct) Variable High-Pass | N/A |
| Crossover (-12 dB/ Oct) Variable Low-Pass | 30Hz-300Hz |
| Crossover (-12 dB/ Oct) Variable Sub-Sonic | 10Hz-55Hz |
| FUSE Ratings - ATC | 60A |
| Remote | Bass Volume Control |
| Dimension - Length x Width x Height - Inches(mm) | 10.25? x 5.28? x 1.75? (260 x 134 x 44.5 mm) |
