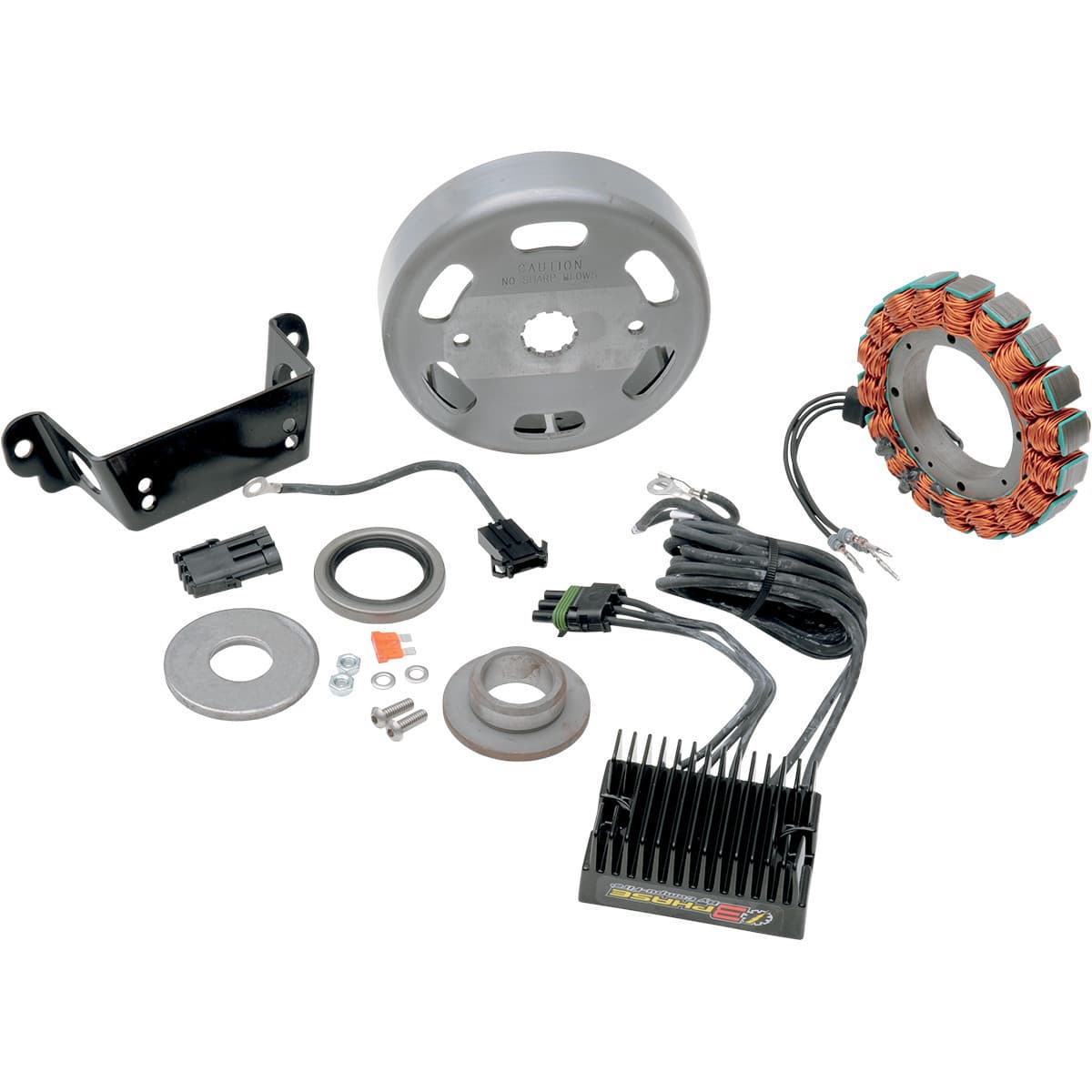

Compu-fire #55560 - Charging - System - 40A

Charging - System - 40A

Features

• Provide 25 A at idle and 40 A continuously above 2800 rpm
• Unique narrow rotor and stator fit into Softail/Dyna/FLT primary cases as used by most custom builders and the voltage regulator bolts on the stock location without any frame modifications
• Precision-balanced vented rotor keeps the stator cooler in closed primary systems to maintain maximum output under all high-current draw conditions
• Custom-designed flanged seal spacer provides maximum support for the rotor
• Voltage regulator output is calibrated to 14.25 V from idle on up
• Ideal for fuel-injected engines and bikes with overdrive-type transmissions
