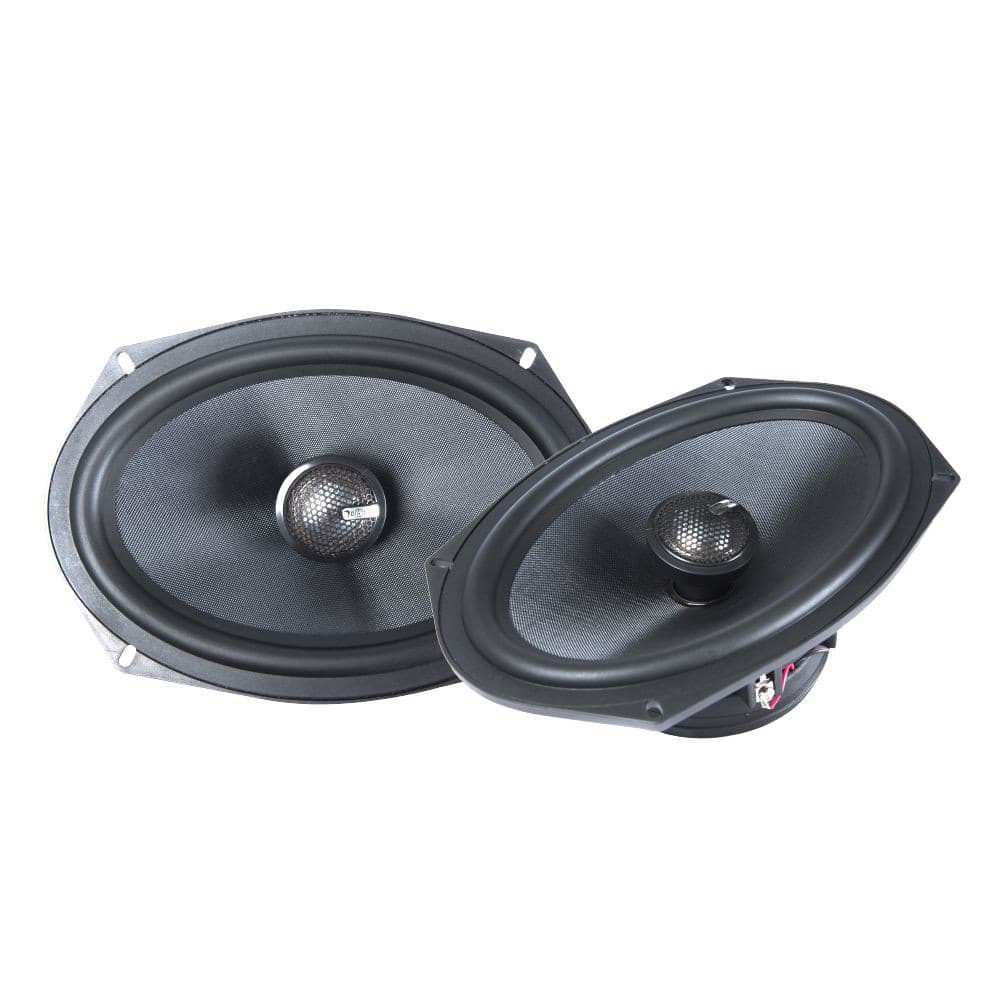

Diamond Audio DES692 - 6x9" Coaxial Speakers

DES692 - DES 6x9" Coaxial Speakers

Diamond Elite DES series speakers are the result of refining the previous generation of Diamond Elite speakers with further sonic improvement with pinpoint accuracy and greater attention to detail. The signature Diamond Audio smooth mid-bass response is still present due to the unique fiber weave cone that is supported with specially treated paper with upgraded yet subtle cosmetics that still makes a statement. Ultra-slim translucent crossovers showcase the premium low-tolerance components that deliver exceptional sound quality to these speaker systems. A non-resonant, composite ABS frame sets the foundation for its strength and stability for filtering unwanted noise. The new Diamond Elite DES speakers are the perfect choice in any amplified aftermarket system or just as an OEM upgrade! Composite foam core carbon fiber cone - Aluminum cone on DE65V convertible model - 25mm aluminum dome tweeter with Ferrofluid cooling - Composite ABS frame design - External 18dB per octave SQ matched crossover with Rear Acoustic Fill (RAF) on DE65C, DE65V models & DE69C - Klippel? DA optimized motor and suspension symmetry

Features:

• 75W RMS
• Mounting Diameter: 8.46 x 5.79 ? / 215 x 147mm
• Mounting Depth: 2.75 ? / 70mm
• Composite foam core carbon fiber cone
• 25mm aluminum dome tweeter with Ferrofluid cooling
• Composite ABS frame design
• External 18dB/octave SQ matched crossover with RAF (rear acoustic fill) output

Nominal Impedance (ohms)	N/A
Max Power Rating	150 Watt
Frequency Response	60 - 20KHz
Sensitivity (1W/1M)	84dB
Total Diameter	9.20" X 6.40" (233.9 x162.8mm)
Mounting Diameter (inch/mm)	8.46" x 5.79" (215 x 147.1mm)
Mounting Depth	2.75" (70mm)
Magnet Diameter (E)	4.21"(106.4mm)
Screw Hole Diameter	6.58" x 4.71'' (167.2 x 119.7mm)
