Product image
Diamond Audio

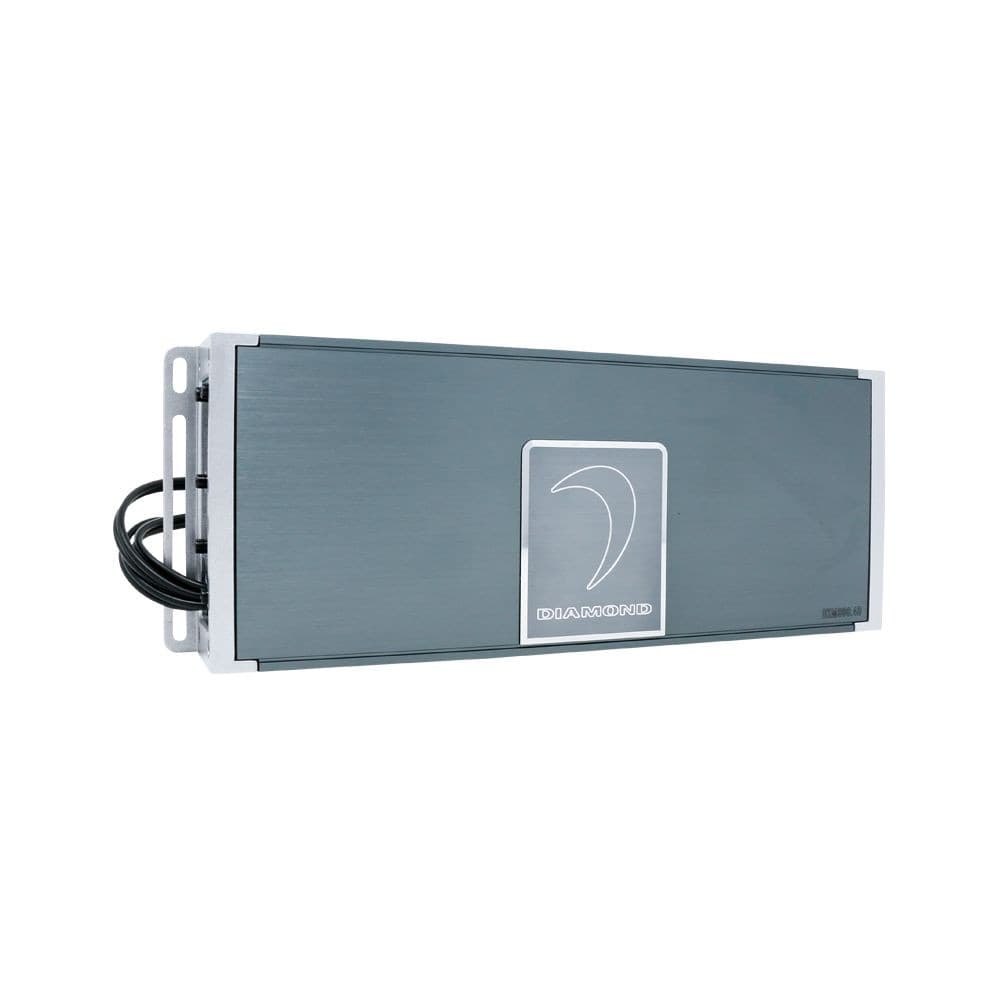

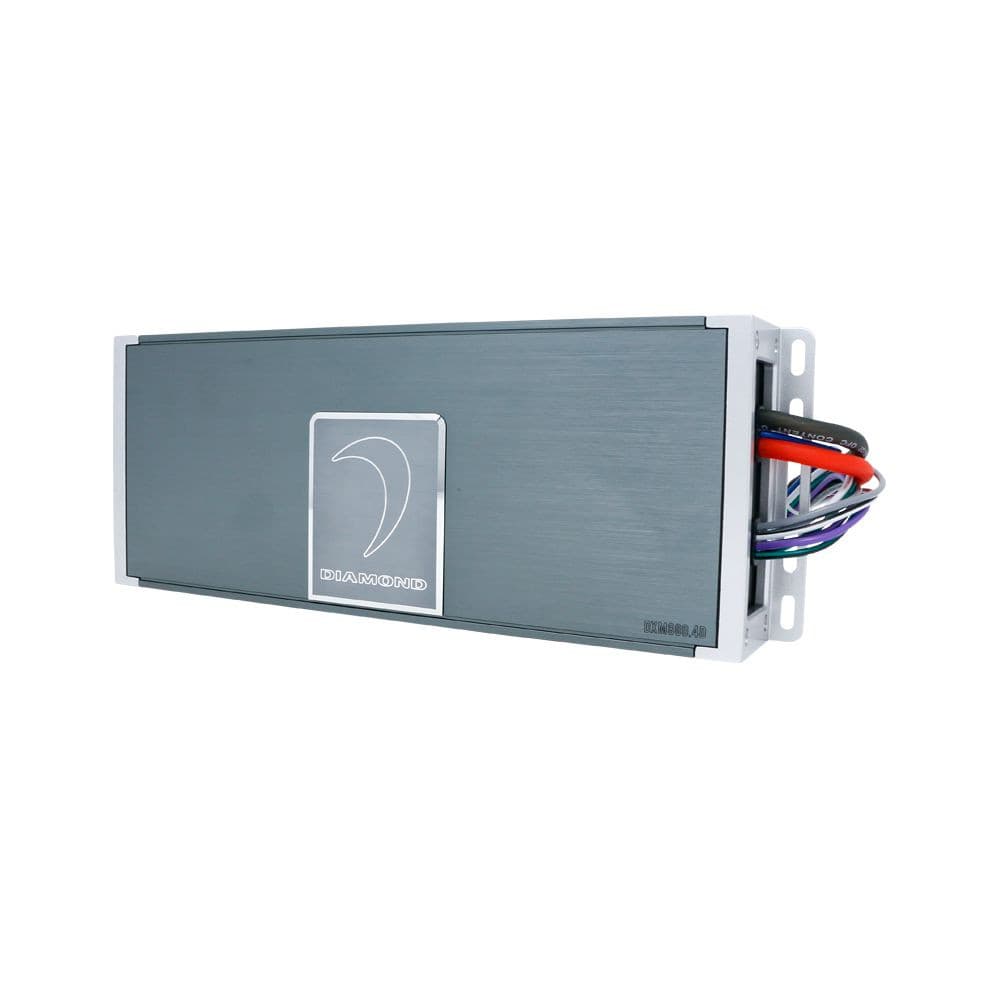

Diamond Audio DXM800.4D - DXM 4-Channel 800W RMS Full Range Class D Waterproof Amplifier

Part #: DXM800.4D
Ships direct from supplier

Item ships direct from supplier when available. Some items will be in stock and ship immediately, and others will have a lead time. Please contact us for more information. You will receive a lead time confirmation upon placing an order.

From $649.99
Diamond Audio DXM800.4D - DXM 4-Channel 800W RMS Full Range Class D Waterproof Amplifier—
$649.99

Fits These Vehicles

Shipping & Returns

Description

DXM800.4D - DXM 4-Channel Full Range Class D Waterproof Amplifier

IPX67 RATED Waterproof multi-layer circuit boards for marine applications - Balanced differential inputs for noise-free operation regardless of the source - Full-range digital Class D technology with Direct FET power MOSFET output stage - 12dB per octave adjustable crossovers and phase control for system tuning. Selectable 3 option Auto Turn-On Mode circuit designed to work with ANY OEM head-unit, simplifies installation.

Features:

  • 200W x 4CH @ 2? / 125W x 4CH @ 4? / 400W x 2CH @ 4? Bridged RMS Power Output
  • Input Sensitivity: 0.2-10 Volt
  • Crossover Filter : 40-400Hz, 12dB Per Octave Slope
  • Frequency Response: 10-33KHz
  • Selectable X-Over: LPF / FULL / HPF
  • Selectable 2CH / 4CH Input Modes
  • Dimensions: 11.76? x 4.33? x 1.73? / 298.6 x 110 x 44.0 mm

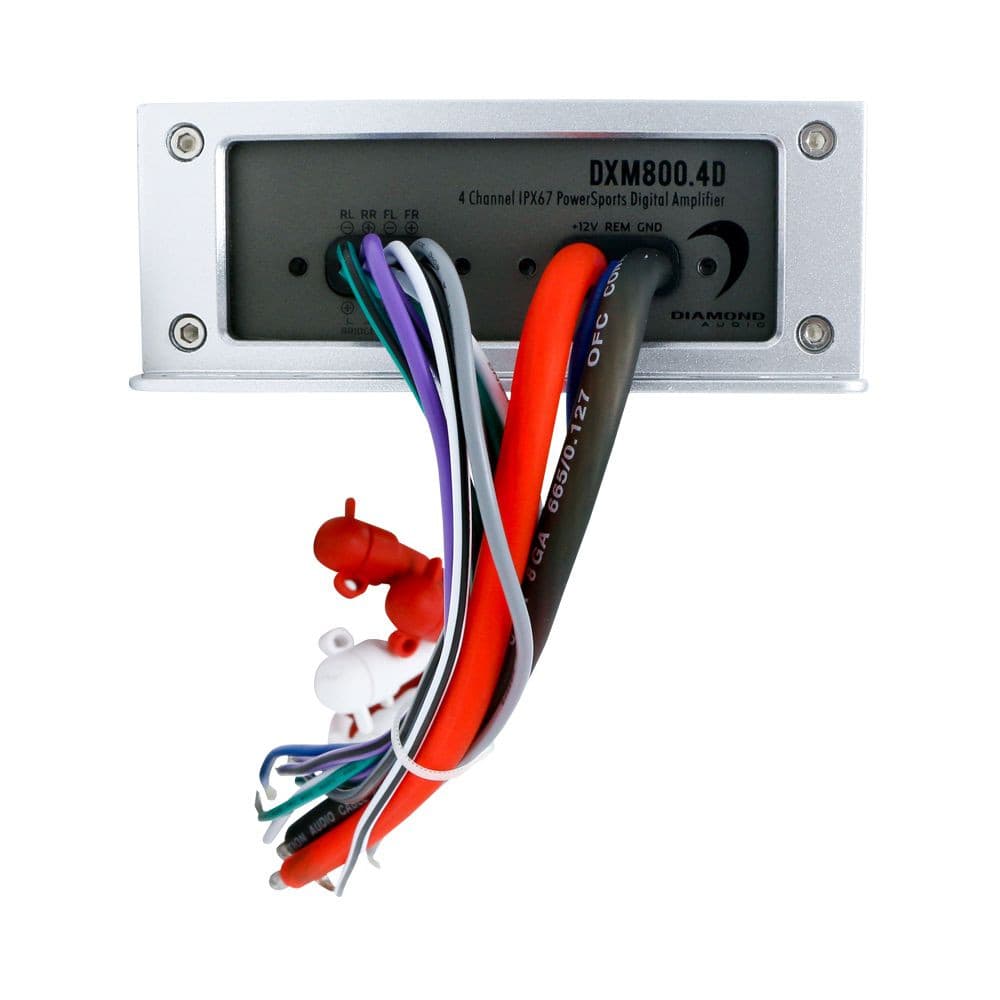

  • RCA Input & Line-Out, Speaker,Power Supply Harness Kits Included
