Diamond Audio

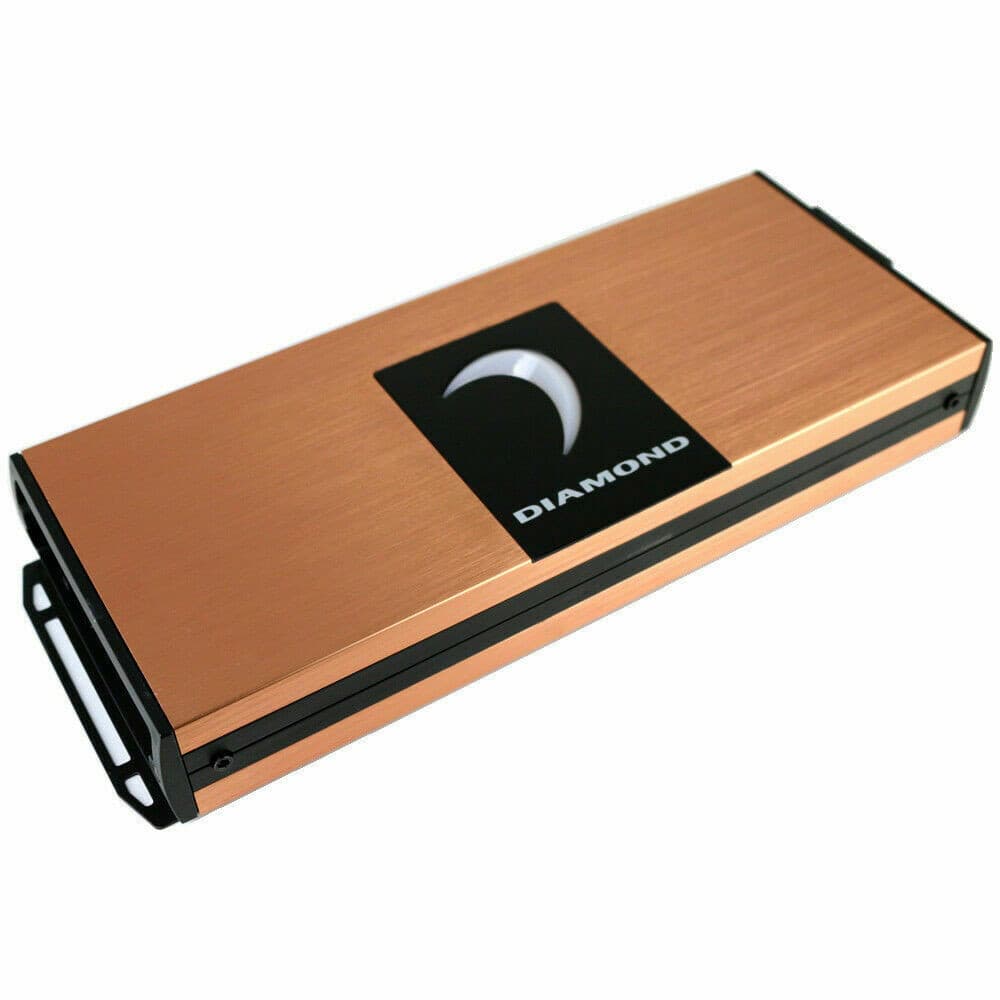

Diamond Audio MICRO5V2 - MICRO 5-Channel 950 Watt Class D Amplifier

Part #: MICRO5V2
Ships direct from supplier

Item ships direct from supplier when available. Some items will be in stock and ship immediately, and others will have a lead time. Please contact us for more information. You will receive a lead time confirmation upon placing an order.

From $599.99
Diamond Audio MICRO5V2 - MICRO 5-Channel 950 Watt Class D Amplifier—
$599.99

Fits These Vehicles

Shipping & Returns

Description

MICRO5V2 - MICRO 5-Channel Full Range Class D Amplifier

  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4 layer Glass PC Board
  • ICAD circuit provides superior overload protection
  • Frequency response 20 Hz ? 30kHz

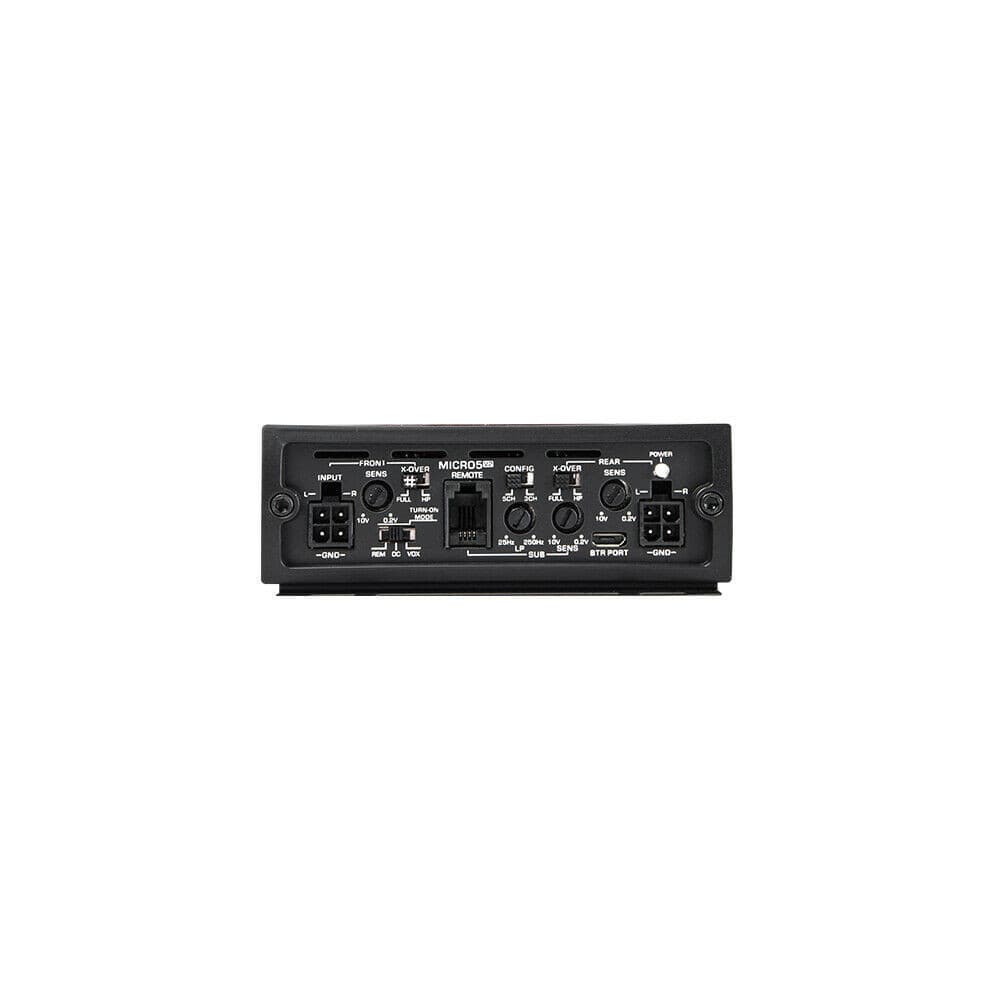

  • Variable 12db crossovers
  • Bridgeable / 2ch-4ch switch control
  • BTR (BlueTooth Receiver enabled)
  • MICRO Bass boost +12DB @45Hz

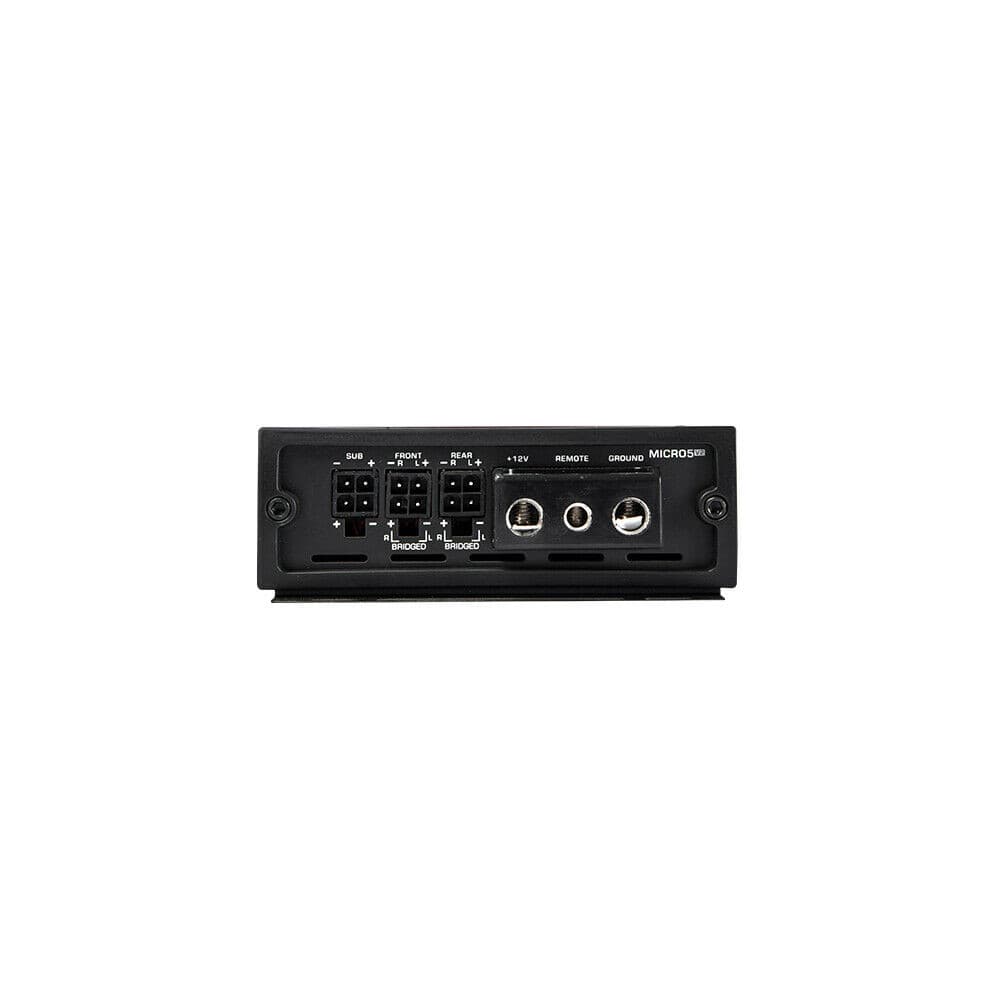

  • Premium 8 and 4 gauge power connections
  • Multi channels / Mono channel
RMS Power (2?) 150 W X 4/350 W X 1 RMS Power (4?)80 W X 4/200 W X1 RMS Bridge (mono 4?)300 W X 2/200 W X 1 Types 5-Channel Input Sensitivity Low 200mV ? 10.0V Input Sensitivity High N/A Power Supply Full PWM Idle Current (0.7A) Output Impedance 0.018? Damping Factor (50Hz@4?) >70 Bandwidth (-3dB) 10Hz-35Hz FUSE Ratings - ATC 60A Dimension - Length x Width x Height - Inches(mm)10.65" x 4.0" x 1.46"(270.5 x 103 x 37.2 mm)
