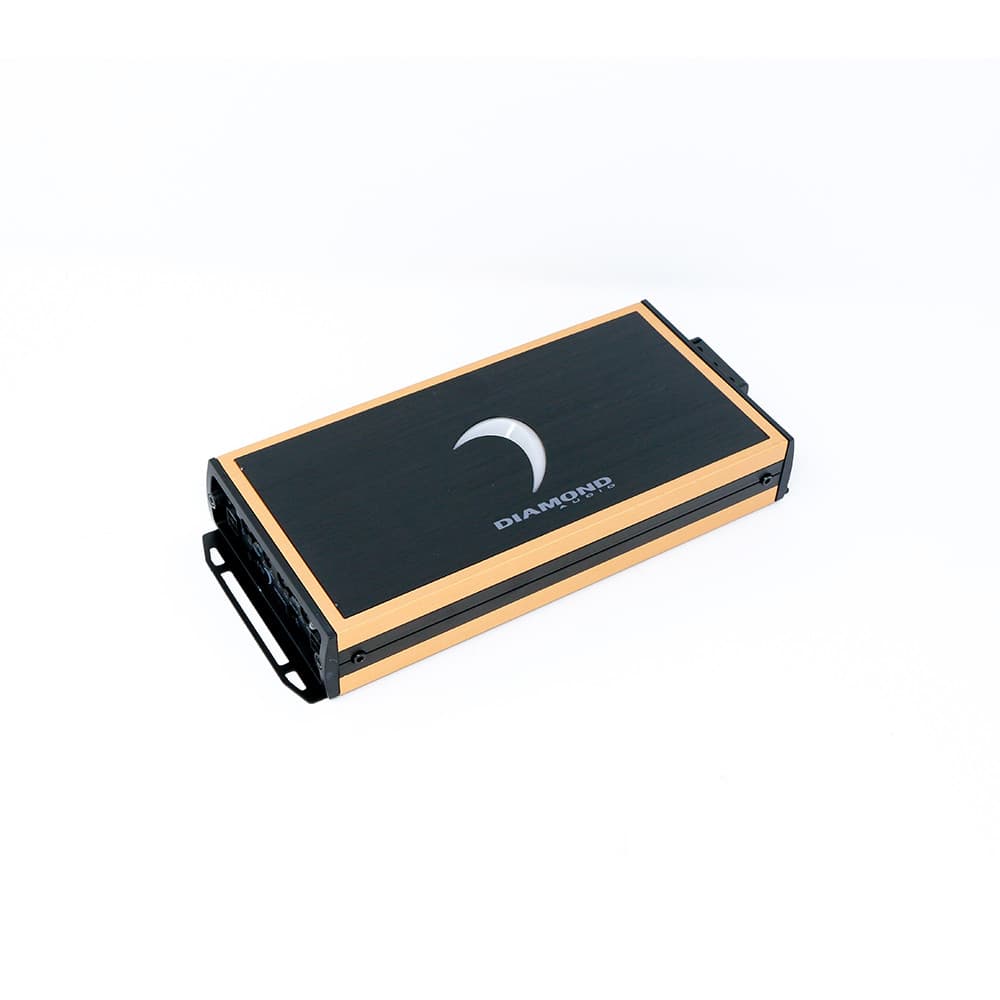

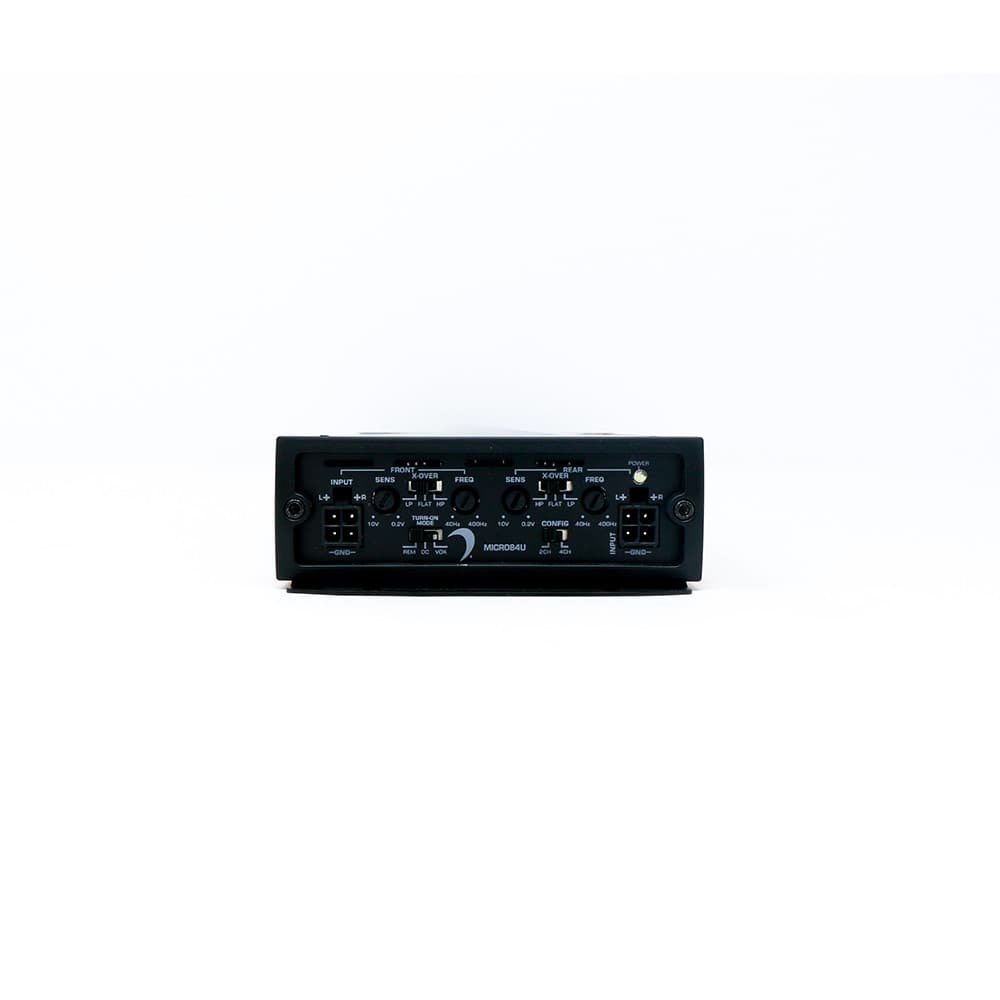

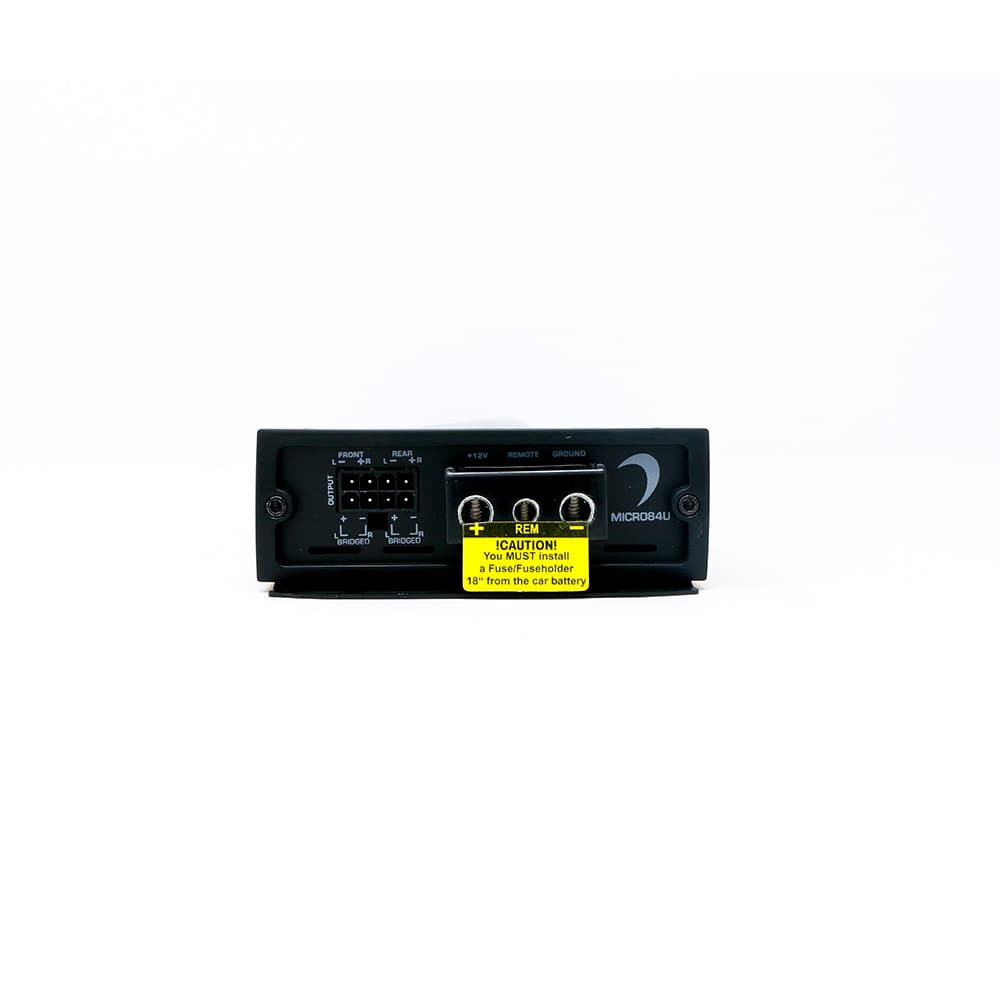

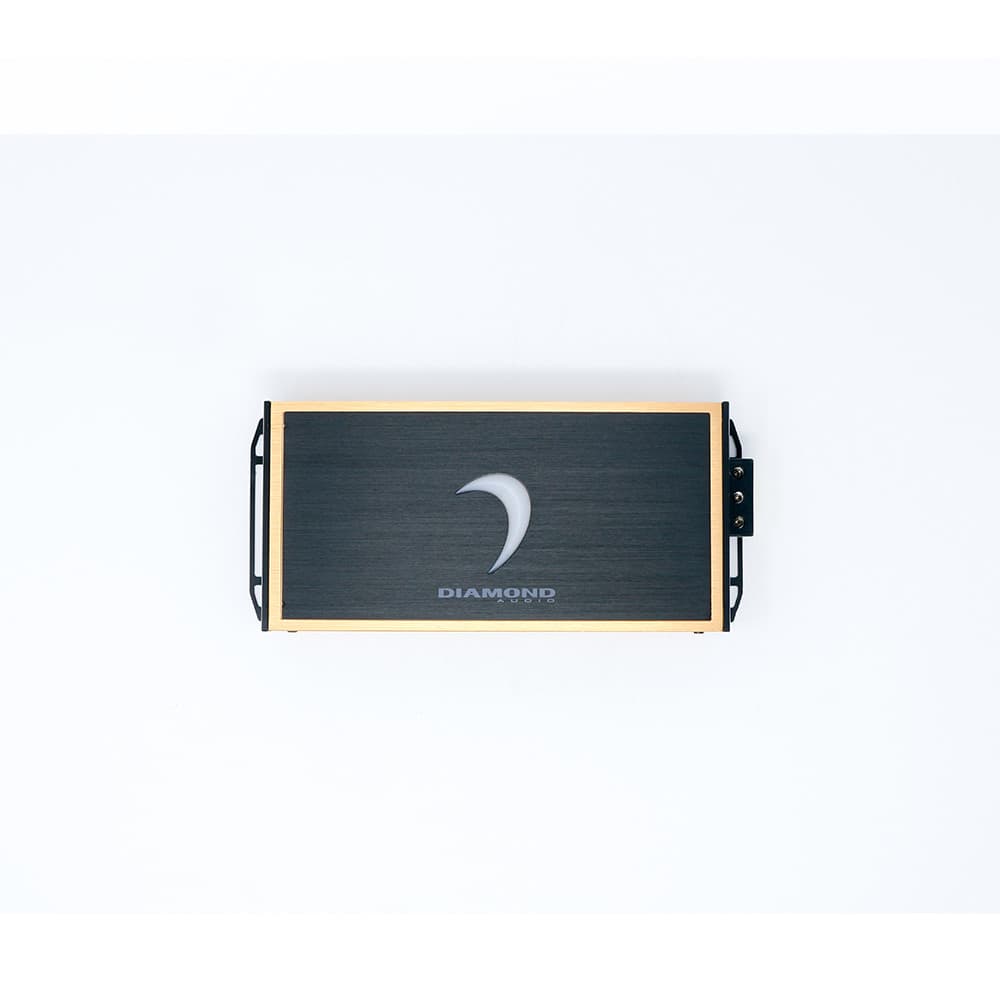

Diamond Audio MICRO84U - 4-Channel 660 Watt Class D Amplifier
Part #: MICRO84U
Ships direct from supplier
Item ships direct from supplier when available. Some items will be in stock and ship immediately, and others will have a lead time. Please contact us for more information. You will receive a lead time confirmation upon placing an order.
From $499.99
Diamond Audio MICRO84U - 4-Channel 660 Watt Class D Amplifier—
$499.99
Fits These Vehicles
Fits These Vehicles
Shipping & Returns
Shipping & Returns
Description
- Full Range Class D IR Chipset
- DirectFET Power Mosfet Output Stage
- SMD Technology on 4 layer Glass PC Board
- Conformal Coated PCB assembly for added water resistance
- ICAD circuit provides superior overload protection
- Frequency response 10 Hz ? 30kHz (Mono Block 10 Hz ? 350Hz)
- Variable 12db crossovers
- MICRO Bass boost +12DB @45HZ
- Premium 8 gauge power connections
- Multi channels / Mono channel
| RMS Power (2 ?) | 150 W RMS |
| RMS Power (4 ?) | 80 W X 1 |
| Bridged (mono 4 ?) | 300 W X 2 |
| Topology | Full Range Class D |
| Power Supply | Full PWM |
| Power Supply Threshold | 10.0DVC ? 17.0DVC |
| Idle Current | (0.7A) |
| THD 4 (1KHz @4?) | 0.5% |
| S-N Ratio (A-weighted @ 1W) | -85dBA |
| S-N Ratio (A-weighted @ 1W) | -101.1dBA |
| Input Sensitivity ? Low Input Level | 200mV ? 10V |
| Input Sensitivity ? High Input Level | N/A |
| Input Impedance ? Low Input Level | 20 K? |
| Impedance ? High Input Level | 20 K? |
| Output Impedance | 0.018? |
| Damping Factor (50Hz @ 4?) | >70 |
| Bandwidth (-3dB) | 10Hz-30kHz |
| Crossover (-12 dB/ Oct) ? Variable High Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) ? Variable Low Pass | 40Hz-400Hz |
| Crossover (-12 dB/ Oct) ? Variable Sub-Sonic | N/A |
| Fuse Rating (ATC) | 40A |
| Dimentions- Length x Width x Height (inches) | 9.0? x 4.06? x 1.52? |
| Dimentions- Length x Width x Height (mm) | 228.6 x 103 x 38.6 mm |
