Diamond Audio
Diamond Audio MS69CX - 6x9" 2-WAY High Output Coaxsub Speakers
Part #: MS69CX
Ships direct from supplier
Item ships direct from supplier when available. Some items will be in stock and ship immediately, and others will have a lead time. Please contact us for more information. You will receive a lead time confirmation upon placing an order.
From $439.99
Diamond Audio MS69CX - 6x9" 2-WAY High Output Coaxsub Speakers—
$439.99
Fits These Vehicles
Fits These Vehicles
Shipping & Returns
Shipping & Returns
Description
- 6 X 9 2-Way High Power MotorSport CoaXSub
- Manufactured to IPx65 Marine Grade Compliant Specifications
- 1? High Output Titanium Dome Tweeter
- UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
- 12dB Bessel Crossover Network
- Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
- T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling
- High-Temperature Cast Aluminum Basket
Specifications
| Nominal Diameter ? inch (mm) | 6?9 (152.4?228.6mm) |
| Description | 2-Way Concentric |
| Nominal Impedance (Ohms) | 4? |
| Frequency Response (Hz) | 45-23kHz |
| Kapton Voice Coil Diameter ? inch (mm) | 1.4 (35.5) |
| Power Handling ? Watts (RMS/Peak) | 125/500 |
| Fs ? Free Air Resonance (Hz) | 46Hz |
| Qts | 0.783 |
| Vas ? cu. ft. (Liter) | 0.159 (4.5) |
| Sensitivity (1W/1M) | 90.5dB |
| Sensitivity (2.83V/1M) | 93.5dB |
| Xmax ? Inch (mm) | 0.16 (4) |

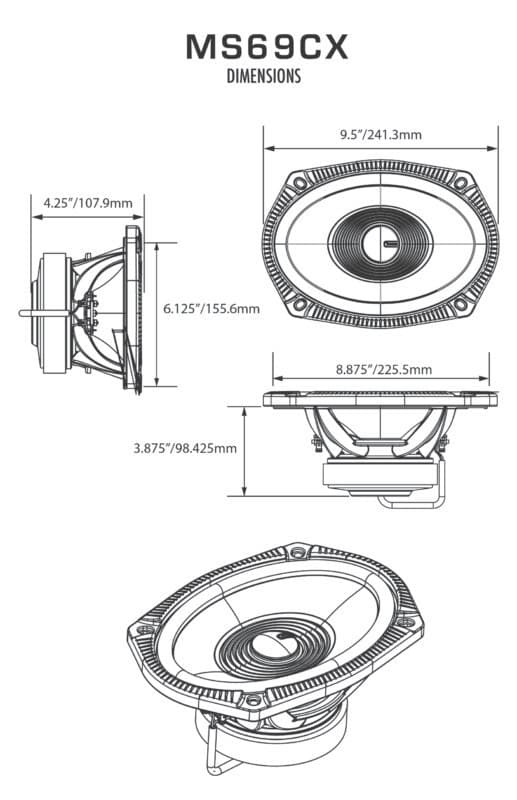

| Mounting Diameter | 8.875? (225.5mm) x 6.125? (155.6mm) |
| Mounting Depth | 3.875? (98.425mm) |
| Grille | YES |
