Diamond Audio

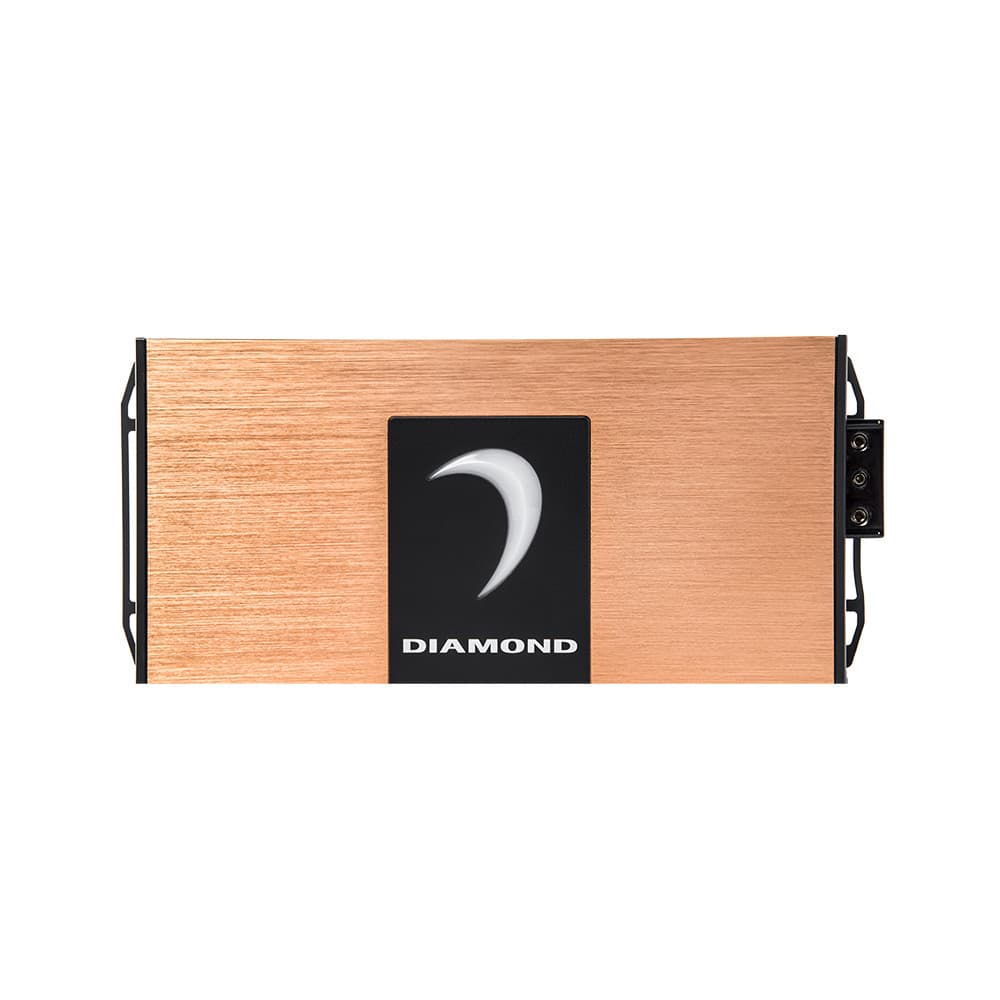

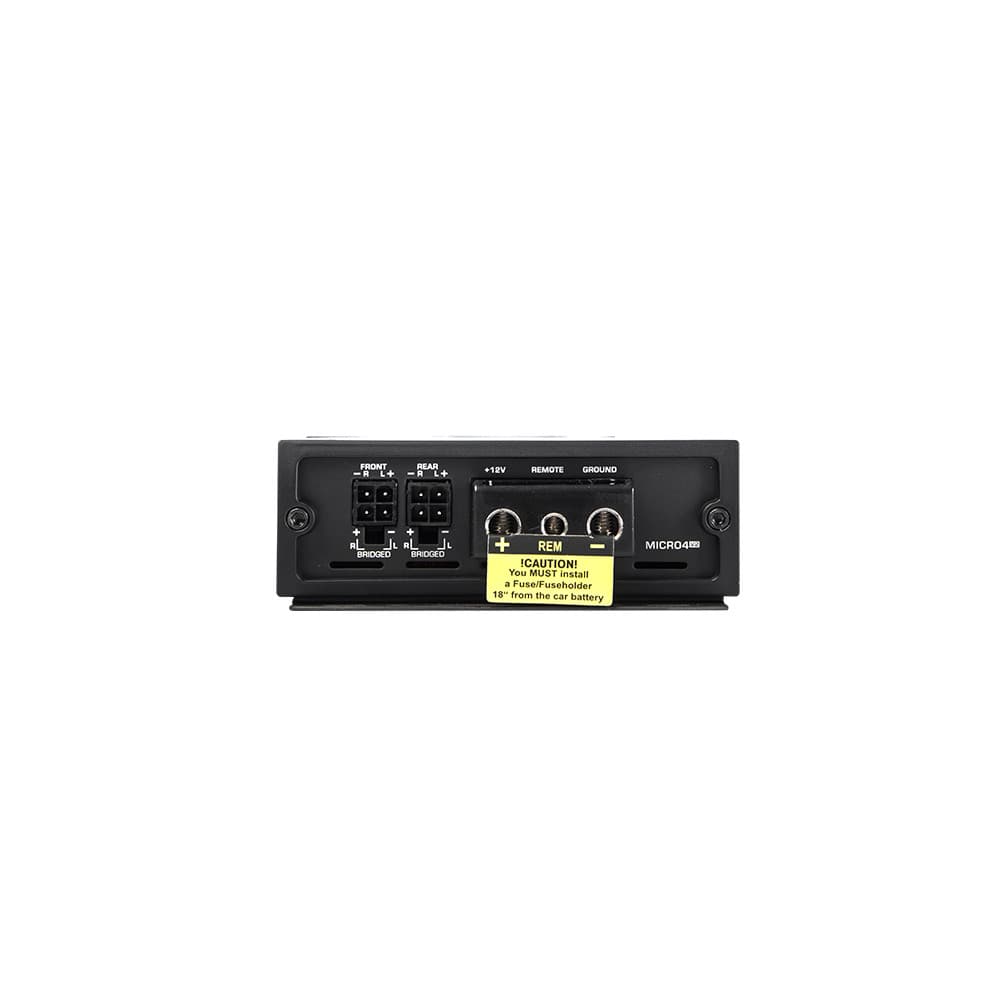

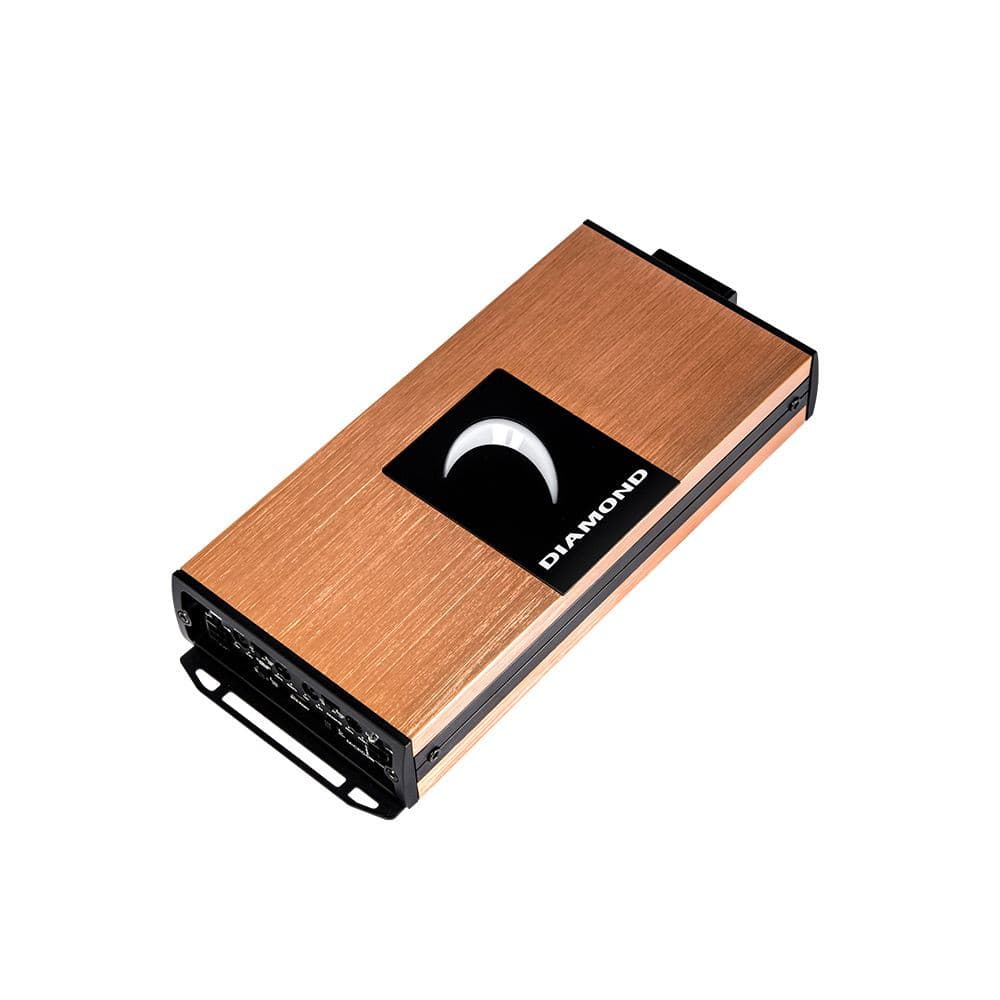

Diamond Audio - Diamond MICRO4V2 - MICRO 4-Channel 600 Watt Class D Amplifier

Part #: MICRO4V2
Ships direct from supplier

Item ships direct from supplier when available. Some items will be in stock and ship immediately, and others will have a lead time. Please contact us for more information. You will receive a lead time confirmation upon placing an order.

From $399.99
Diamond Audio - Diamond MICRO4V2 - MICRO 4-Channel 600 Watt Class D Amplifier—
$399.99

Fits These Vehicles

Shipping & Returns

Description

  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4 layer Glass PC Board
  • ICAD circuit provides superior overload protection
  • Frequency response 20 Hz ? 30kHz
  • Variable 12db crossovers
  • Bridgeable / 2ch-4ch switch control
  • BTR (BlueTooth Receiver enabled)
  • MICRO Bass boost +12DB @45Hz
  • Premium 8 and 4 gauge power connections
  • Multi channels / Mono channel
RMS Power (2 ?) 150 W X 4
RMS Power (4 ?) 80 W X 4
Bridged (mono 4 ?) 300 W X 2
Topology Full Range Class D
Power Supply Full PWM
Power Supply Threshold 10.0DVC ? 17.0DVC
Idle Current (0.7A)
THD 4 (1KHz @4?) 0.5%
S-N Ratio (A-weighted @ 1W) -85dBA
S-N Ratio (A-weighted @ 1W) -101.1dBA
Input Sensitivity ? Low Input Level 200mV ? 10.0V
Input Sensitivity ? High Input Level N/A
Input Impedance ? Low Input Level 20 K?
Impedance ? High Input Level 20 K?
Output Impedance 0.018?
Damping Factor (50Hz @ 4?) >70
Bandwidth (-3dB) 10Hz-35Hz
Crossover (-12 dB/ Oct) ? Variable High Pass 40Hz-400Hz
Crossover (-12 dB/ Oct) ? Variable Low Pass 40Hz-400Hz
Crossover (-12 dB/ Oct) ? Variable Sub-Sonic N/A
Fuse Rating (ATC) 40A
Dimentions- Length x Width x Height (inches) 9.07? x 4.0? x 1.46?
Dimentions- Length x Width x Height (mm) 230.5 x 103 x 37.2 mm
