Diamond Audio

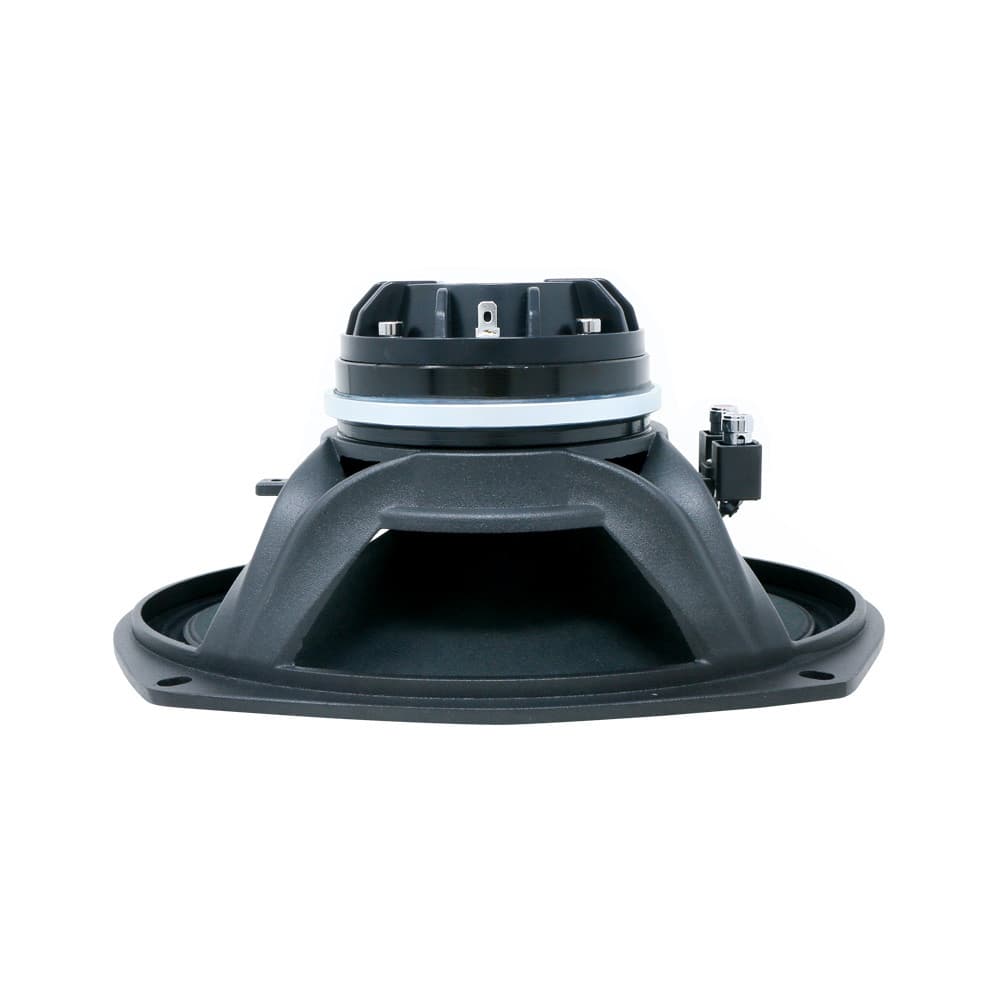

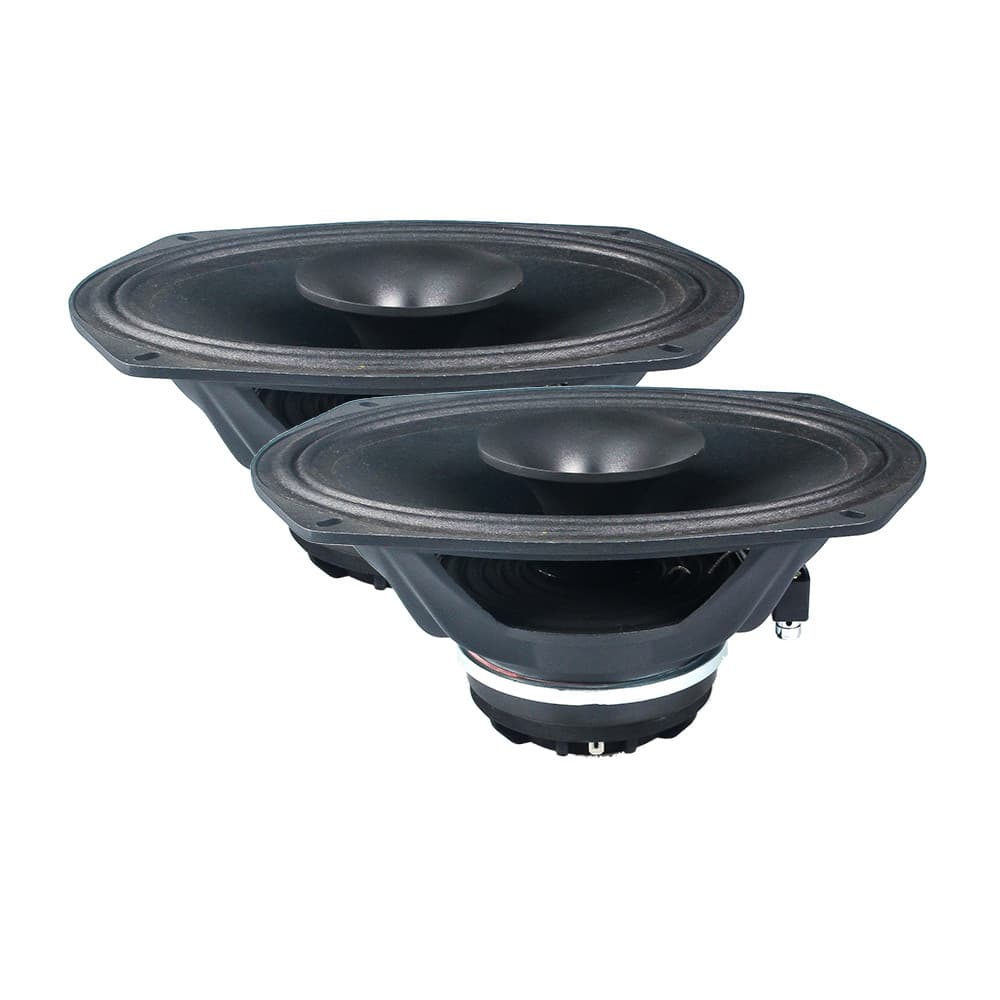

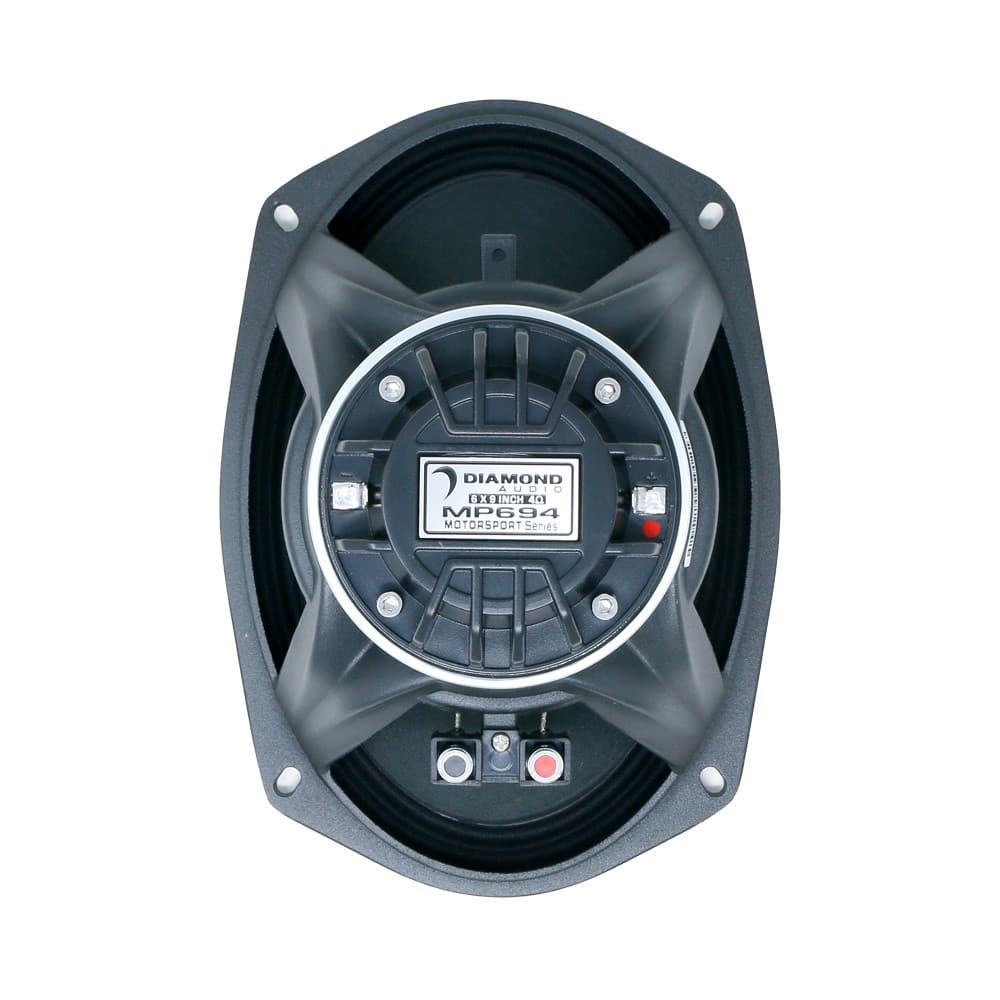

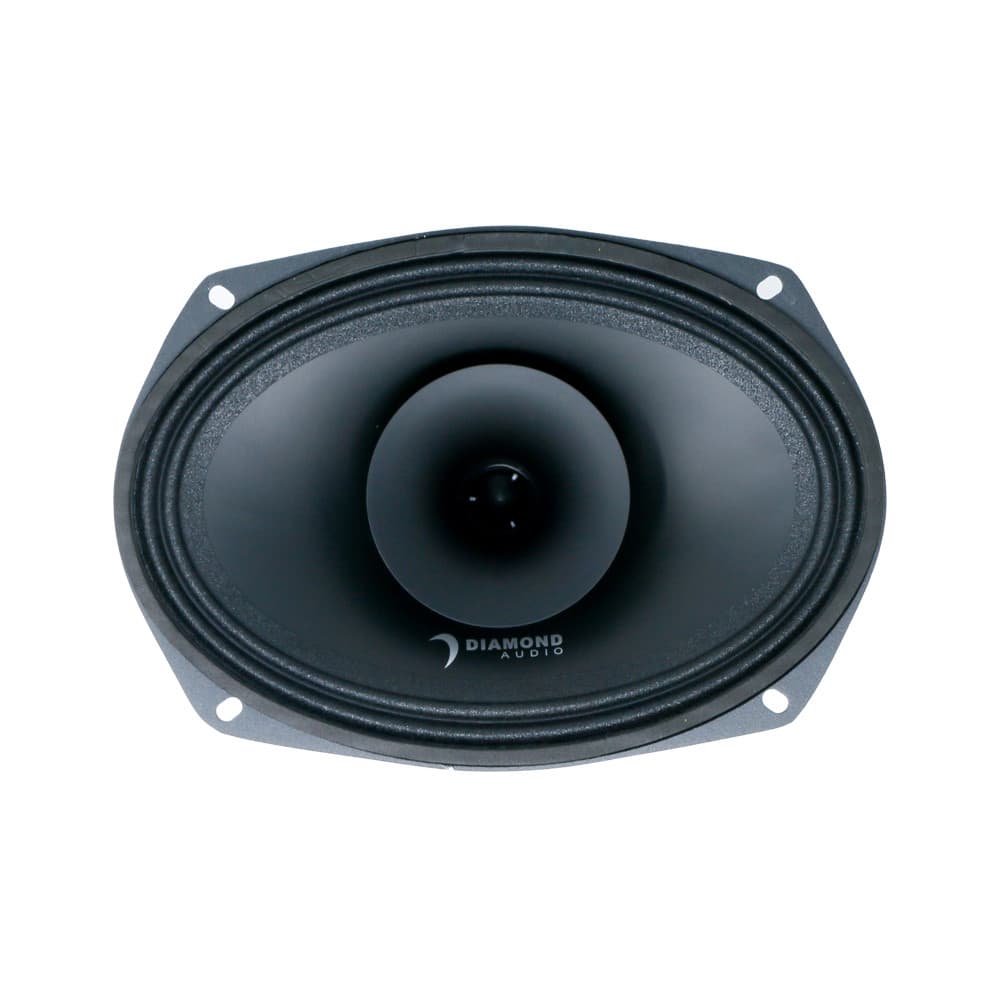

Diamond Audio - Diamond MP694 - 6 X 9" PRO Full-Range Co-Ax Horn Speaker

Part #: MP694
Ships direct from supplier

Item ships direct from supplier when available. Some items will be in stock and ship immediately, and others will have a lead time. Please contact us for more information. You will receive a lead time confirmation upon placing an order.

From $549.99
Diamond Audio - Diamond MP694 - 6 X 9" PRO Full-Range Co-Ax Horn Speaker—
$549.99

Fits These Vehicles

Shipping & Returns

Description

  • 150W RMS/300W MAX Power Handling
  • Ferrite Strontium High Temp Magnet structure
  • Heavy Duty Die-cast Aluminum Basket
  • 1.5? 4 Ohm ? Single Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
  • 1.0? 8 Ohm ? Single Layer High Temp Voice Coil for Tweeter
  • Advanced Voice Coil Heat Sink Design for Better Heat? ? Dissipation
  • Frequency Response: 80Hz -18Khz
  • High Sensitivity 101dB 1W/1M
  • 12dB Crossover
  • Mounting Depth: 3.99? / 101.3mm
  • Mounting Diameter: 8.86? x 5.98? / 225 x 152mm
SPL (dB-MidBass) 95.6
SPL (dB-Tweeter) 107
Re(?) 3.2
Qms 9.42
Qes 0.43
Qts 0.42
Fs(Hz) 82.6
Vas(L) 18.2
Cms(mm/N) 0.25
Mms(g) 15.1
Sd(m2) 229.7
BL(T*M) 7.6
Xmax(mm) 1.0
Pwr(W) NOM/MAX 150/**300
Total Diameter 9.33X6.57 (237X167) in. (mm)
Mounting Diameter 8.86X5.98 (225X152) in. (mm)
Mounting Depth 3.99 (101.3) in. (mm)
Total Depth 4.26 (108.3) in. (mm)
Magnet Diameter 3.94 (100) in. (mm)
