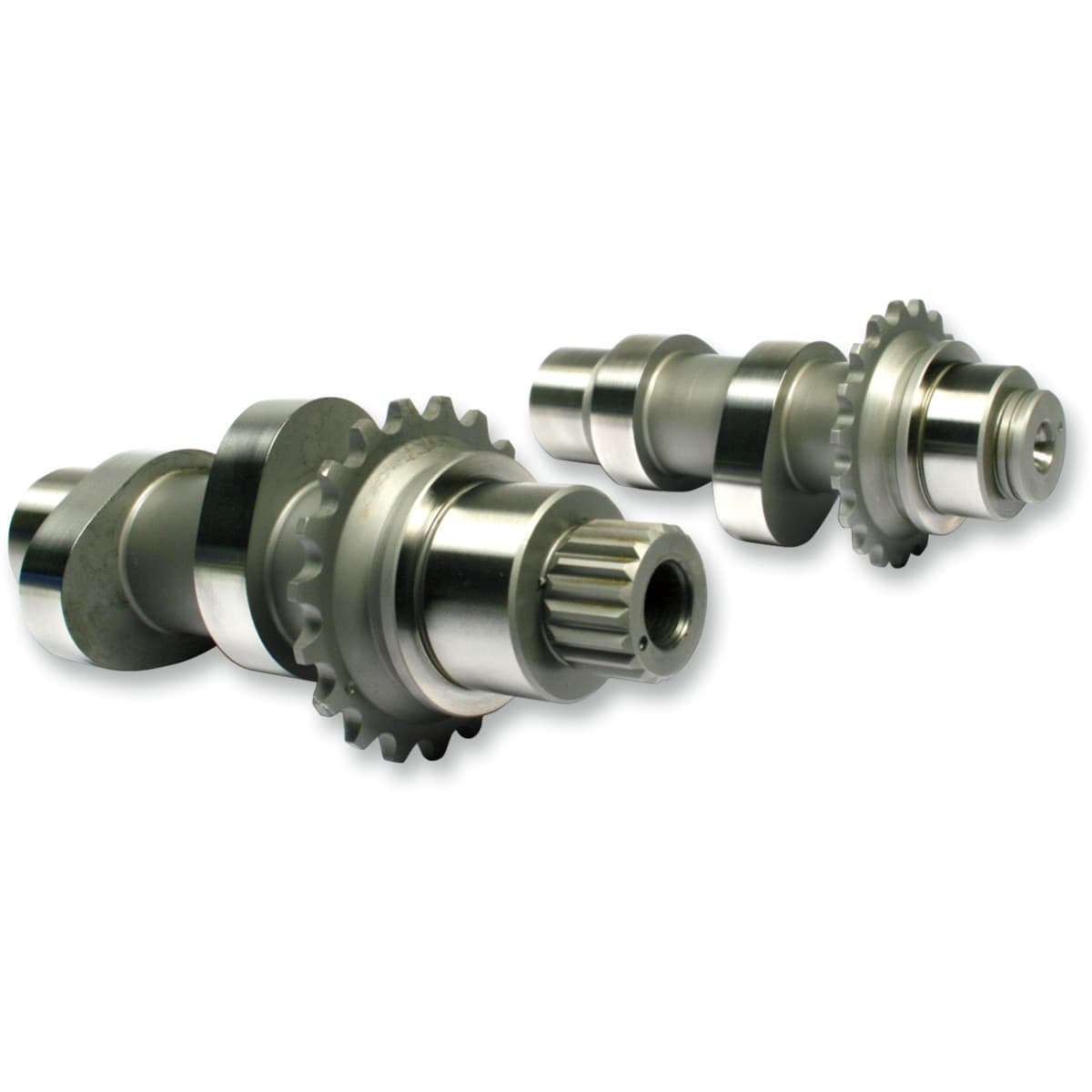

Feuling Parts #1019 - Cam - 594 Series - Conversion Chain Drive - Twin Cam '99-'06 (except '06 Dyna)

'99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals allowing the use of the '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system.

Conversion camshafts do not fit in a conversion camplate, conversion camshafts use the '07-'17 camplate/oil pump.

'99-'01 engines with Magneti Marelli ignition requires use of Andrews sprocket in replacement of HD 34 tooth sprocket #25728-06 in order to install the new style outer cam chain.

Recommended to use with Feuling® oiling stsytem.

Required factory hydraulic tensioners, outer cam & crank sprockets and thrust washers (sold separately).

Features

• Fierce performing camshaft for an array of engine sizes, large displacement 103", 110" and 124" engines looking for a superior torque band with excellent horsepower gains in heavy bikes (2200-6250 rpm)
• Smaller high-revving displacement 95" style engines in lighter bikes looking to twist the throttle and tap into some horsepower (2500-6800 RPM)
• Large displacements respond well to increased compression ratio and smaller displacements will require it
• 594 cams require high-performance valve springs, pushrods, lifters, carburetor or throttle body work, performance exhaust, intake and clutch
• Made in the USA

Specs
