Feuling

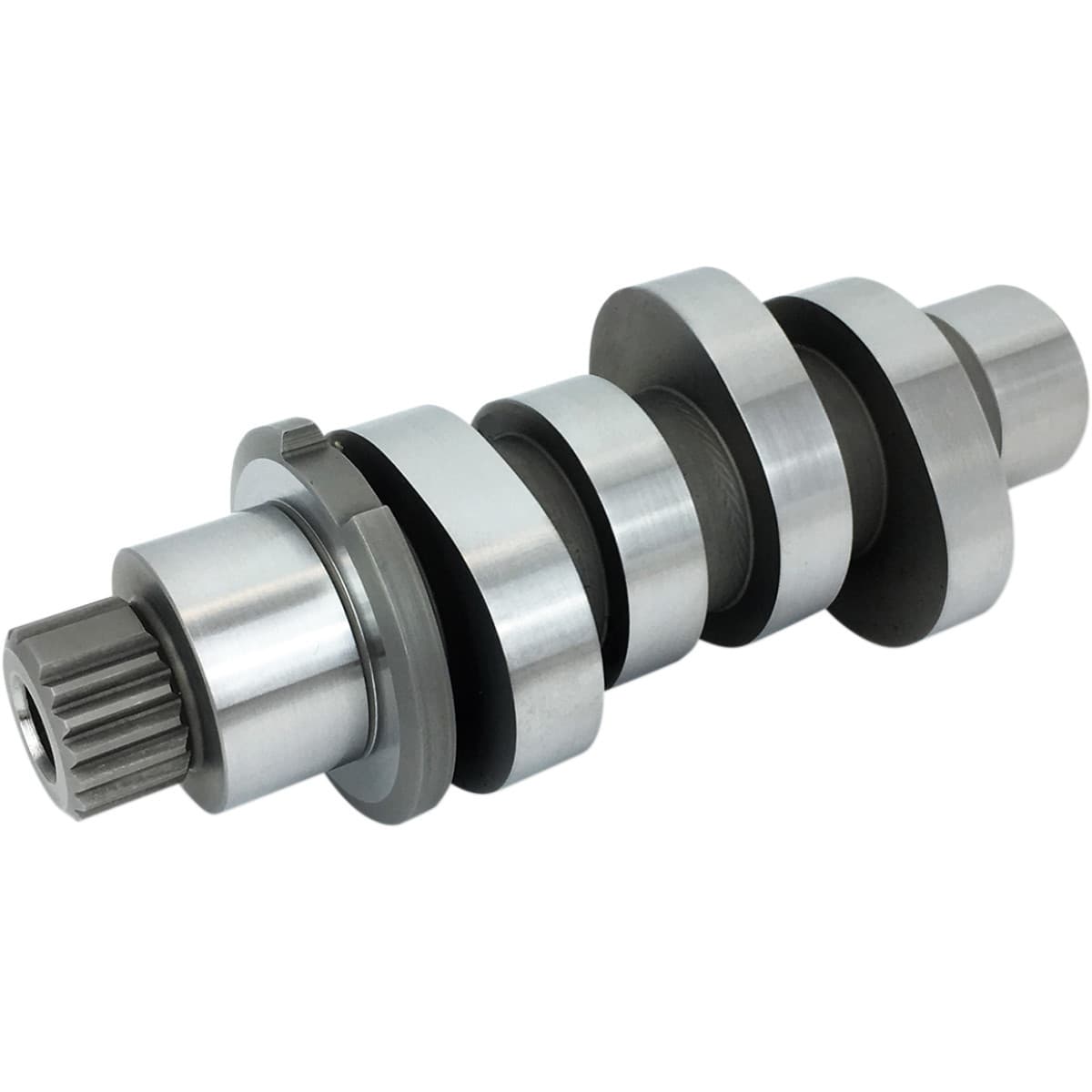

Feuling Parts #1348 - Cam - 592 Series - Chain Drive - M8

Part #: 0925-1265
From $296.96
Feuling Parts #1348 - Cam - 592 Series - Chain Drive - M8—
$296.96

Fits These Vehicles

Shipping & Returns

Description

Not for '23-'24 models with 121" VVT motors.

Features

  • Get serious with bore size, ported cylinder heads and throttle body
  • Rpm range 2,750-6350+
  • Overlap: 36
  • Made in the USA
  • High flow air cleaner and triple stepped exhaust pipe highly recommended
  • Feuling® recommends matching this cam with Feuling® Race Series oiling system.
  • High lift/high load valve springs and heavy duty pushrods are required.
  • Clearance must be checked when installing this cam.
  • Screamin' Eagle camplates #25400419 have been found to have clearance issues on high lift camshafts.

Specs

ApplicationExhaust
Exhaust Lift0.592"
Exhaust Open68°
ModelReaper
Exhaust Lobe Centerline116°
Intake Lift0.578"
UnitsEach
Intake Close34°
Intake Open20°
TypeChain
Exhaust Lift at TDC0.146"
Product NameCamshaft
Exhaust Close16°
Exhaust Duration264°
Intake Duration234°
Intake Lift at TDC0.182"
Grind592 Series
Intake Lobe Centerline97°
Riding StyleStreet
