Feuling

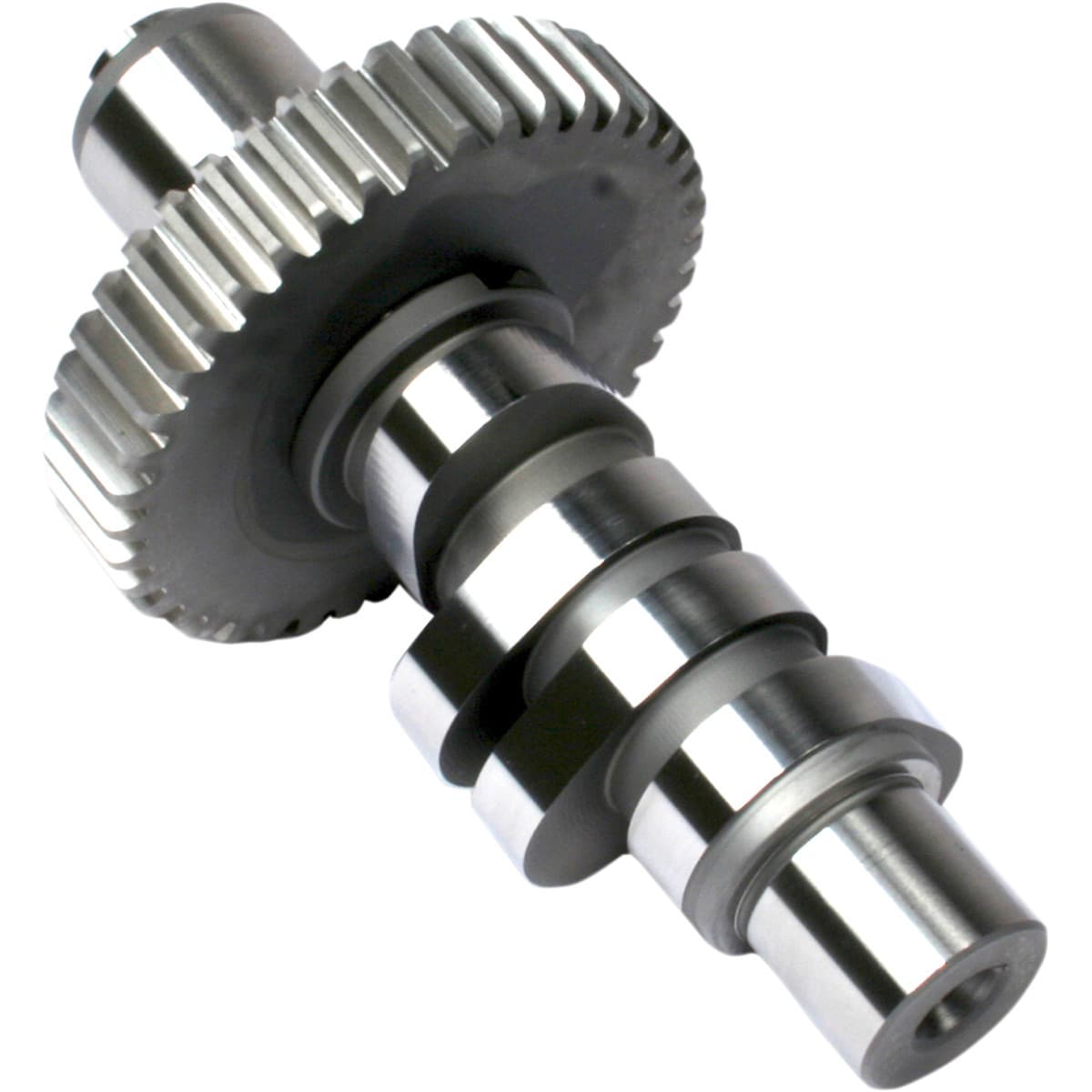

Feuling Parts #1391 - Camshaft - Reaper® EVO 543 Series - Evolution Big Twin '84-'99

Part #: 0925-1038
From $251.96
Feuling Parts #1391 - Camshaft - Reaper® EVO 543 Series - Evolution Big Twin '84-'99—
$251.96

Fits These Vehicles

Shipping & Returns

Description

Requires performance valve springs.

Performance lifters recommended but not required.

Will work with factory pushrods on engines with factory stack up; if deck height, cylinders or rocker boxes have been modified from stock then adjustable pushrods are required.

Increased compression, cylinder head work and performance exhaust recommended but not required for bottom end performance.

2200-5950 rpm power range.

Features

  • Offers more power than the 525 cams without sacrificing low end torque
  • Extremely smooth cam lobe layout maintains quiet valve train and produces the smoothest cruise power band available
  • Excellent bolt-in camshaft for stock to mid 96" and 103" engines and works well in 88" and 96" engines
  • Cam is easy starting, increases throttle response and fuel mileage
  • Responds well to increased compression ratio, performance exhaust and a high-flow air cleaner
  • 1900-6000 RPM power range
  • Performance valve springs are required on '99-'04 engines and performance pushrods and lifters are recommended but not required.
  • Made in the USA

Specs

ApplicationIntake
TypeGear
Intake Lift at TDC0.160"
Riding StyleStreet
UnitsEach
Exhaust Close12°
Intake Close43°
Intake Duration238°
Intake Open15°
Exhaust Lobe Centerline112°
Grind543 Series
Exhaust Duration248°
Exhaust Lift0.553"
Intake Lobe Centerline104°
ModelReaper
Exhaust Lift at TDC0.140"
Exhaust Open56°
Intake Lift0.543"
Product NameCamshaft
