High Lifter

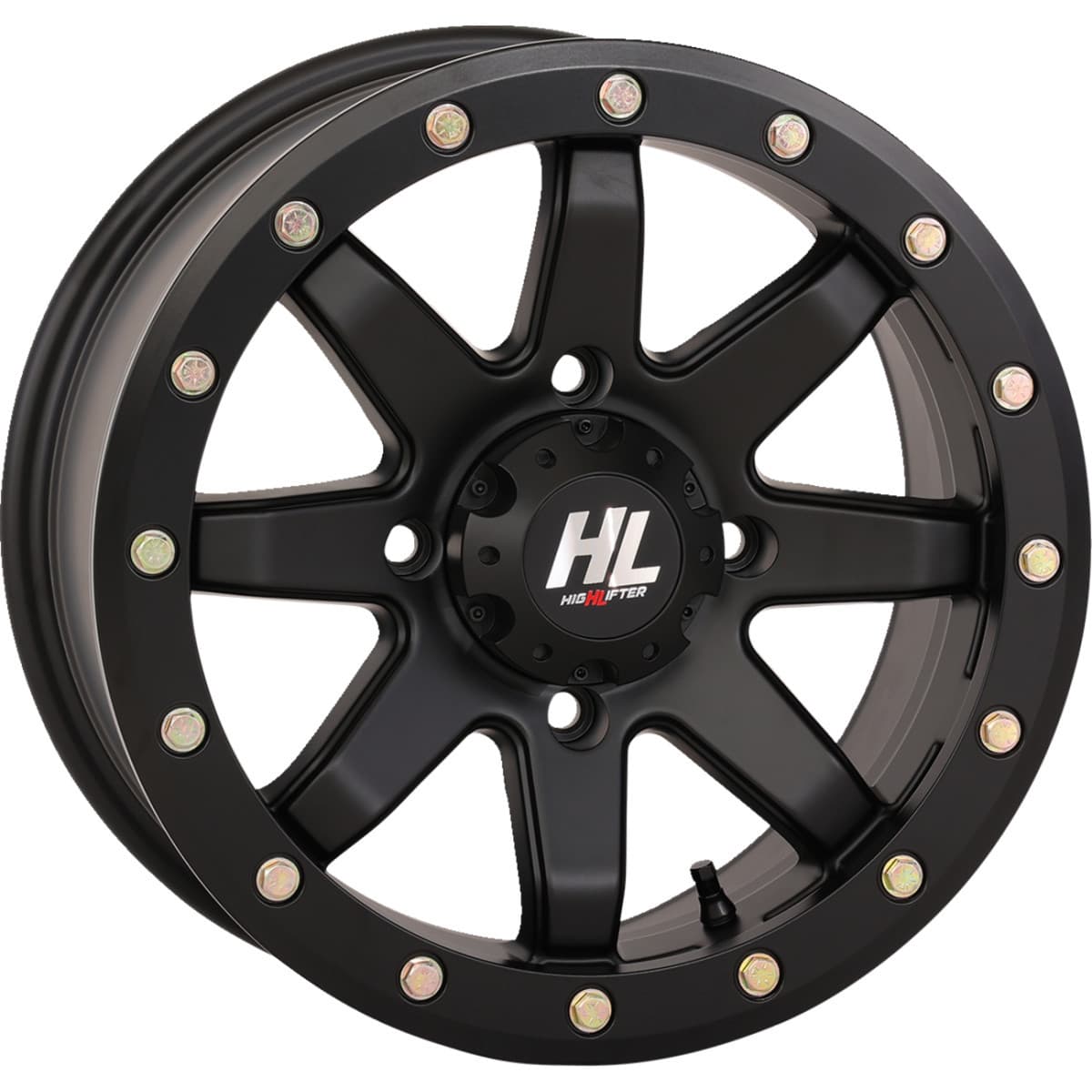

High Lifter #14HL09-1437 - Wheel - HL9 Beadlock - Front/Rear - Matte Black - 14x7 - 4/137 - 5+2 (+30 mm)

Part #: 0230-1252
From $260.95
High Lifter #14HL09-1437 - Wheel - HL9 Beadlock - Front/Rear - Matte Black - 14x7 - 4/137 - 5+2 (+30 mm)—
$260.95

Fits These Vehicles

Shipping & Returns

Description

Some models require specific lug nuts. Please check your model fitment.

Features

  • Factory-installed valve stem
  • 10 mm billet beadlock ring
  • 5/16" grade 8 hardware
  • Classic 8-spoke design
  • Bolt-in center cap
  • Lifetime structural warranty
  • The High Lifter Beadlock wheels include 4 “starter” bolts (silver) which need to be replaced once the standard bolts (gold) are attached.
  • Impact wrenches are not recommended at any point during installation of the beadlock ring due to the possibility of over- or under-tightening the bolts.
  • When mounting tires, using a 1/2" socket, torque all bolts to 15 ft/lb.

Specs

Beadlock Bolt Torque Spec15 lb/ft
Installed Valve Stem Diameter0.453"
Product NameWheel
Riding StyleUTV
Valve Stem InstalledTR-412
Wheel Offset5+2 (+30 mm)
FinishMatte
Installed Valve Stem MaterialRubber
Load Capacity1200 lb
Valve Stem Core Torque Spec2 lb/in - 5 lb/in
Color/FinishBlack
Installed Valve Stem Length0.875"
Rim Diameter14"
Rim Width7"
Base ColorBlack
MaterialAluminum
ModelHL9 Beadlock
TypeBeadlock
UnitsEach
Mounting PositionFront/Rear
Size14x7
Beadlock StyleHigh Lifter Universal
Bolt Hole Pattern4/137
