High Lifter

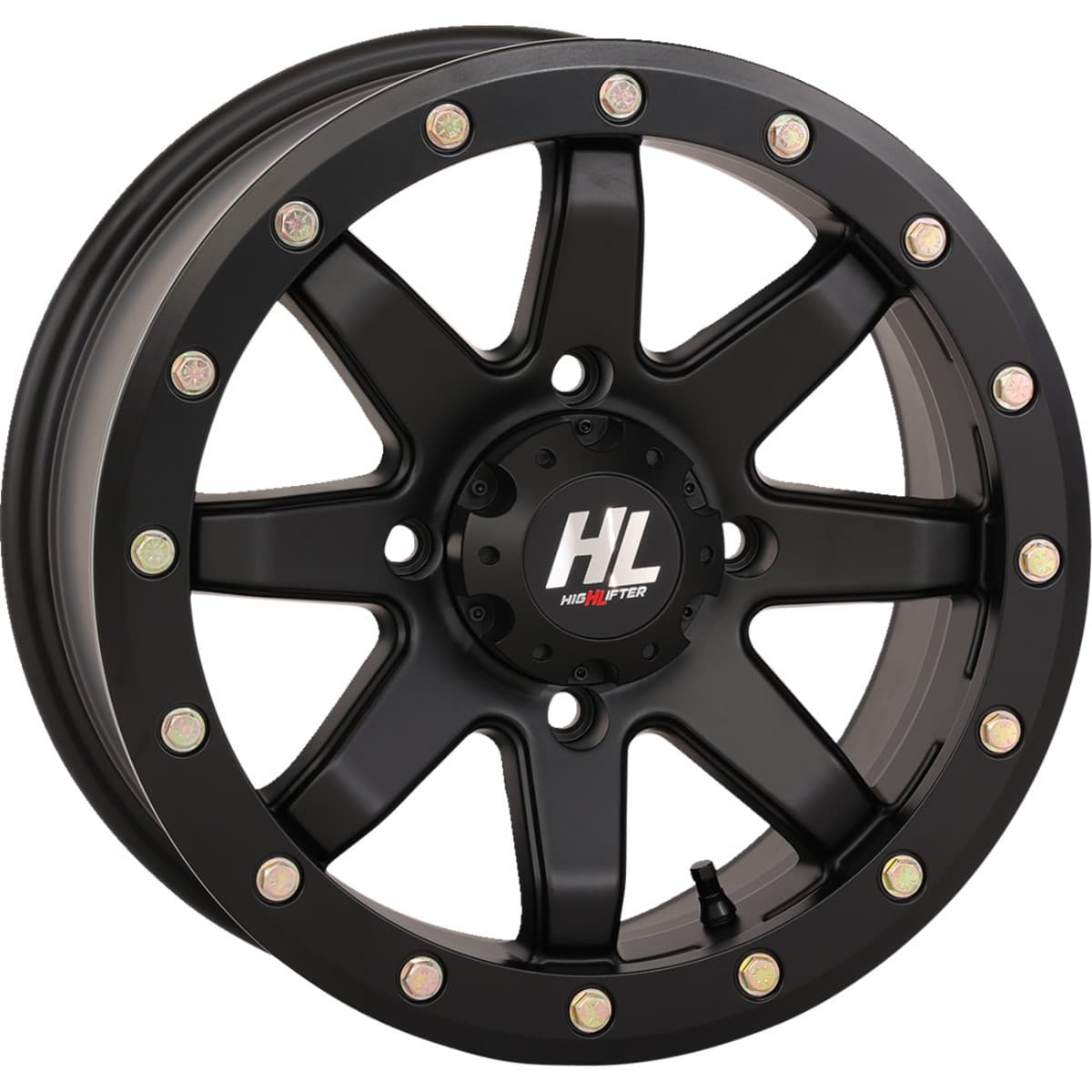

High Lifter #14HL09-1438 - Wheel - HL9 Beadlock - Front/Rear - Matte Black - 14x7 - 4/137 - 6+1 (+50 mm)

Part #: 0230-1253
From $260.95
High Lifter #14HL09-1438 - Wheel - HL9 Beadlock - Front/Rear - Matte Black - 14x7 - 4/137 - 6+1 (+50 mm)—
$260.95

Fits These Vehicles

Shipping & Returns

Description

Some models require specific lug nuts. Please check your model fitment.

Features

  • Factory-installed valve stem
  • 10 mm billet beadlock ring
  • 5/16" grade 8 hardware
  • Classic 8-spoke design
  • Bolt-in center cap
  • Lifetime structural warranty
  • The High Lifter Beadlock wheels include 4 “starter” bolts (silver) which need to be replaced once the standard bolts (gold) are attached.
  • Impact wrenches are not recommended at any point during installation of the beadlock ring due to the possibility of over- or under-tightening the bolts.
  • When mounting tires, using a 1/2" socket, torque all bolts to 15 ft/lb.

Specs

Beadlock Bolt Torque Spec15 lb/ft
Color/FinishBlack
Product NameWheel
Rim Diameter14"
Valve Stem InstalledTR-412
Wheel Offset6+1 (+50 mm)
Load Capacity544 kg
Installed Valve Stem Length0.875"
Installed Valve Stem MaterialRubber
Mounting PositionFront/Rear
Riding StyleUTV
Size14x7
FinishMatte
Beadlock StyleHigh Lifter Universal
Valve Stem Core Torque Spec2 lb/in - 5 lb/in
Base ColorBlack
ModelHL9 Beadlock
TypeBeadlock
UnitsEach
Bolt Hole Pattern4/137
Installed Valve Stem Diameter0.453"
MaterialAluminum
Rim Width7"
