High Lifter

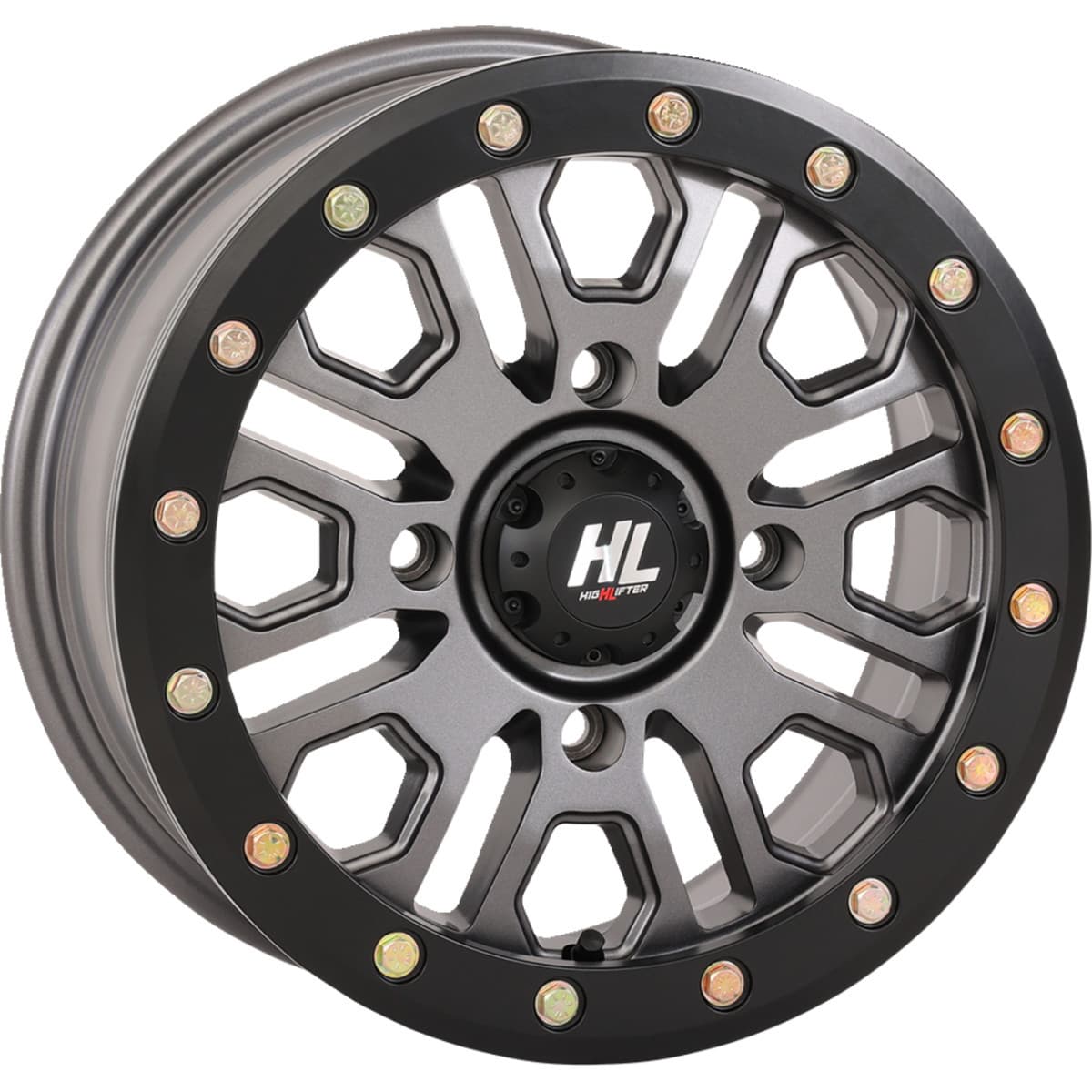

High Lifter #14HL23-1537 - Wheel - HL23 Beadlock - Front/Rear - Gun Metal Gray - 14x7 - 4/137 - 5+2 (+38 mm)

Part #: 0230-1302
From $274.95
High Lifter #14HL23-1537 - Wheel - HL23 Beadlock - Front/Rear - Gun Metal Gray - 14x7 - 4/137 - 5+2 (+38 mm)—
$274.95

Fits These Vehicles

Shipping & Returns

Description

Some models require specific lug nuts. Please check your model fitment.

Features

  • Unique meshed, split-spoke design
  • Factory-installed valve stem
  • 8 mm billet beadlock ring
  • 5/16" grade 8 hardware
  • Bolt-in center cap
  • Lifetime structural warranty
  • The High Lifter Beadlock wheels include 4 “starter” bolts (silver) which need to be replaced once the standard bolts (gold) are attached.
  • Impact wrenches are not recommended at any point during installation of the beadlock ring due to the possibility of over- or under-tightening the bolts.
  • When mounting tires, using a 1/2" socket, torque all bolts to 15 ft/lb.

Specs

Beadlock StyleHigh Lifter Universal
Bolt Hole Pattern4/137
Installed Valve Stem Diameter0.453"
Load Capacity544 kg (1200 lb)
MaterialAluminum
Size14x7
TypeBeadlock
Color/FinishGun Metal Gray
Riding StyleUTV
Rim Width7"
UnitsEach
ModelHL23 Beadlock
Mounting PositionFront/Rear
Product NameWheel
Installed Valve Stem Length0.875"
Installed Valve Stem MaterialRubber
Valve Stem InstalledTR-412
Base ColorGray
FinishMatte
Beadlock Bolt Torque Spec15 lb/ft
Rim Diameter14"
Valve Stem Core Torque Spec2 lb/in - 5 lb/in
Wheel Offset5+2 (+38 mm)
