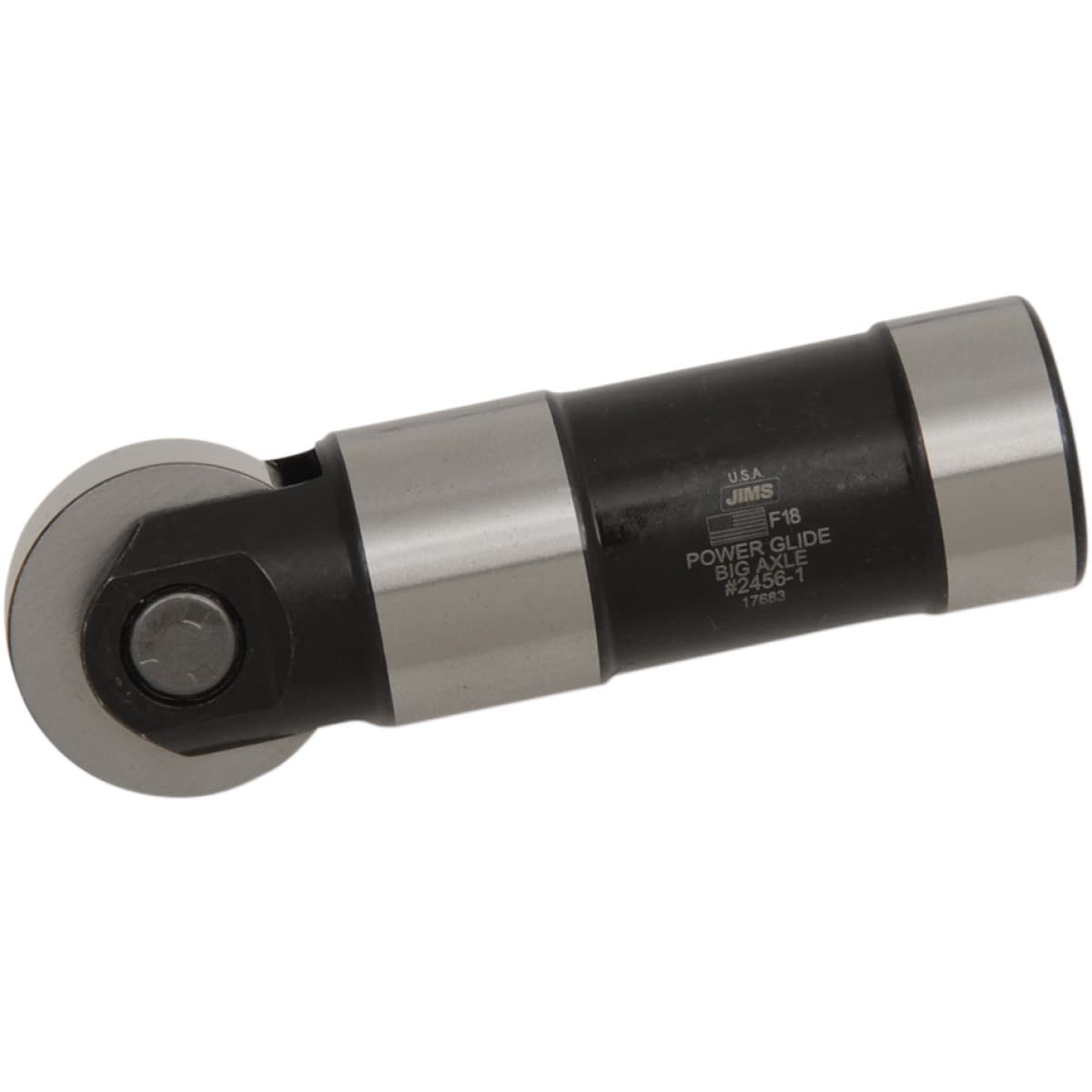

Jims #2456-1 - Large Axle Tappet - Evolution

Large Axle Tappet - Evolution

Features

• Micro-finish bore allows a running fit of .0002"
• Big Axle™ rollers are designed around three working parts
• The outer wheel/roller has a 27% greater wall size - less harmonic distortion for better tracking of cam lobe
• Pin bearings are decreased in size by 12%, which increases rpm for more precise tracking
• Axle size is increased 36% and doubles as the inner race, so the pin bearing and complete roller assembly now rotate around the axle instead of an inner race, eliminating all possible movement in and around the axle
• Made in the U.S.A.
