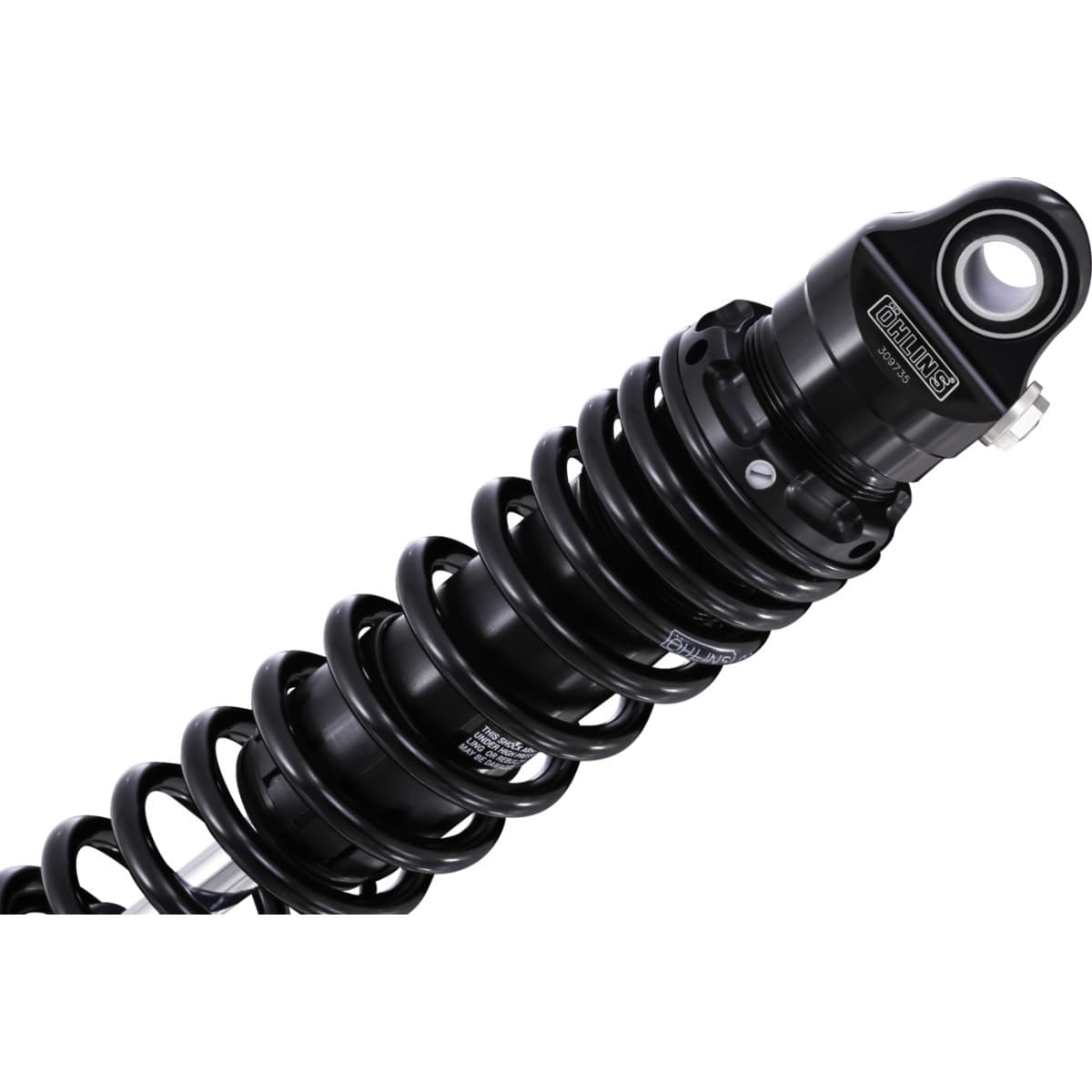

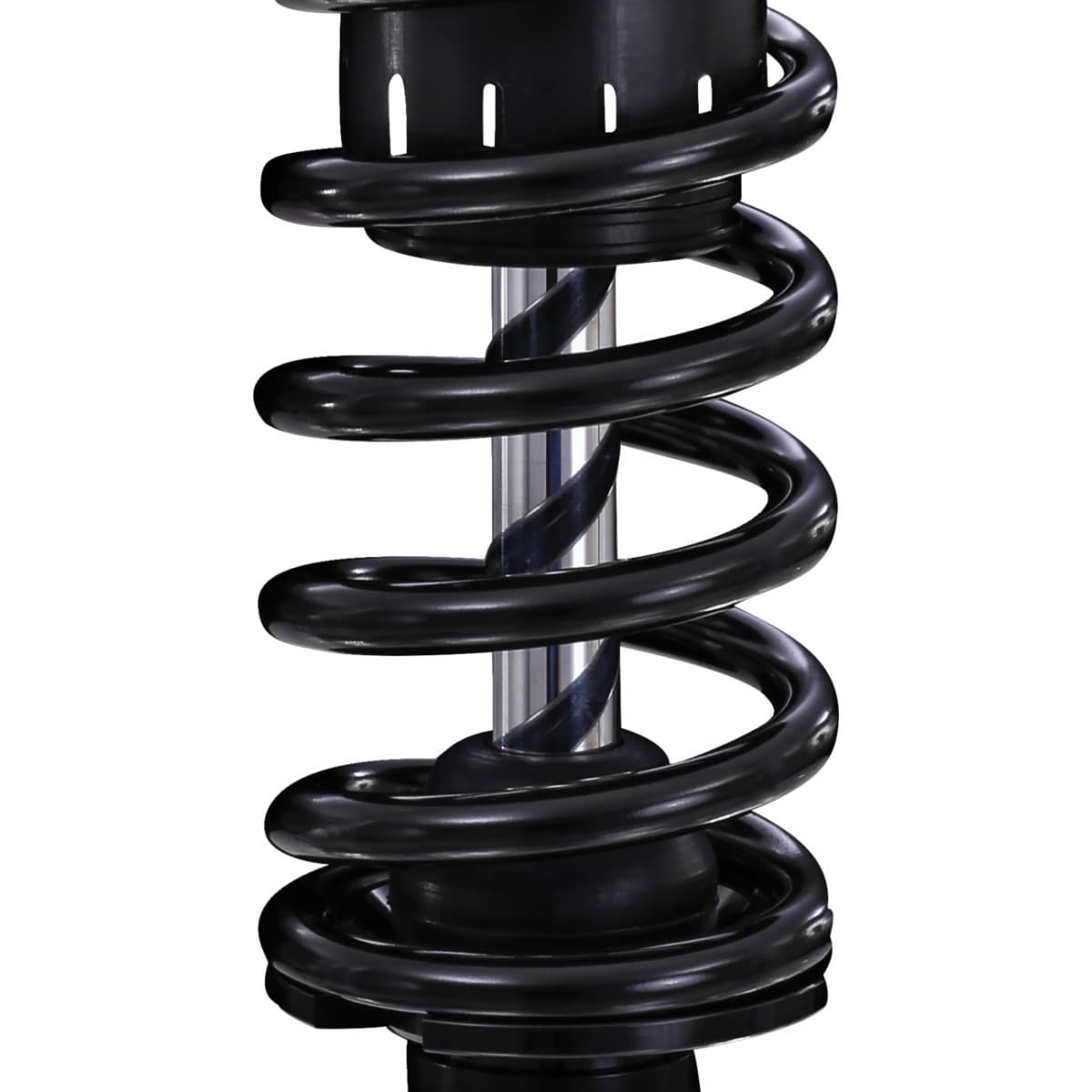

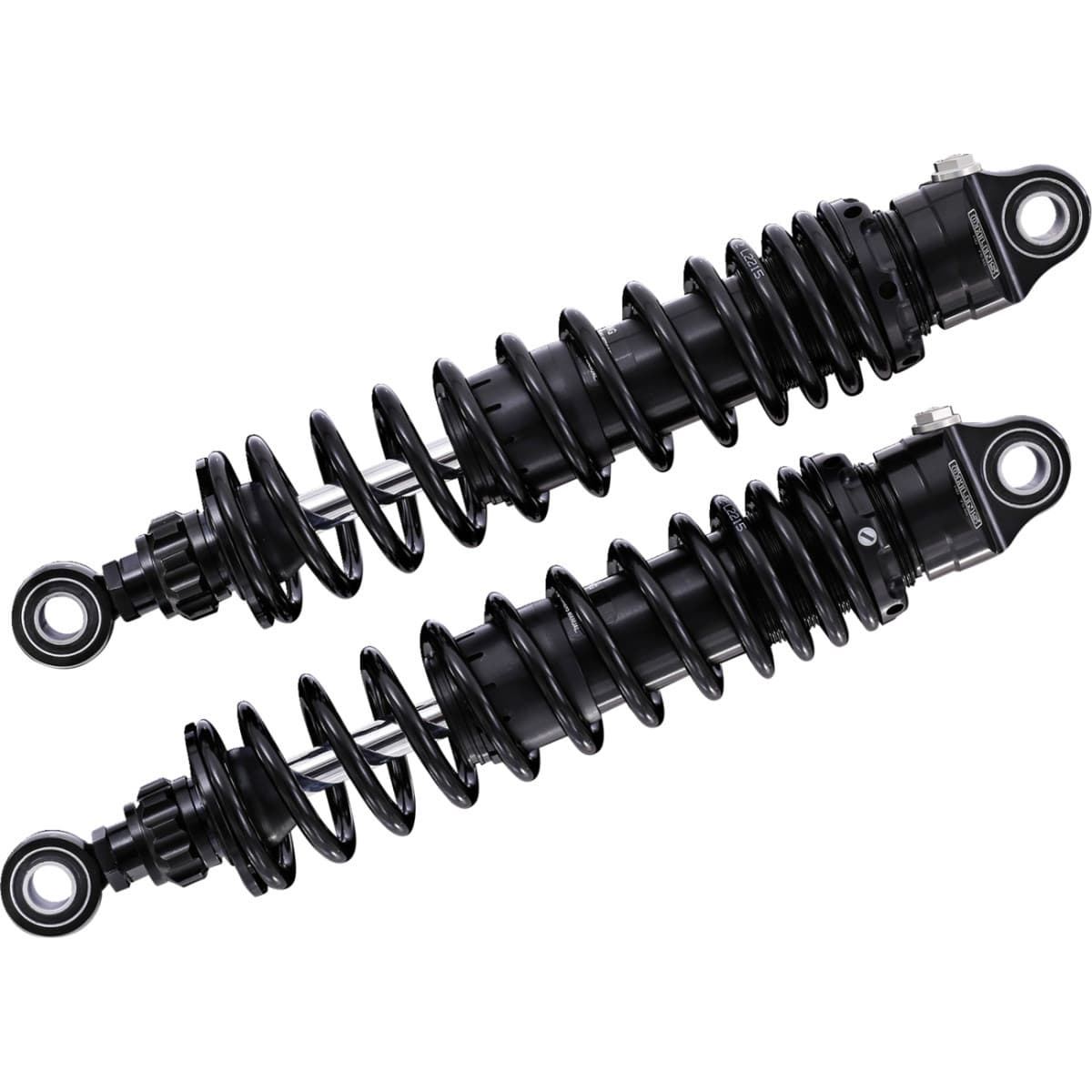

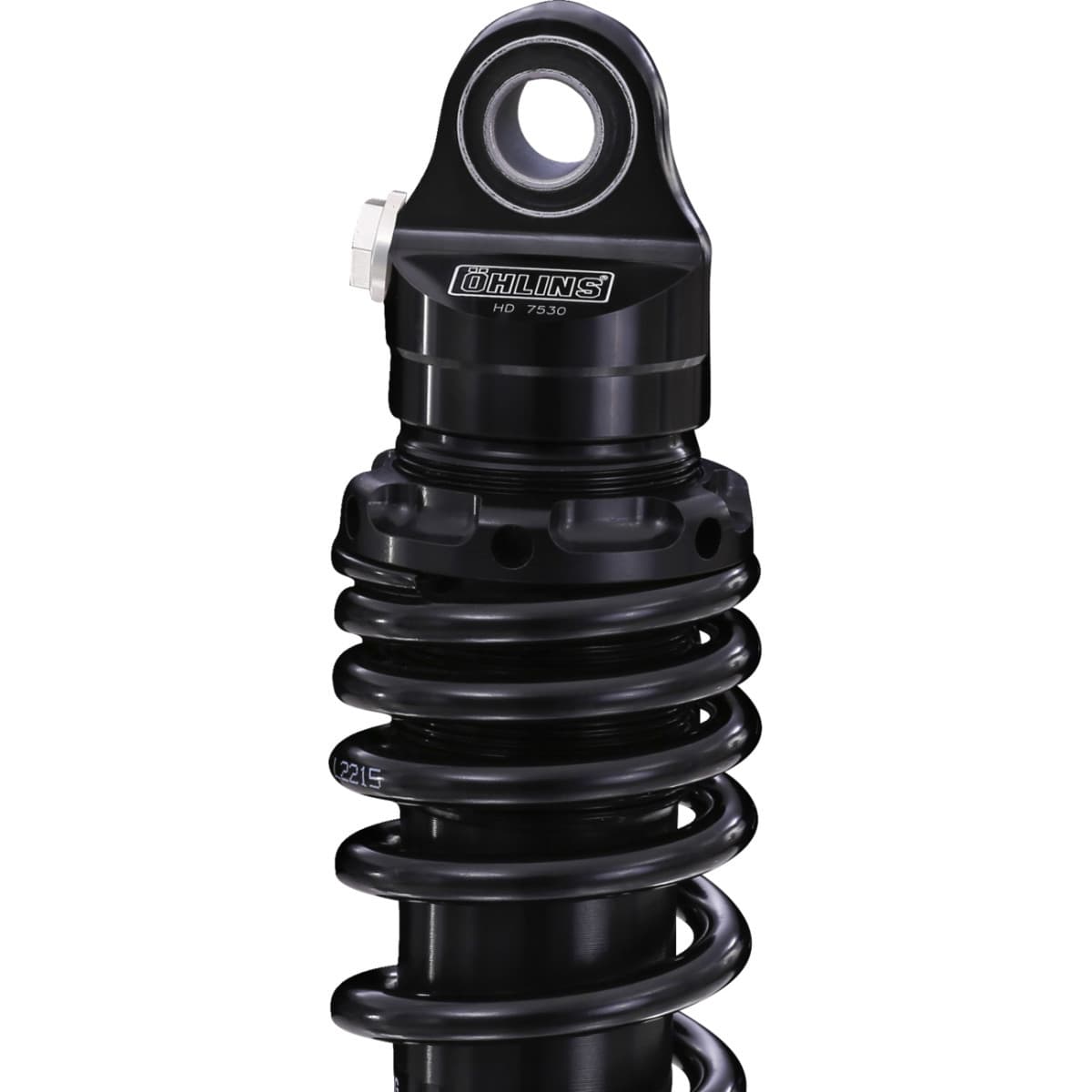

Ohlins #HD 776S2 - Twin Shocks - 12" - Rebound Adjustable - STX36 Blackline (HD776S2)

Includes Spring: Ohlins Part # 66420-026 (B)

Stroke length: 3.071"

Weight range: Min 250 lb – Max 575 lb

2 rules must be in place to use an S2:

-Rider must be over 250 lb

-Combined weight must be over 500 lb

-If either of those rules are not in place, the customer should select the HD 776 (Not HD 776S2).

Features

• Adjustable rebound damping
• Monotube shock with internal reservoir
• High pressure nitrogen gas charged
• STX single tube design
• 36 mm / 1.417" piston diameter
• Adjustable preload with billed tool
• Multiple spring rates available to accommodate a wide range of riders
• Top level comfort, rideability, and performance
• Hard anodized - precision CND-Machined components
• Low-friction Shaft / Seal head design
• Fully serviceable and repairable
