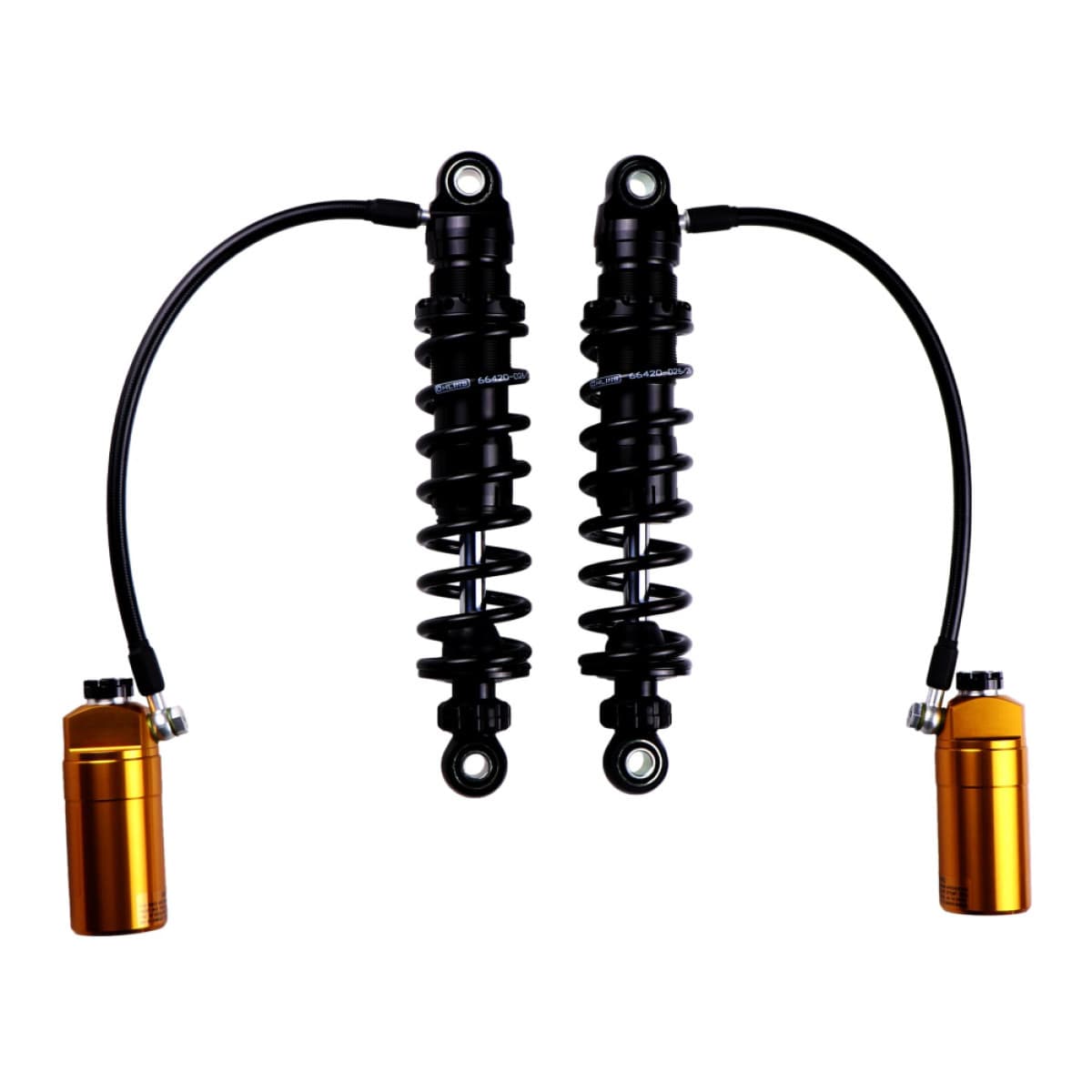

Ohlins #HD 778S2 - Shock Absorber - 12" - Fully Adjustable - STX36 Blackline (HD778S2)

Includes Spring: Ohlins Part # 66420-028

Stroke length: 3.091"

Weight range: Min 250 lb – Max 575 lb

2 rules must be in place to use an S2:

-Rider must be over 250 lb

-Combined weight must be over 500 lb

-If either of those rules are not in place, the customer should select the HD 778 (Not HD 778S2).

Features

• 36 mm / 1.417" piston diameter
• Adjustable rebound and compression damping
• Multiple spring rates available
• Hard-anodized, CNC-machined components
• Length adjustable by .393"
• High-pressure nitrogen gas charged
• Adjustable preload with billet tool
• Low-friction shaft and sealhead design
• Fully serviceable and repairable
• Fits with Tour-Pak.
