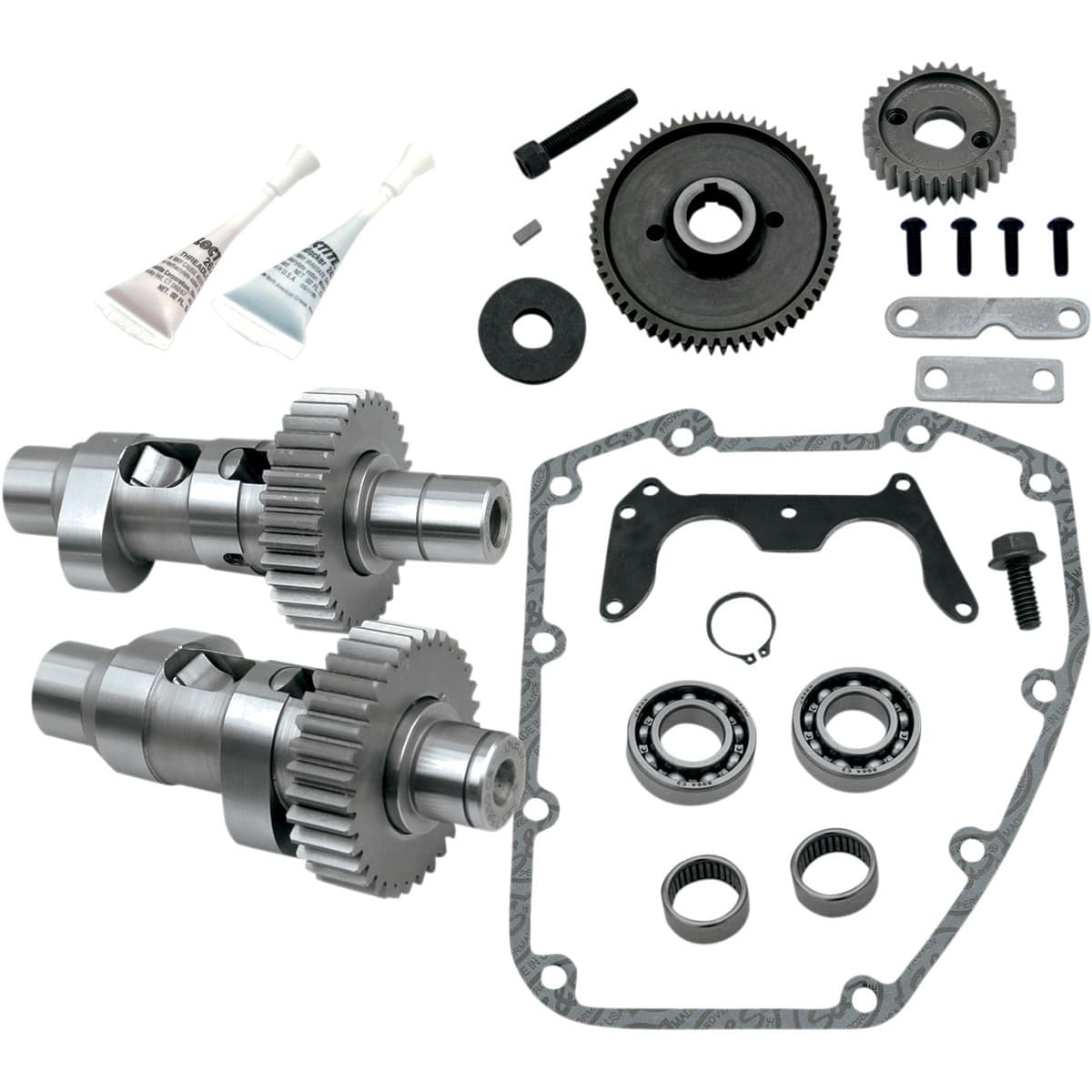

S&S Cycle #106-4840 - Camshaft - Easy Start - 640 Gear Drive - Twin Cam '99-'06 (except '06 Dyna)

Part #: 0925-0747
From $896.36
S&S Cycle #106-4840 - Camshaft - Easy Start - 640 Gear Drive - Twin Cam '99-'06 (except '06 Dyna)—
$896.36

Fits These Vehicles

Shipping & Returns

Description

Includes 4-gear set.

Due to the inherent characterics of gear drives, there may be more valve train noise.

Features

  • Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
  • Intended for 95"/96"/103" and 110" engines with compression ratios between 10.5:1 and 11.5:1; strongest 3000 rpm - 6000 rpm range
  • Made in the USA
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Not for models with OEM compression releases.
  • High-lift springs and adjustable pushrods required.

Specs

Exhaust Duration270°
Exhaust Lift at TDC0.214"
Exhaust Open65°
Intake Lobe Centerline107.5°
Exhaust Lift0.640"
Exhaust Lobe Centerline110°
Intake Lift0.640"
Riding StyleStreet
TypeGear
ApplicationExhaust
Exhaust Close25°
Grind640 Series
Intake Close60°
Intake Duration265°
Intake Lift at TDC0.228"
Product NameCamshaft Kit
UnitsKit
Intake Open25°
ModelEasy Start
