S&S Cycle #106-5737 - Camshaft Kit - Easy Start - 551 Gear Drive - Twin Cam '07-'17
Fits These Vehicles
Fits These Vehicles
Shipping & Returns
Shipping & Returns
Description
Includes 4-gear set.
Due to the inherent characterics of gear drives, there may be more valve train noise.
Features
- Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- Optimized for 88"/96"/103" to 106" Touring bike with slip-on mufflers and 9.0:1 to 9.0:9 compression with stock starter
- Bolt-in for stock or mildly modified Touring models
- Greatly improves low-end and midrange torque
- Strongest from idle to 4000 rpm

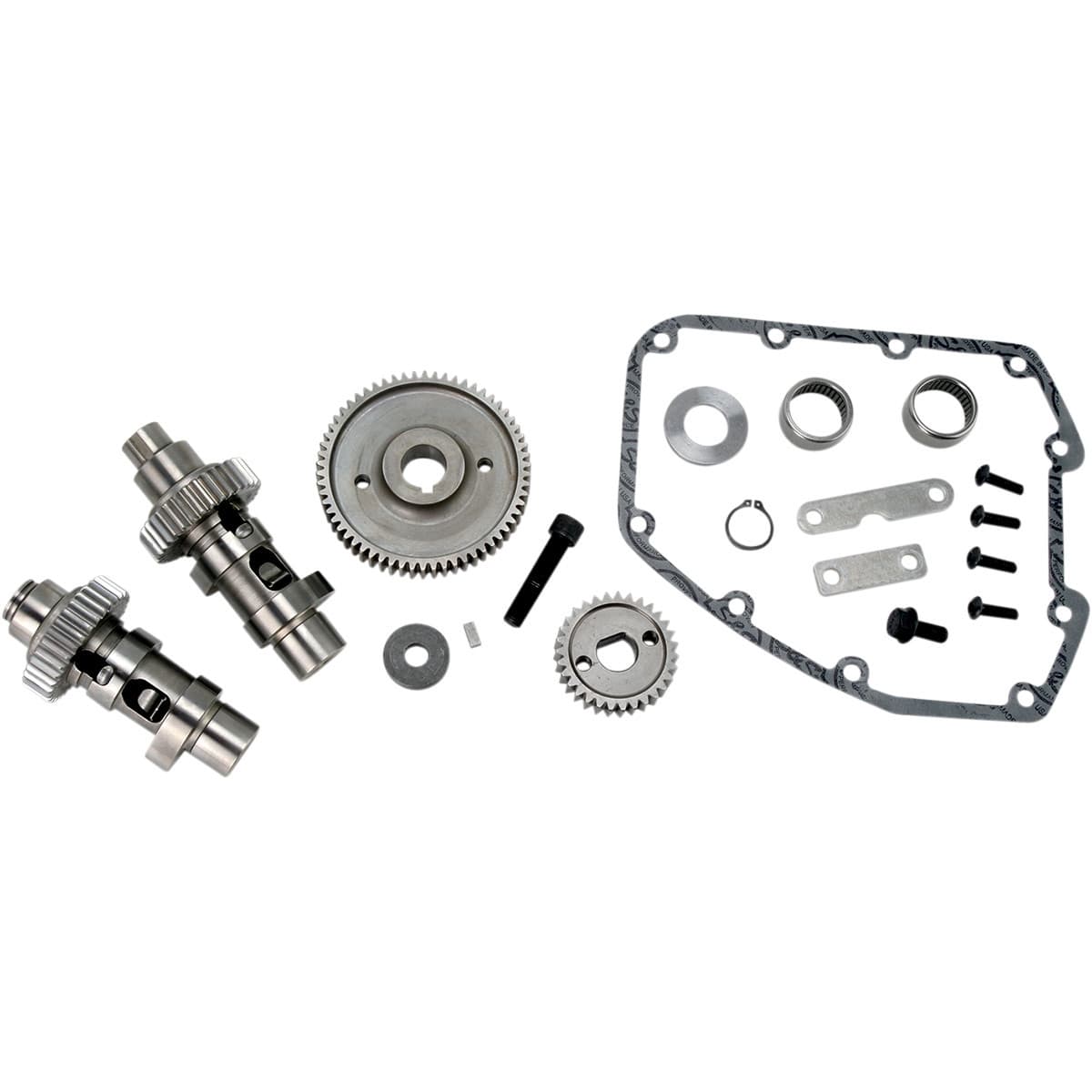

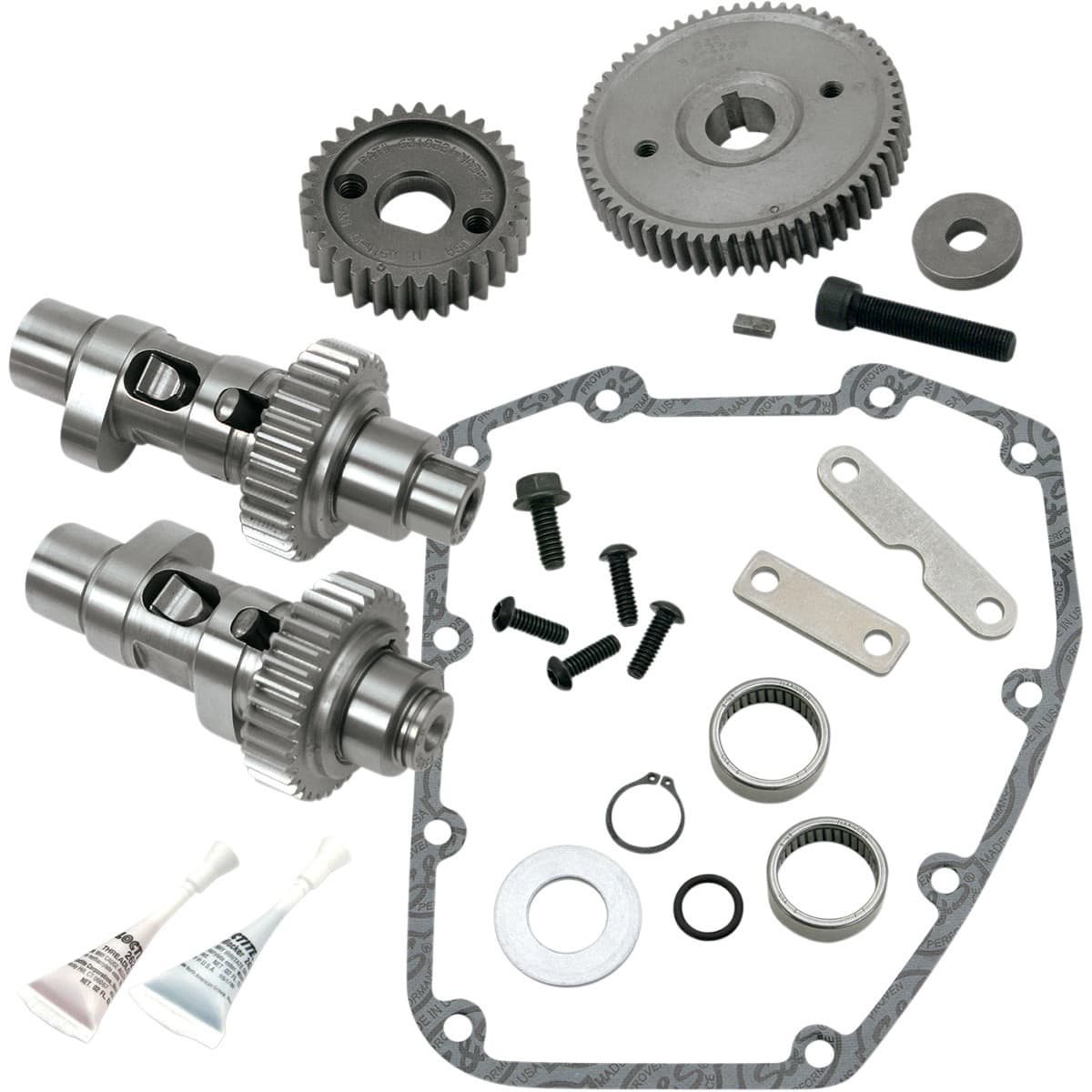

- Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
- Made in the USA
- Not recommended for compression ratios of 10.0:1 or greater.
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- Not for models with OEM compression releases.
- Can be used with stock pushrods, lifters, and springs (unless noted).
Specs
| Type | Gear |
| Units | Kit |
| Application | Intake |
| Exhaust Duration | 237° |
| Exhaust Open | 41° |
| Intake Lift at TDC | 0.178" |
| Exhaust Lift | 0.550" |
| Exhaust Lobe Centerline | 102° |
| Intake Duration | 215° |
| Intake Lift | 0.550" |
| Intake Close | 19° |
| Model | Easy Start |
| Exhaust Lift at TDC | 0.170" |
| Grind | 551 Series |
| Product Name | Camchest Kit |
| Exhaust Close | 17° |
| Intake Lobe Centerline | 91° |
| Intake Open | 17° |
| Riding Style | Street |
