S&S Cycle #33-5052 - Camshaft - 514 - Big Twin
Part #: DS199188
From $229.46
S&S Cycle #33-5052 - Camshaft - 514 - Big Twin—
$229.46
Fits These Vehicles
Fits These Vehicles
Shipping & Returns
Shipping & Returns
Description

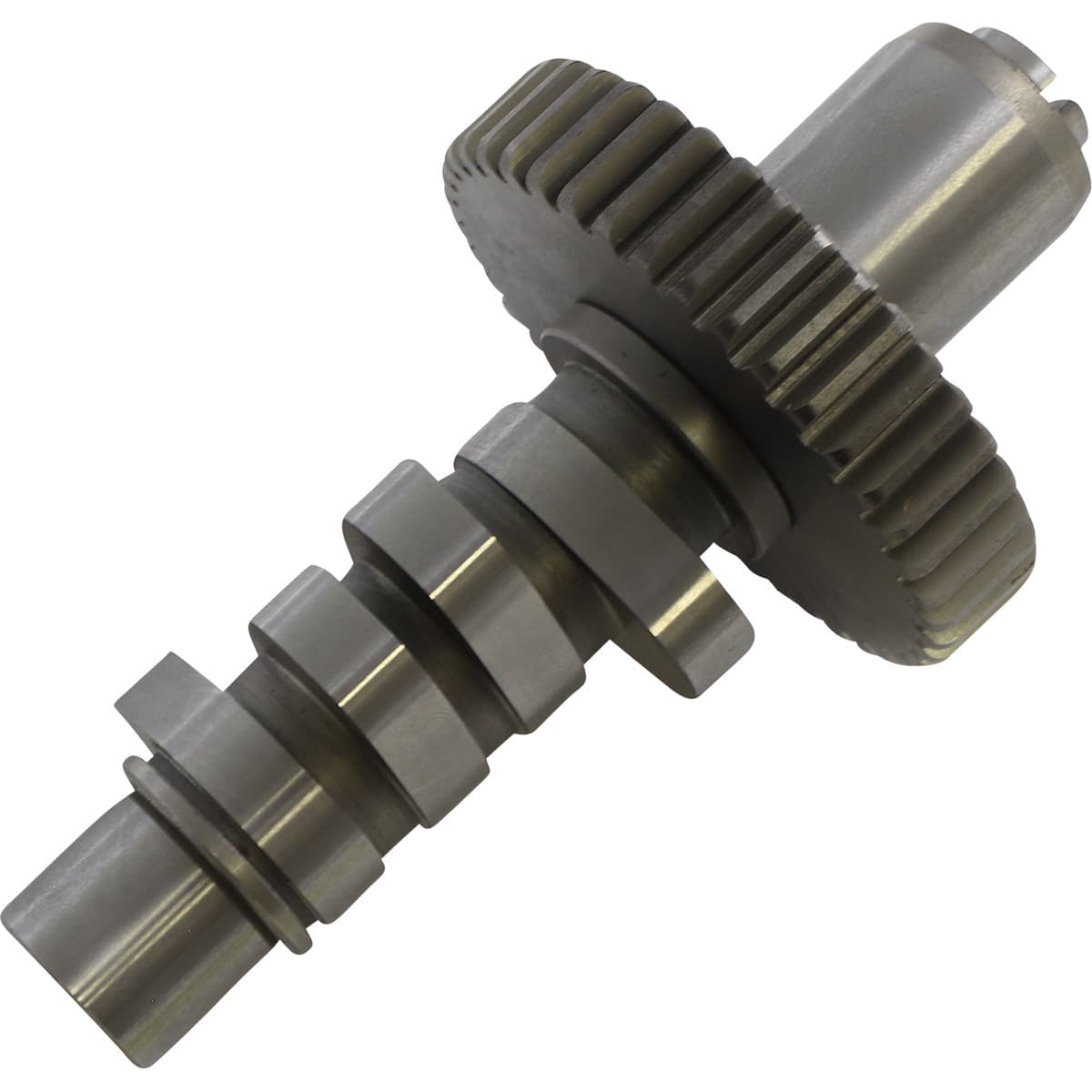

Camshaft - 514 - Big Twin
Features
- S&S cams are tested on the dyno, street and racetrack before being offered to the public
- With hundreds of test hours on them, you know that you are getting the best cam S&S can produce
- For 84" to 93" motors, not more than 9:1
- Best response occurs in the mid range from 2500 to 5000 rpm
- Recommend high-performance hydraulic or solid lifters
- Made in the USA
- Spring spacing is required.
- Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
Specs
| Exhaust Duration | 246° |
| Exhaust Lift | 0.540" Panhead, 0.514" Shovelhead |
| Grind | 514 Series |
| Intake Open | 23° |
| Application | Intake |
| Exhaust Open | 43° |
| Intake Close | 43° |
| Riding Style | Street |
| Units | Each |
| Intake Duration | 246° |
| Intake Lift at TDC | 0.177" Panhead, 0.169" Shovelhead |
| Intake Lift | 0.540" Panhead, 0.514" Shovelhead |
| Exhaust Close | 23° |
| Exhaust Lift at TDC | 0.177" Panhead, 0.169" Shovelhead |
| Product Name | Cam |
