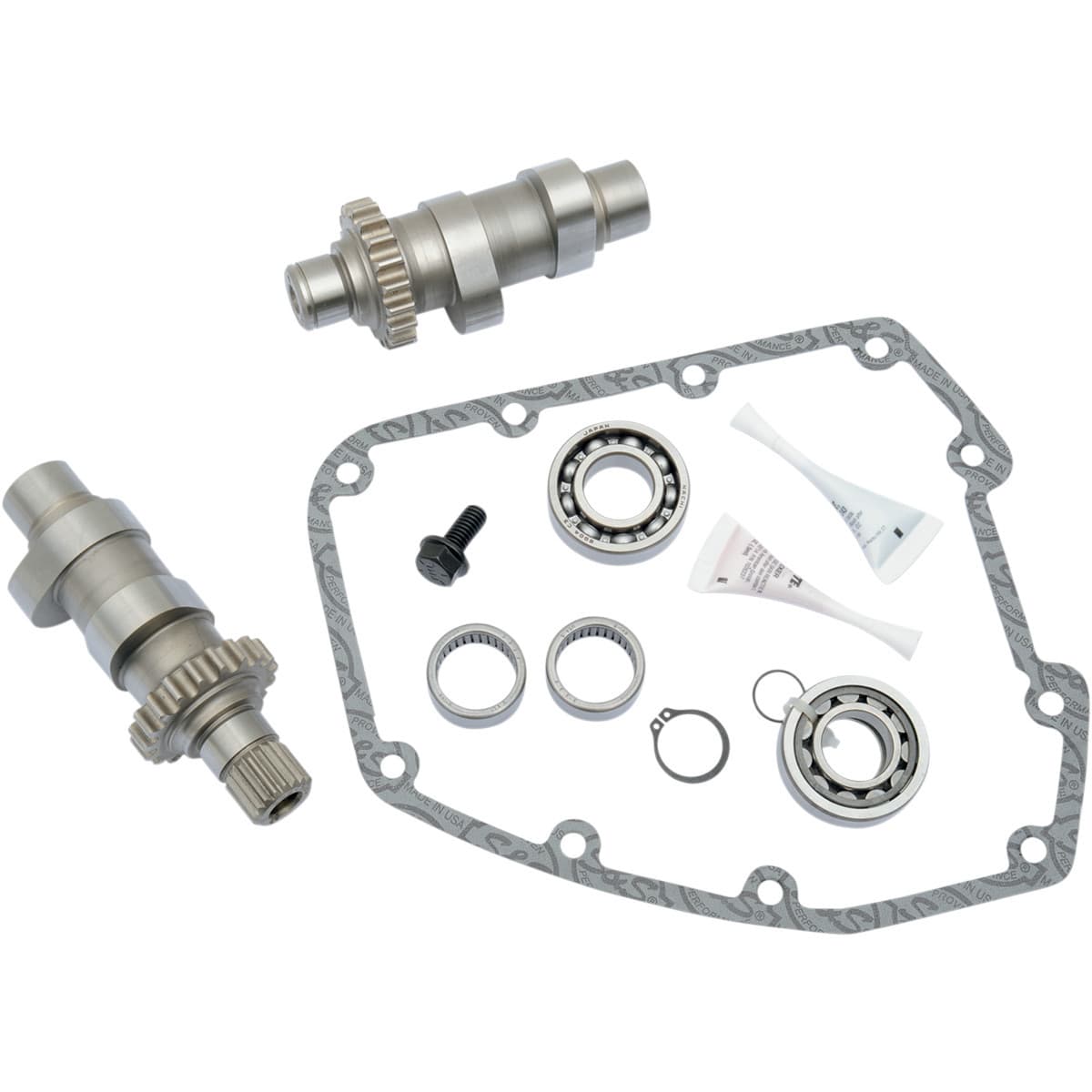

Product image
S&S Cycle

S&S Cycle #330-0016 - Camshaft Kit - 509C Chain Drive - Twin Cam

Part #: 0925-0539
From $359.96
S&S Cycle #330-0016 - Camshaft Kit - 509C Chain Drive - Twin Cam—
$359.96

Fits These Vehicles

Shipping & Returns

Description

Not for '06 Dyna.

Features

  • Great low and mid-range torque
  • Strongest from 1000-4500 RPM
  • Bolt-in cams for 88 CID engines with stock compression ratios
  • 180 psi cranking compression; no need for compression releases
  • Lower lift allows them to be bolted into stock 96"-106" '06 engines with stock valve springs
  • Cams for '00-'06 Twin Cam are for use with stock splined drive gears; for installation on '99 Twin Cam motors you must purchase splined outer drive socket; S&S recommends that Andrews 4340 steel drive sprocket to be used.
  • Made in the USA
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.

Specs

ApplicationIntake
Exhaust Duration237°
Intake Open18°
Exhaust Close11°
Exhaust Lift at TDC0.140"
Grind509 Series
Intake Lobe Centerline90°
UnitsKit
Intake Lift at TDC0.174"
Riding StyleStreet
Exhaust Lobe Centerline107.5°
Exhaust Open46°
Intake Close18°
Intake Lift0.509"
Intake Duration216°
Product NameCam Kit
Exhaust Lift0.509"
TypeChain
