S&S Cycle #330-0445 - Camshaft Kit - Easy Start - HP103 Chain Drive - Twin Cam '99-'06 (except '06 Dyna)

Part #: 0925-1041
From $486.86
S&S Cycle #330-0445 - Camshaft Kit - Easy Start - HP103 Chain Drive - Twin Cam '99-'06 (except '06 Dyna)—
$486.86

Fits These Vehicles

Shipping & Returns

Description

Camshaft Kit - Easy Start - HP103 Chain Drive - Twin Cam '99-'06 (except '06 Dyna)

Features

  • Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
  • Designed as bolt-in cams for 103" engine with stock 9.7:1 compression ratio up to 10.5:1 compression ratio
  • Power in the high rpm range, 3000 rpm - 6000 rpm

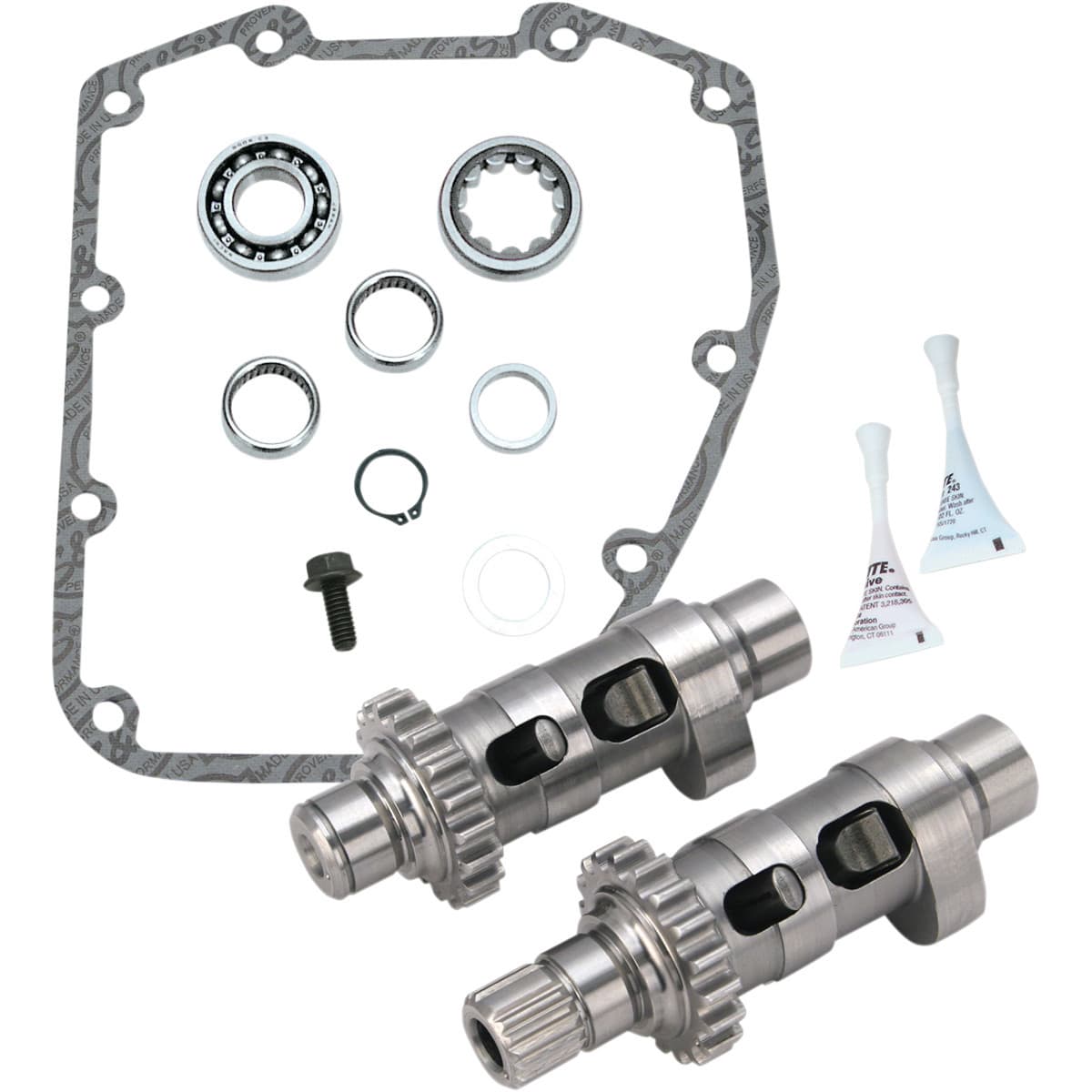

  • Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
  • Made in the USA
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Works well with stock, unported heads, but is great for S&S CNC ported heads.
  • Not for models with OEM compression releases.

Specs

GrindHP103
Intake Lift at TDC0.199"
Product NameCamshaft Kit
Exhaust Lift0.575"
Riding StyleStreet
ApplicationExhaust
Intake Lift0.575"
Exhaust Lobe Centerline99.5°
Intake Open20°
TypeChain
Exhaust Duration251°
Intake Duration249°
Exhaust Open45°
Intake Lobe Centerline104.500°
ModelEasy Start
UnitsKit
Exhaust Close26°
Exhaust Lift at TDC0.206"
Intake Close49°
