Jims #96780-58A - Piston Pin Lock Ring Tool - Big Twin

Piston Pin Lock Ring Tool - Big TwinFeaturesUse to install lock ring (Harley-Davidson® No. 22582-52) in piston having .515” inner diameter wrist pins, like most aftermarket pistonsThis tool will install “spiral lock” rings in one easy step without...

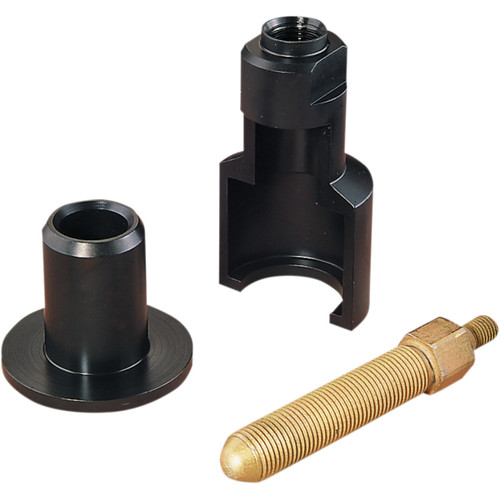

Jims #96830-51 - Pinion Gear Puller - Evolution/Shovelhead

Pinion Gear Puller - Evolution/ShovelheadFeaturesUse to install pressed on splined pinion gears on Harley-Davidson® Big TwinAlso can be used to remove pinion gear on Big Twin's and SportstersMade in the U.S.A.SpecsProduct...

Jims #969 - O² Sensor Tool - Socket

O² Sensor Tool - SocketFeaturesRemove and install oxygen sensors on fuel-injected modelsSocket tool will withstand up to 125 ft.-lbs. of torqueMade in the USASpecsRiding StyleStreetUnitsEachDrive Size3/8"Product NameO² Sensor...

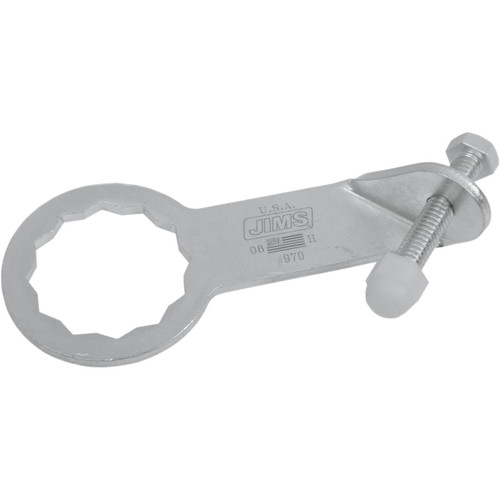

Jims #970 - Axle Locker Tool - 3rd Hand

Axle Locker Tool - 3rd HandFeaturesEliminates the need for a helper or trying to blindly hold the axle from the other side of the tirePrevents axle from moving while torquing down the axle nut after setting belt tensionMade in the U.S.A...

Jims #97081-54 - Sprocket Shaft Bearing Press Tool

Sprocket Shaft Bearing Press ToolFeaturesUse on '55-'76 XL and K models to install the flywheel assembly into the left crankcase Timken® bearingOptional sleeves sold separately for use on '86-'03 XL and '94-'03 BuellMade in the U.S.A.SpecsProduct...

Jims #972 - Gear Seal Installer - Main Drive - 6-Speed

Gear Seal Installer - Main Drive - 6-SpeedFeaturesUse to install main drive gear oil seal to the proper depth with transmission assembledIncludes protective sleeve for seal, which can be used to protect main drive gear inner bearings during...

Jims #97225-55 - Sprocket Shift Bearing Installation Tool

Sprocket Shift Bearing Installation ToolFeaturesUsed on '84-'02 Big Twin to install the flywheel assembly to the left crankcase Timken® bearingMade in the U.S.A.SpecsRiding StyleStreetUnitsEachProduct NameBearing InstallerApplicationSprocket...

Jims #973 - Sprocket Bearing Installer Tool

Sprocket Bearing Installer ToolFeaturesAllows installation of shaft bearing on '06 Harley-Davidson® Dyna Glide and all '07-'17 Twin Cam modelsAn adapter for JIMS® Sprocket Shaft Bearing ToolSpecsApplicationSprocket ShaftProduct NameAdapterRiding...

Jims #976 - Rotator Tool - Engine - Big Twin

Rotator Tool - Engine - Big TwinFeaturesRotates flywheel/piston assembly with engine still in frame or on a benchThe perfect tool when doing pushrod adjustments, building big-inch engines and checking operating clearancesAlso can be used to keep the...

Jims #977 - Wrench - Fork Stem Nut

Wrench - Fork Stem NutFeaturesThis tool allows the ability to loosen, tighten and torque to spec the 1-1/2” stem nut without radio removalNormally to get access to the top stem nut requires the need to remove the radio packageSaves up to 45 minutes for...

Jims #981 - Main Drive Gear Tool - Cruise Drive/6-Speed

Main Drive Gear Tool - Cruise Drive/6-SpeedFeaturesHolds the main drive gear square to its bearing bore, eliminating any marring of gear or bearingsInstalls the main drive gear without removing the transmissionMade in the USASpecsColor/FinishBlackProduct...

Jims #984 - Door Puller - Transmission - '06 Dyna/'07-'17 Big Twin

Door Puller - Transmission - '06 Dyna/'07-'17 Big TwinFeaturesRemoves transmission door with gears and shaft attachedMade in the USAPuller will not damage door bearings.SpecsProduct NameDoor PullerRiding...

Jims #985 - Removal Tool - Shifter Shaft

Removal Tool - Shifter ShaftFeaturesLoosens and removes both shifter shafts from transmission door, allowing further disassembly of transmissionMade in the USASpecsColor/FinishBlackTypeShifter ShaftUnitsEachRiding StyleStreetProduct NameRemoval Tool

Jims #986 - Main Drive Gear Bearing/Seal Installer Tool - Cruise Drive/6-Speed

Main Drive Gear Bearing/Seal Installer Tool - Cruise Drive/6-SpeedFeaturesHolds bearings and seal square to its bore, eliminating any marringInstall both bearings and seal with use of a one-ton pressInstall bearings and seal to correct depthMade in the...

Jims #987 - Main Bearing Installer Tool - Cruise Drive/6-Speed

Main Bearing Installer Tool - Cruise Drive/6-SpeedFeaturesSafely installs new main transmission case bearing; does not remove bearingHolds bearing square to its bore, eliminating any marring of bearing boreMade in the...

Jims #988 - Valve Spring - Compressor

Valve Spring - CompressorFeaturesUsed to remove and replace valve and new-style conical valve springRequires use of JIMS Valve Spring Compressor ToolMade in the U.S.A.SpecsProduct NameSpring CompressorRiding StyleStreetUnitsEachApplicationValve...

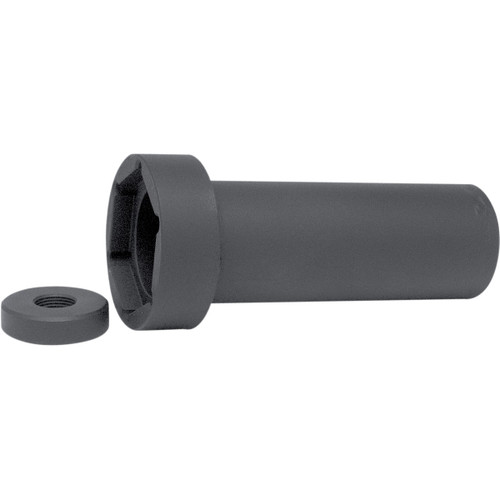

Jims #989 - Sprocket Locknut Wrench - Main Drive Gear

Sprocket Locknut Wrench - Main Drive GearFeaturesRemoves hex nut from end of main drive gear that secures the rear drive transmission pulleyExtra-long two-piece designMade in the USAInner collar will retain wrench to nut for safer work.SpecsTypeMain...

Jims #990 - Camshaft Assembly Tool - '07-'17 Twin Cam

Camshaft Assembly Tool - '07-'17 Twin CamFeaturesHolds both cams in an upright position while lowering cam support plate over both guides and cam journal guidesMade from a non-marring material that will not damage any of the cams' surfacesMade in the U.S...

Jims #991 - Case Splitting Tool - M8

Case Splitting Tool - M8FeaturesIn order to perform any type of lower end service or performance work, it is necessary to split the crankcase into halvesSimply install the tool on the primary side of the case, and easily split the cases by hand with a...

Jims #993 - Inner Camshaft Bearing Tool

Inner Camshaft Bearing ToolFeaturesUsed to remove inner cam bearing without damaging the crankcaseTool is also designed to keep rollers from falling into the crankcaseComes with instructionsMade in the U.S.A.SpecsApplicationCamTypeInner...

Jims #994 - Camshaft Locking Tool - Big Twin

Camshaft Locking Tool - Big TwinFeaturesDesigned to lock the camshafts and crankshaft sprockets when removing, replacing and torquing the sprocket boltsComes with instructionsMade in the U.S.A.SpecsUnitsEachApplicationCamshaftStyleSprocketTypeDrive Gear...

Jims #995 - Splitter Case - '07-'17 Twin Cam

Splitter Case - '07-'17 Twin CamFeatures"Breaks" the case sealant by pushing apart both case halvesUses included hand thread-in pushing screwFlywheels will be pushed from the left caseBolts to primary mounting holesMade in the U.S.A...

K&L Supply #35-0507 - Tool - Spoke Wheel Weight/Remover

Tool - Spoke Wheel Weight/RemoverFeaturesAllows the tech to place the split tang of the tool between the rim and the weight and tap it off the nipple with the spoke wheel weight hammerSpecsColor/FinishBrassRiding StyleStreetProduct NameToolTypeSpoke...

K&L Supply #35-0800 - Fuel Pump - MC800/Regulated/Fuel Injection - Adjustable

Fuel Pump - MC800/Regulated/Fuel Injection - AdjustableFeaturesRequires use of F.I. rated fuel bottle (with built-in fuel return feature) and 5/16” F.I. high-pressure fuel line (5/16” high-pressure fuel line for use with fuel injection applications);...
