Engine Tools

ALIGNMENT TOOL WITH 1/4-20 THREAD

Weight: 0.04Tapered shank is designed to provide perfect alignment with the threadsUse two to insure proper alignmentSold eachAligns the following:Big Twin Late 1976/1999 tappet blockAll Evolution and Twin Cam lower rocker coversCam support plate for...

BALANCER SHAFT REMOVAL TOOL FOR SOFTAIL

Weight: 3.82Designed to remove both front and rear counter balance shaft assembly from the left engine caseUse on both 96" and 110" Beta enginesUse with 60760 installation toolIncludes instructionsJimsFits Softail 2007/LaterReplaces HD# 48457By: JIMS...

BALANCER/BEARING SERVICE TOOL SET FOR SOFTAIL

Weight: 3.40 The balancer shaft installation tool is used to align and safely install a new balancer bearing and counter balancer shaft into a Twin Cam 96" or 110" "B" Softail engine case Use our 60763 to remove the balancer shafts The right side...

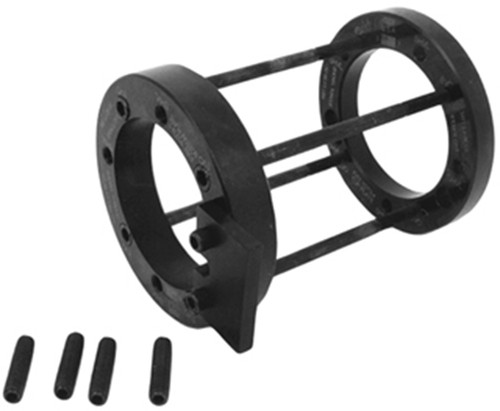

ENGINE CYLINDER TORQUE PLATE KIT FOR BIG TWIN

Weight: 9.0060 Late model aluminum cylinders cannot be accurately honed without using torque plates. These plates simulate operating stress conditions when boring or honing aluminum cylinders. They easily adapt to conventional boring bars or a...

ENGINE CYLINDER TORQUE PLATE KIT FOR BIG TWIN

Weight: 8.5900 Late model aluminum cylinders cannot be accurately honed without using torque plates. These plates simulate operating stress conditions when boring or honing aluminum cylinders. They easily adapt to conventional boring bars or a...

ENGINE CYLINDER TORQUE PLATE KIT FOR BIG TWIN

Weight: 8.8200 Late model aluminum cylinders cannot be accurately honed without using torque plates. These plates simulate operating stress conditions when boring or honing aluminum cylinders. They easily adapt to conventional boring bars or a...

ENGINE ROTATOR TOOL FOR BIG TWIN

Weight: 1.85 Used to rotate the flywheel assembly when doing pushrod adjustments, building engines, or when checking operating clearances, such as piston or valve to valve. Can also be used to hold the flywheel assembly from rotating, when torquing...

ENGINE SPROCKET SHAFT BEARING TOOL FOR BIG TWIN

Weight: 0.84Upgrade our 60731 bearing installer tool to work on the latest fine spline Twin Cam sprocket shaftsDesigned to either install Timken® bearing (HD# 8028) or the roller bearing race assembly (HD# 24004-03) onto the sprocket shaftIncludes...

ENGINE STANDS FOR BIG TWIN

Weight: 6.24JimsBlack Powder CoatedFits Twin Cam "B" 2000/LaterBy: JIMS MACHINING

ENGINE STANDS FOR BIG TWIN

Weight: 6.97JimsBlack Powder CoatedFits Twin Cam "A" 1999/Later By: JIMS MACHINING

ENGINE STANDS FOR BIG TWIN

Weight: 8.20HARDWAREBlack Powder CoatedFits Big Twin Single Cam 1936/1999 (extra tall) Replaces HD# 96815-46

EXHAUST STUD DRILL PLATE FOR ALL EVOLUTION & TWIN CAM

Weight: 0.36Designed to guide and keep alignment of the included 1/4" drill bit in order to drill out a broken exhaust studFollow up the drilling process with a tap and you are ready to install a new exhaust studCNC machined from billet aluminum and...

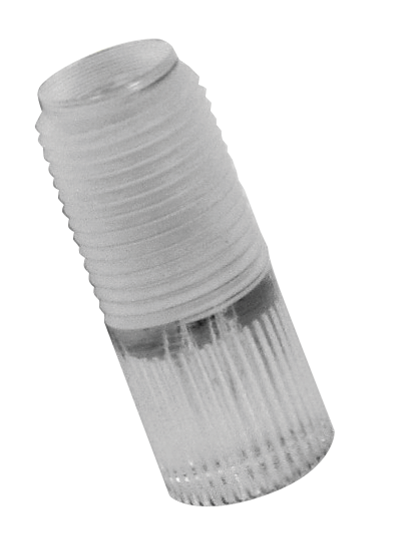

HARDWARE TIMING MARK CLEAR VIEWING TOOL FOR MOST MODELS

Weight: 0.02 This handy little 5/8-18 thread tool is a must for anyone wanting to view the flywheel timing mark with a timing light without getting an eye full of oil and oil all over the bike Simply screw plug in by hand until it touches the...

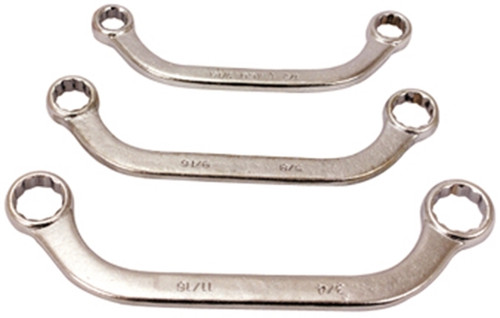

HEAD BOLT AND BASE NUT WRENCH SET FOR MOST MODELS

Weight: 0.88High strength obstruction wrenches12 point box ends for those hard to reach places like head bolts, base nuts or fender nutsV-FACTORChrome Plated 3 Piece Set and Sizes Include: 7/16" & 1/2", 9/16" & 5/8", 11/16" & 3/4"By: EMGO INTERNATIONAL...

KEEPER TOOL FOR MOST PUSHROD COVERS

Weight: 0.68 Designed to compress the spring cover with one hand when removing or installing the retainer clip This is the most professional tool available for the type of service it performs 13" long for good leverage and made from steel for...
