Mid-range to top-end for modified 80 cubic inch engines, 9.5:1+ compression and low-restriction pipes and intake
Features
- New cam lobe designs allow maximum performance for Evolution engines
- Great throttle response and mid-range with excellent high-rpm power
- Fast opening and closing gives better airflow with the lift and duration used
- Low-end and mid-range power for heavy bikes; 1500-5500 rpm
- Made in the USA
- Requires valve springs designed for high-lift cams.
- Always check valve spring coil bind, valve guide-to-collar, valve-to-valve and valve-to piston clearance when installing.
Specs
| Exhaust Close | 20° |
| Exhaust Lift | 0.585" |
| Riding Style | Street |
| Intake Close | 46° |

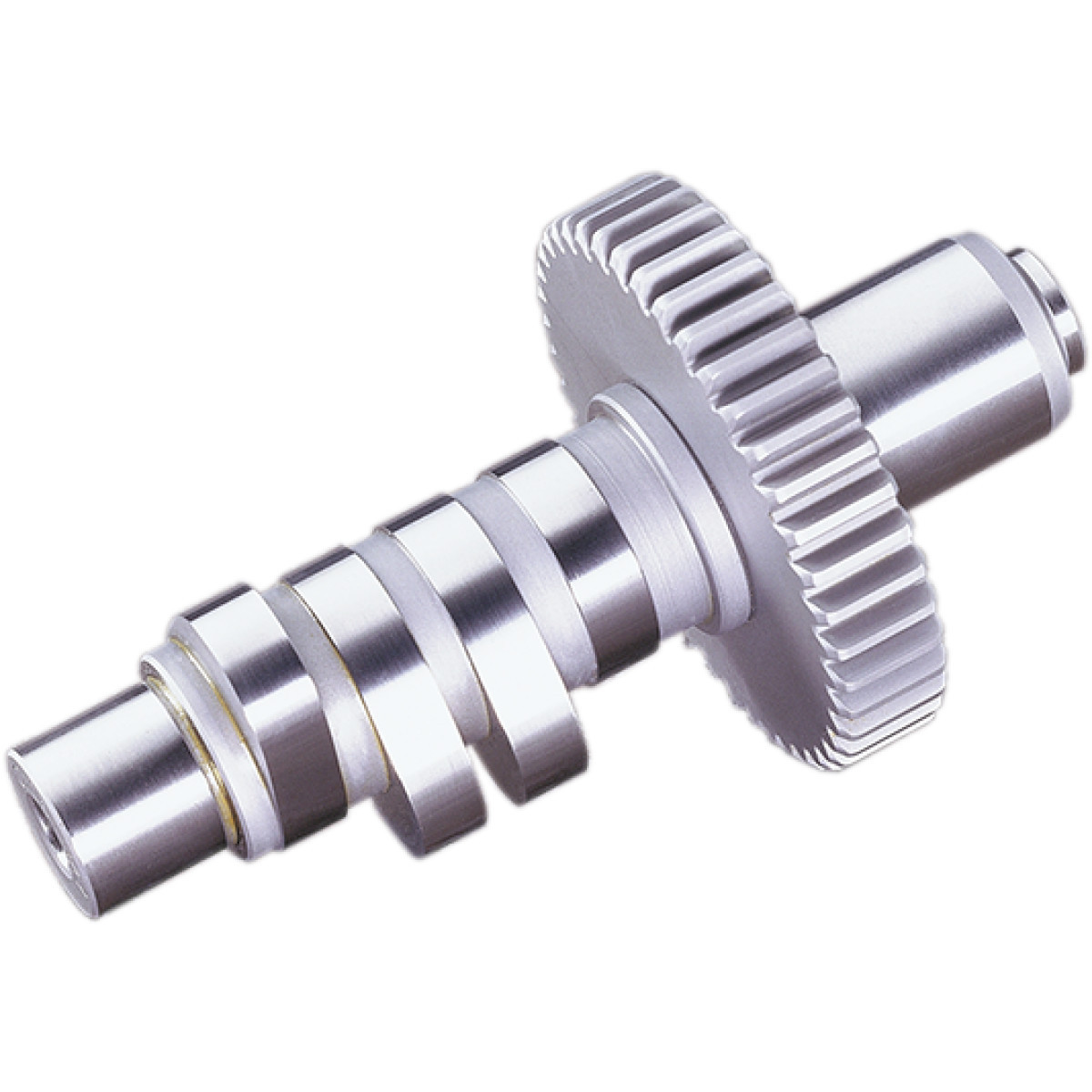

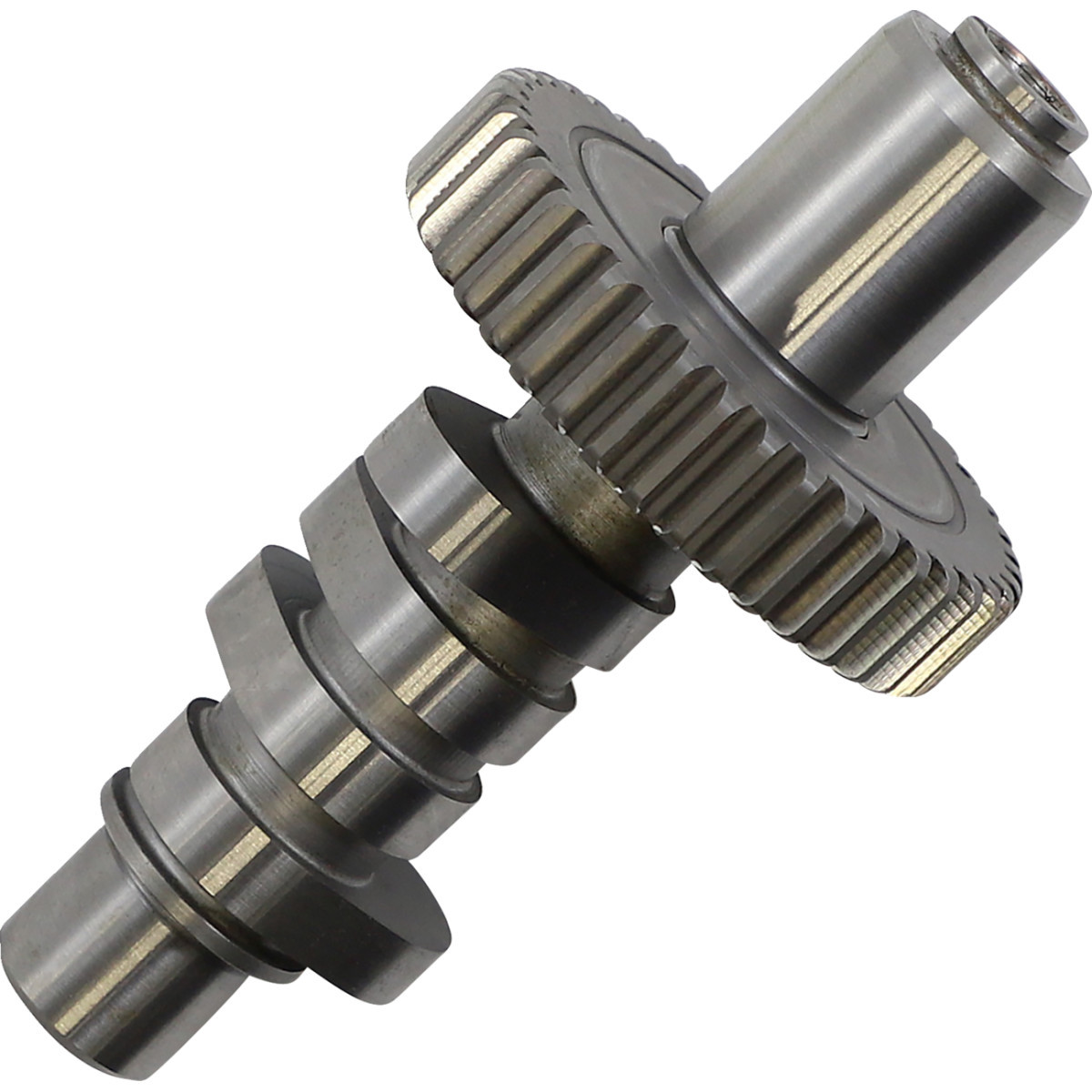

| Grind | EVL-5015 |
| Model | Xtreme Energy |
| Exhaust Duration | 252° |
| Exhaust Open | 52° |
| Intake Lift | 0.585" |
| Type | Gear |
| Application | Intake |
| Intake Duration | 252° |
| Intake Open | 26° |
| Product Name | Cam |
| Units | Each |
Product Videos
Custom Field
Type Gear
