Camshafts & Install Kits

Andrews #288148 - Cam Set - TW48 - Chain Drive - Twin Cam

'99 Twin Cam requires a splined cam drive sprocket.FeaturesBroad tip cams for baggers with stock motors; max torque at low and mid rpm rangesManufactured with the help of a computer with cam design capabilitiesMade from alloy steel billets and...

Andrews #288150 - Cam Set - TW50 - Chain Drive - Twin Cam

Designed for 95"+ motors with 9.25:1 compression ratio to 9.50:1 compression ratio and stock heads.For lighter bikes.Cams work best at higher rpm of 2500-6000.Can be used with stock valve springs and tappets.Includes front cam support plate bearing...

Andrews #288154 - Cam Set - TW54 - Chain Drive - Twin Cam

Designed for 96" and 103" motors that go up to 10.0:1 compression ratio with 2200-5600 rpm range.Includes front cam support plate bearing.'99 Twin Cams require a splined cam drive sprocket.FeaturesManufactured with the help of a computer with...

Andrews #288154G - Cam Set - 54G - Gear Drive - Twin Cam

Designed for 96" and 103" motors with up to 10.0:1 compression ratio.Cams work best at 2200-5600 rpm range.Not for '06 Dyna.FeaturesManufactured with the help of a computer with cam design capabilitiesMade from alloy steel billets and...

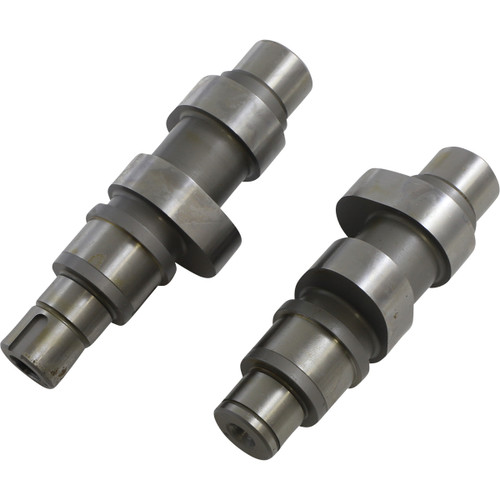

Andrews #288155G - Cam Set - 55G - Gear Drive - Twin Cam

Cams for maximum torque and horsepower at 2600-6000+ rpm.Designed for 88'-95" engines with 9.5:1 compression ratio or higher.Coil bind must be checked, but stock tappets can be used.Not for '06 Dyna.FeaturesManufactured with the help of a computer...

Andrews #288157 - TW57 Grind Cam - Twin Cam

TW57 Grind Cam - Twin CamFeaturesBolt-in broad tip cams; 96" , 103" Limited and 110" CVO enginesCams work best at rpm range of 2200-5600SpecsApplicationIntakeExhaust Lift at TDC0.153"Intake Lift0.560"Exhaust Lift0...

Andrews #288160 - Cam Set - TW60 - Chain Drive - Twin Cam

Designed for 95"+ motors with major head work.Maximum torque and horsepower at middle and upper ranges from 2700 to 6500+ rpm.Coil bind and valve-to-valve and valve-to-piston clearance must be checked.Includes front cam support plate bearing.'99...

Andrews #291113 - Camshaft - EV13 - Evolution Big Twin

Camshaft - EV13 - Evolution Big TwinFeaturesCapable of 6000+ rpm with stock springs and no valve floatBolt-in cam for street or touring use with more mid-range and upper-end power than the stock 88 EV camsUses stock springs; works with carbs or fuel...

Andrews #291117 - Camshaft - EV31 - Evolution Big twin

Camshaft - EV31 - Evolution Big twinFeaturesCapable of 6000+ rpm with stock springs and no valve floatTiming set for superchargers or big-inch motors with 10.5+ compression ratioSuper power for supercharged enginesMade in the USAMust check coil bind,...

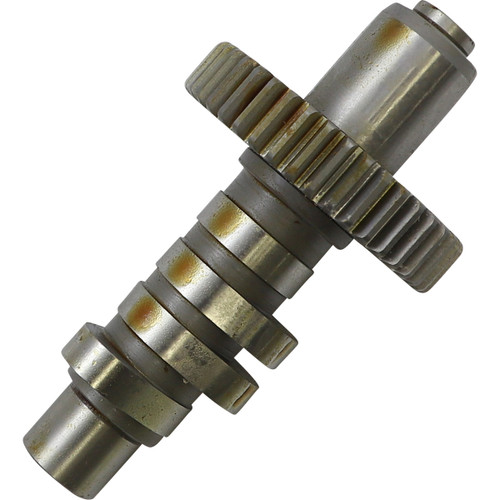

Andrews #291123 - Camshaft - EV23 - Evolution Big Twin

Camshaft - EV23 - Evolution Big TwinFeaturesCapable of 6000+ rpm with stock springs and no valve floatBolt-in cam for heavier touring bikes and high-geared bikes with 65-tooth rear pulleysUses stock springs; works with carbs or fuel injectionCrisp...

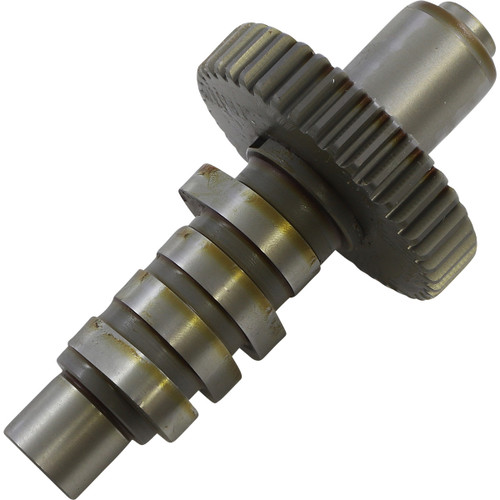

Andrews #291127 - Camshaft - EV27 - Evolution Big Twin

Camshaft - EV27 - Evolution Big TwinFeaturesCapable of 6000+ rpm with stock springs and no valve floatBolt-in street cam with fast open and close rampsUses stock springs; works with carbs or fuel injectionPulls from 1500 to 6000 rpmSimilar timing to EV3,...

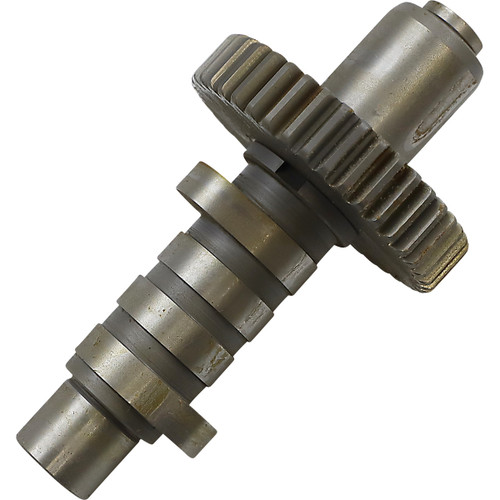

Andrews #291130 - Camshaft - EV3 - Evolution Big Twin

Camshaft - EV3 - Evolution Big TwinFeaturesCapable of 6000+ rpm with stock springs and no valve floatA 6000+ rpm cam for stock heads and springs with hydraulic liftersBolt-in cam for light bikes (FXRS, etc.) adds significant mid-range power without...

Andrews #291138 - Cam - EV38 Grind - Evolution Big Twin

Longer exhaust cam lowers oil temperature.Great mid-range and high-end power.Lower lift exhaust for easy installation.Bolt-in for lighter bikes (FXLR, etc.)FeaturesMore mid-range and top-end power for street and drag bikes. These cams work with solid or...

Andrews #291146 - Cam - EV46 Grind - Evolution Big Twin

Bolt-in performance cam with fast open and close ramps.Similar to "EV3" but higher static compression pressure for 4000+ rpm with stock heads and hydraulic lifters.FeaturesMore mid-range and top-end power for street and drag bikes. These cams...

Andrews #291150 - Cam - EV5 Grind - Evolution Big Twin

Designed for mildly stroked motors or motors with head work done.Works with stock hydraulics, with stock spring travel set to 0.560" minimum.Excellent power in the 2500-6500 rpm range.FeaturesMore mid-range and top-end power for street and drag...

Andrews #291151 - Camshaft - EV51 - Evolution Big Twin

Camshaft - EV51 - Evolution Big TwinFeaturesCapable of 6000+ rpm with stock springs and no valve floatEasy installationWorks with stock hydraulicsLong duration for modified street motorsPower range from 3000-6500 rpmMade in the USAMust check coil bind,...

Andrews #291159 - Camshaft - EV59 - Evolution Big Twin

Camshaft - EV59 - Evolution Big TwinFeaturesCapable of 6000+ rpm with stock springs and no valve floatDesigned for modified 80" to 88" motorsVery broad powerband to 6000 rpmMade in the USAMust check coil bind, valve-to-valve clearance and...

Andrews #291170 - Camshaft - EV7 - Evolution Big Twin

Camshaft - EV7 - Evolution Big TwinFeaturesCapable of 6000+ rpm with stock springs and no valve floatExcellent in the 2800-6500 rpm rangeDesigned for big-inch stroker motors with head workUses stock springsWorks with stock hydraulics, with stock spring...

Andrews #291172 - Camshaft - EV72 - Evolution Big Twin

Camshaft - EV72 - Evolution Big TwinFeaturesCapable of 6000+ rpm with stock springs and no valve floatFor use with Andrews springs and titanium collarsOK for use with hydraulic liftersVery broad powerband, 2800-6000 rpmUpgraded EV7, for 92" or...

Andrews #298120 - V2 Grind Cams - Evolution - XL

V2 Grind Cams - Evolution - XLFeaturesCams run to 6500 rpm with stock hydraulic lifters; recommend solids not be installedStock base circle sizes allow the use of stock pushrodsV2 and N2 are bolt-in cams for stock applications designed for up to 6000...

Andrews #298125 - N2 Grind Cam - XL

N2 Grind Cam - XLFeaturesCams run to 6500 rpm with stock hydraulic lifters; recommend solids not be installedStock base circle sizes allow the use of stock pushrodsMade in the U.S.A.SpecsRiding StyleStreetExhaust Lobe Centerline104°Intake...

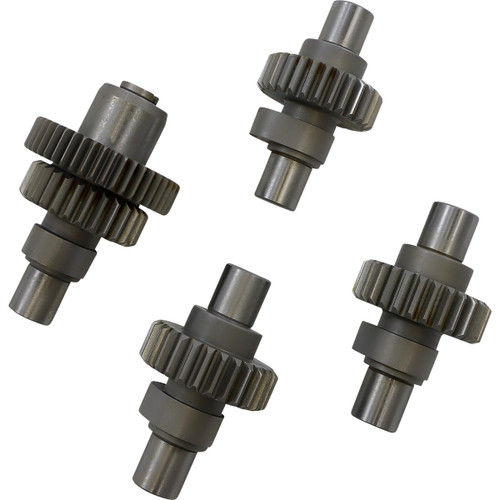

Andrews #298130 - N2 Grind Cam - XL

N2 Grind Cam - XLFeaturesCams run to 6500 rpm with stock hydraulic lifters; recommend solids not be installedStock base circle sizes allow the use of stock pushrodsMade in the U.S.A.SpecsApplicationExhaustExhaust Close18°GrindN2Intake Duration240°Intake...

Andrews #298135 - CAM SET N3 05-17 XL

CAM SET N3 05-17 XLFeaturesCams run to 6500 rpm with stock hydraulic lifters; recommend solids not be installedStock base circle sizes allow the use of stock pushrodsN3 cams are bolt-in for 05-16 883/1200 engines with stock springs and heads (cams for...

Andrews #298140 - V4 Grind Cam - Evolution - XL

V4 Grind Cam - Evolution - XLFeaturesCams run to 6500 rpm with stock hydraulic lifters; recommend solids not be installedStock base circle sizes allow the use of stock pushrodsMade in the U.S.A.SpecsIntake Duration256°Intake Lobe Centerline98°Product...
