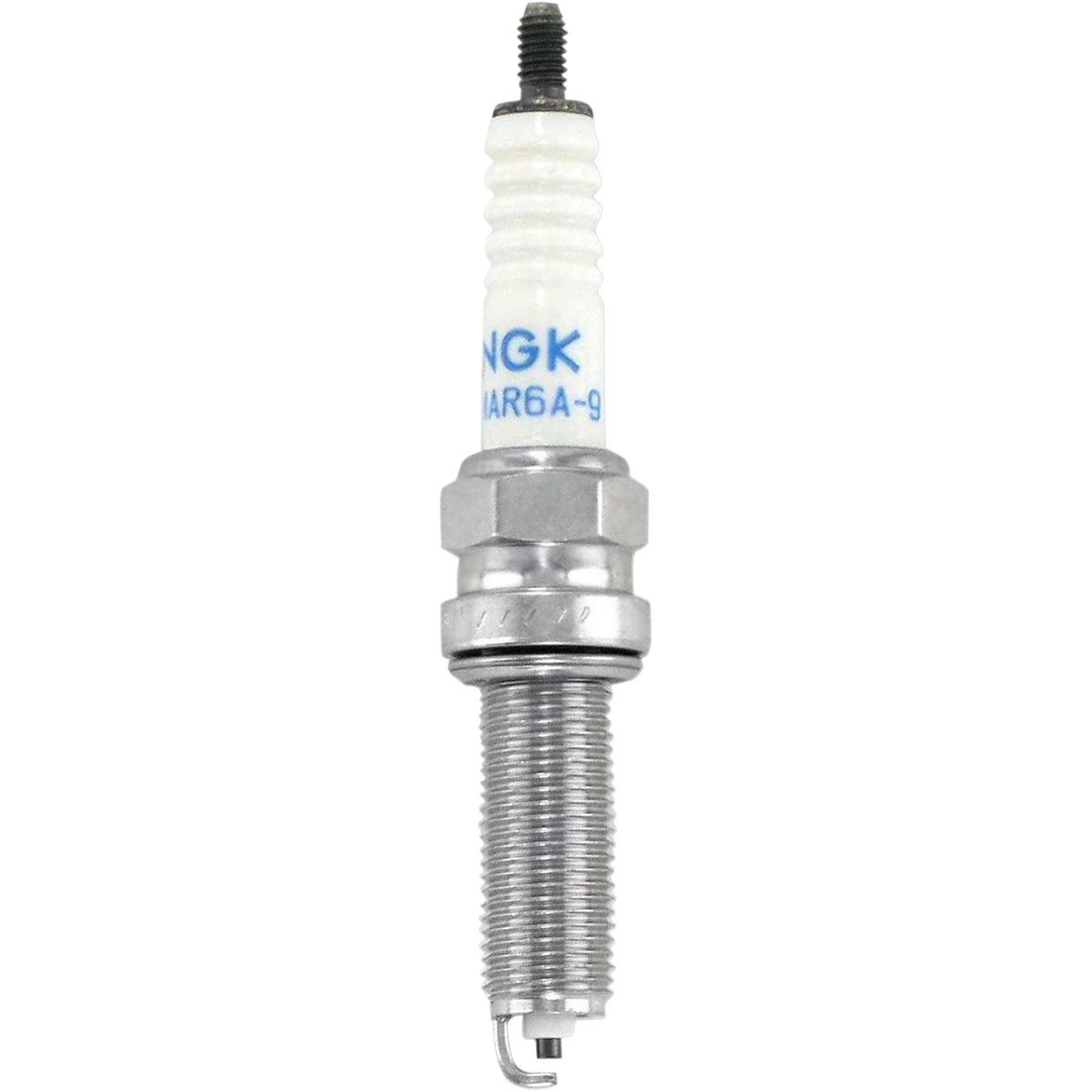

Spark Plug - LMAR6A-9
Features
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
Specs
| Electrical Resistance | 5k Ohms |
| Ground Electrode Configuration | Single |
| Product Name | Spark Plug |
| Style | Standard |
| Center Electrode Type | Standard |
| Electrode Tip Material | Nickel Alloy |
| Model | LMAR6A-9 |
| Thread Reach | 26.5 mm |
| Heat Range | 6 |
| Spark Gap | 0.9 mm |
| Units | Each |
| Center Electrode Projection | Non-Projected |
| Type | Resistor |
| Ground Electrode Shape | Standard |
| Hex Size | 14.3 mm |
| Terminal Configuration | Threaded Stud |
| Riding Style | ATV |
| Year | Make | Model |
|---|---|---|
| 2009 | Yamaha | YFM550 Grizzly FI 4x4 Auto |
| 2009 | Yamaha | YFM550FG Grizzly FI 4WD [IRS] |
| 2009 | Yamaha | YFM700F Grizzly Fi 4WD EPS [IRS] |
| 2009 | Yamaha | YFM700G Grizzly Fi 4WD [IRS] |
| 2010 | Yamaha | YFM550 Grizzly FI 4x4 Auto |
| 2010 | Yamaha | YFM550FG Grizzly FI 4WD [IRS] |
| 2010 | Yamaha | YFM700F Grizzly Fi 4WD EPS [IRS] |
| 2010 | Yamaha | YFM700G Grizzly Fi 4WD [IRS] |
| 2011 | Yamaha | YFM550 Grizzly FI 4x4 Auto |
| 2011 | Yamaha | YFM550 Grizzly FI 4x4 Auto EPS |
| 2011 | Yamaha | YFM550FG Grizzly FI 4WD [IRS] |
| 2011 | Yamaha | YFM700F Grizzly Fi 4WD EPS [IRS] |
| 2011 | Yamaha | YFM700G Grizzly Fi 4WD [IRS] |
| 2012 | Yamaha | YFM550 Grizzly FI 4x4 Auto |
| 2012 | Yamaha | YFM550 Grizzly FI 4x4 Auto EPS |
| 2012 | Yamaha | YFM550FG Grizzly FI 4WD [IRS] |
| 2012 | Yamaha | YFM550FGP Grizzly FI 4WD EPS [IRS] |
| 2012 | Yamaha | YFM700F Grizzly Fi 4WD EPS SE [IRS] |
| 2012 | Yamaha | YFM700F Grizzly Fi 4WD EPS [IRS] |
| 2013 | Yamaha | YFM 550 Grizzly 4x4 |
| 2013 | Yamaha | YFM 550 Grizzly EPS 4x4 |
| 2013 | Yamaha | YFM550FG Grizzly FI 4WD [IRS] |
| 2013 | Yamaha | YFM550FGP Grizzly FI 4WD EPS [IRS] |
| 2013 | Yamaha | YFM700F Grizzly Fi 4WD EPS SE [IRS] |
| 2013 | Yamaha | YFM700F Grizzly Fi 4WD EPS [IRS] |
| 2014 | Yamaha | YFM550 Grizzly FI 4x4 Auto |
| 2014 | Yamaha | YFM550 Grizzly FI 4x4 Auto EPS |
| 2014 | Yamaha | YFM550FG Grizzly FI 4WD [IRS] |
| 2014 | Yamaha | YFM550FGP Grizzly FI 4WD EPS [IRS] |
| 2016 | Yamaha | YFM700 Grizzly FI 4x4 Auto EPS |
| 2017 | Yamaha | YFM700 Grizzly FI 4x4 Auto EPS |
| 2018 | Yamaha | YFM700 Grizzly EPS |
| 2019 | Yamaha | YFM700 Grizzly EPS |
| 2020 | Yamaha | YFM700 Grizzly EPS |
Fitment details provided by supplier.
Product Videos
Custom Field
Type Resistor
