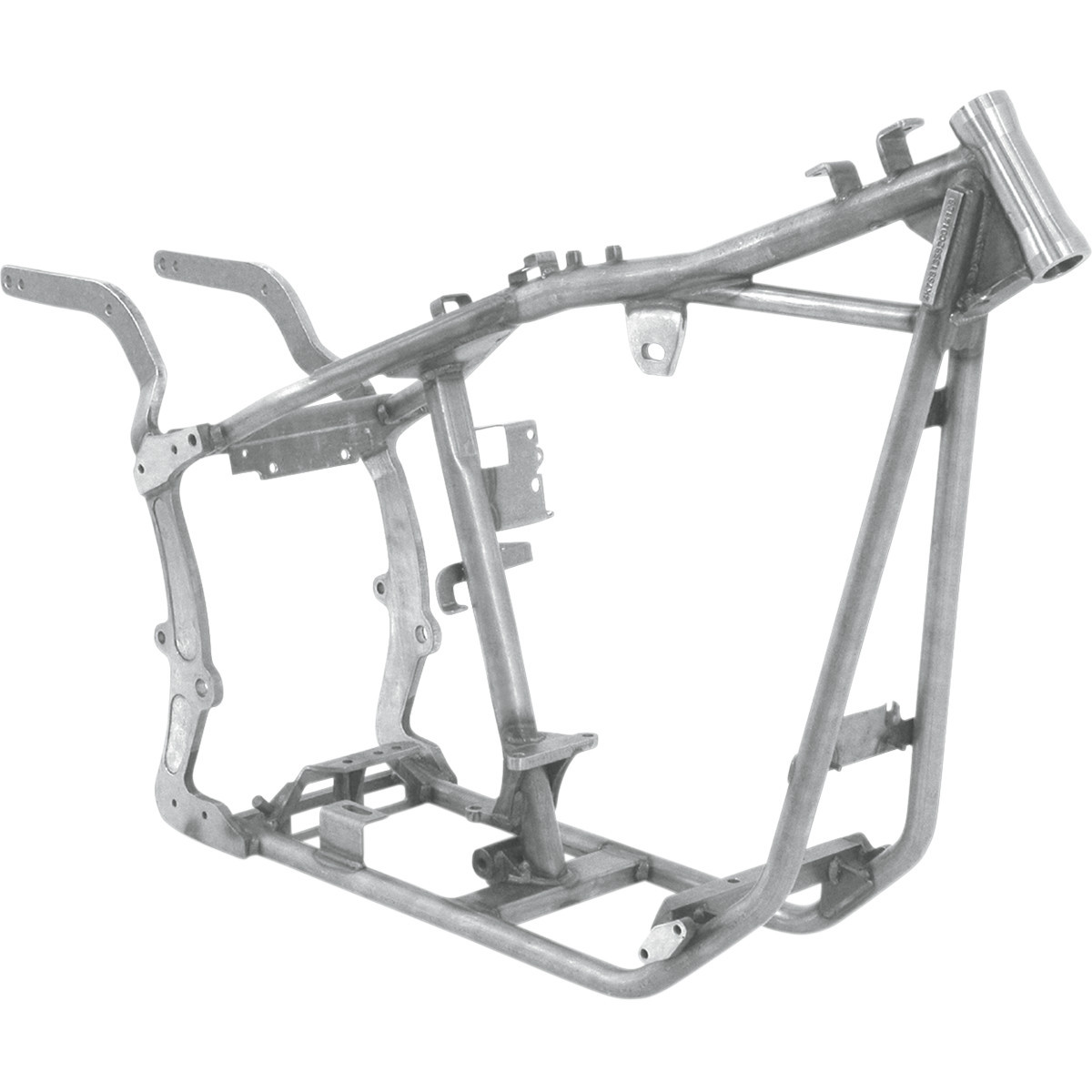

Softail Frame - Evolution Style
Features
- Constructed of 1-1/8" DOM steel tubing, mandrel bent, TIG and MIG welded
- 30° rake, 0" stretch
- Accepts OEM neck bearings and cups
- Designed for 5- and 6-speed transmissions; transmission plate (sold separately)
- Accepts 86-99 Softail motors with clearance for cylinders up to .200" taller than a stock Evolution motor
- Comes equipped with stock coil mounts, oil tank mounts, forward control mounts and accepts Softail-style flatside gas tanks
- Swingarm not included; accepts stock or most aftermarket swingarms
- Made in the U.S.A.
Specs
| Down Tube Stretch | 0 mm |
| Riding Style | Street |
| Backbone Stretch | 0" |
| Style | Evolution |
| Type | Duplex Cradle |
| Rake Degree | 30° |
| Units | Each |
| Product Name | Frame |
| Material | Steel |
| Rear Suspension Style | Softail |
Product Videos
Custom Field
Type Duplex Cradle
Material Steel
