Requires Screamin' Eagle module on fuel-injected models.
VM-Ring package or VMF-Ring package is available for this piston kit.
Features
- Forged from high-silicon aluminum alloy for maximum strength and dependability
- Twin Cam pistons have Armor Plating which improves ring seal, eliminates ring micro-welding and improves the piston's ability to defend against detonation damage

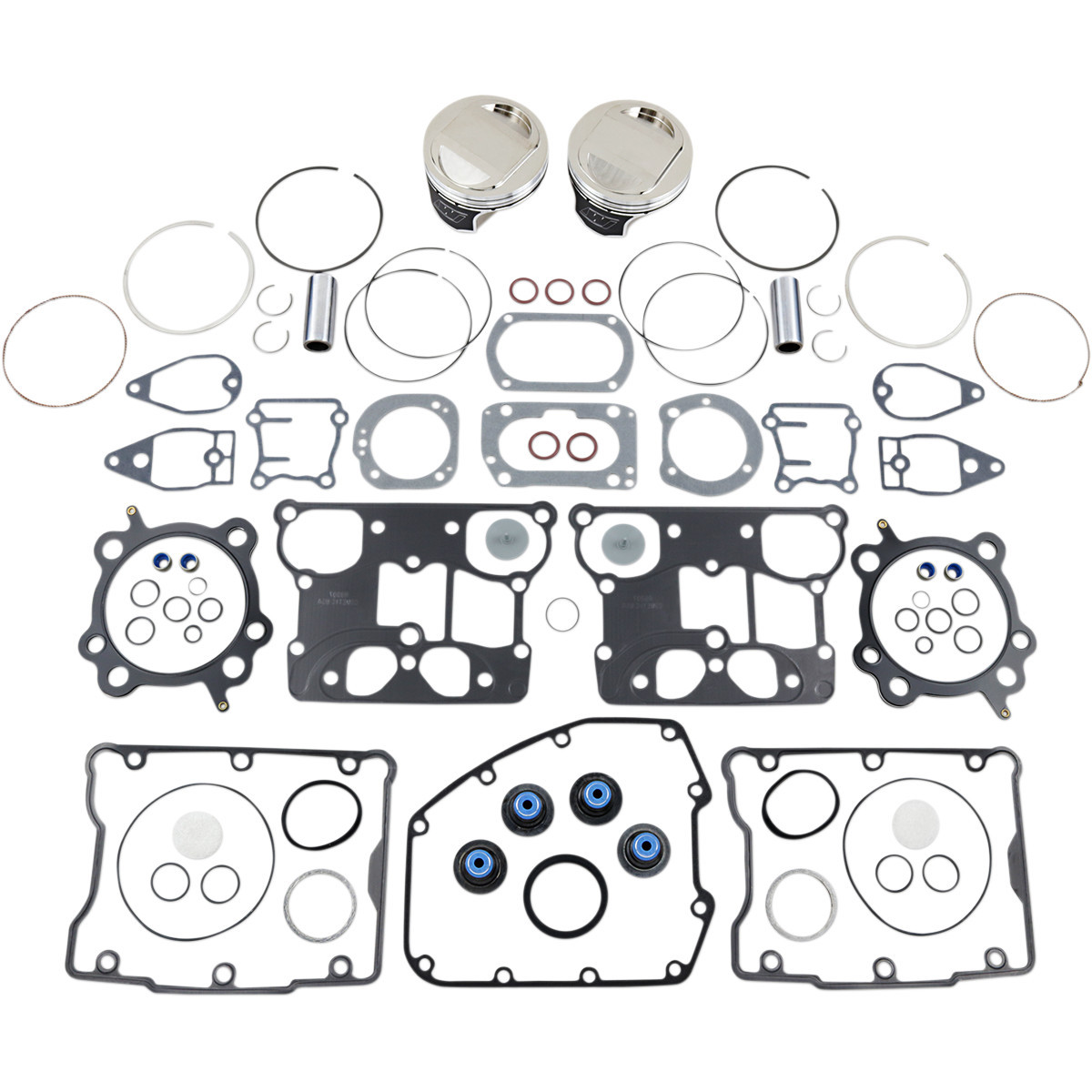

- Kit includes pistons, retainer clips, chrome piston pins, top end gasket kit, and VM-Rings package (1.2 mm steel, positive twist, gas nitrided top ring, 1.2 mm cast iron, taper under-hook scraper ring and 2.0 mm three piece, flex vent oil ring with steel chrome-faced rails); VMF- Ring package includes 3.0 mm oil ring instead of 2.0 mm oil ring
- Pistons are made in the USA
- Wiseco pistons that use VM-rings can only be fitted with Wiseco VM-rings.
Specs
| Compression Ratio | 10.5:1 |
| Skirt Coating | ArmorGlide® |
| Units | Kit |
| Displacement | 1550 cc |
| Type | Top End |
| Bore Size | 3.885" |
| Product Name | Rebuild Kit |
| Bore - Oversize | +0,010" |
| Engine Type | 4-Stroke |
| Piston Diameter | 3.8825" |
| Piston Material | 2618 Aluminum Alloy |
| Riding Style | Street |
| Color/Finish | Aluminum |
| Year | Make | Model |
|---|---|---|
| 1999 | Harley-Davidson | FLST |
| 1999 | Harley-Davidson | FLT |
| 1999 | Harley-Davidson | FXD |
| 1999 | Harley-Davidson | FXST |
| 2000 | Harley-Davidson | FLST |
| 2000 | Harley-Davidson | FLT |
| 2000 | Harley-Davidson | FXD |
| 2000 | Harley-Davidson | FXST |
| 2001 | Harley-Davidson | FLST |
| 2001 | Harley-Davidson | FLT |
| 2001 | Harley-Davidson | FXD |
| 2001 | Harley-Davidson | FXST |
| 2002 | Harley-Davidson | FLST |
| 2002 | Harley-Davidson | FLT |
| 2002 | Harley-Davidson | FXD |
| 2002 | Harley-Davidson | FXST |
| 2003 | Harley-Davidson | FLST |
| 2003 | Harley-Davidson | FLT |
| 2003 | Harley-Davidson | FXD |
| 2003 | Harley-Davidson | FXST |
| 2004 | Harley-Davidson | FLST |
| 2004 | Harley-Davidson | FLT |
| 2004 | Harley-Davidson | FXD |
| 2004 | Harley-Davidson | FXST |
| 2005 | Harley-Davidson | FLST |
| 2005 | Harley-Davidson | FLT |
| 2005 | Harley-Davidson | FXD |
| 2005 | Harley-Davidson | FXST |
| 2006 | Harley-Davidson | FLST |
| 2006 | Harley-Davidson | FLT |
| 2006 | Harley-Davidson | FXD |
| 2006 | Harley-Davidson | FXST |
Fitment details provided by supplier.
