Product Description
Features:

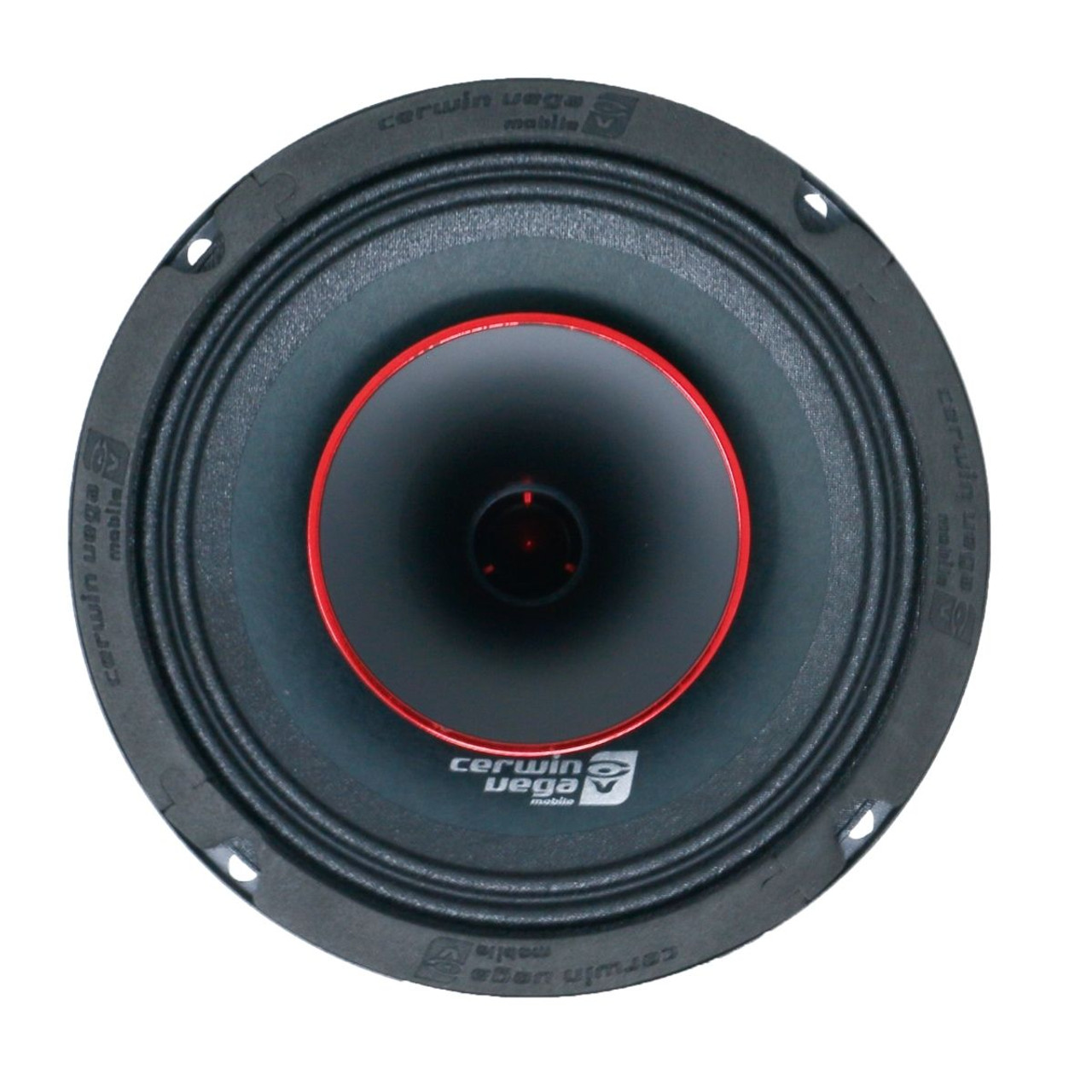

- 6.5? PRO Full-Range Co-Ax Horn Speaker, Pair
- Ferrite Strontium High Temp Magnet Structure
- Heavy Duty Stamped Steel Basket
- Advanced Voice Coil Heat Sink Design for better Heat? ? Dissipation
- 1.5? Double Layer High Temp Voice Coil with Black Coated Voice Coil former for Woofer
- 1.0? Single Layer High Temp Voice Coil with Voice Coil former for the Tweeter
- 12dB 2nd Order Filter Crossover for better Protection of?the Tweeter
| Model | PH654 |
|---|---|
| Nominal Impedance (ohms) | N/A |
| Frequency Response | 110Hz -18Khz |
| Voice Coil Diameter (inch/mm) | 1.5" |
| Power Handling (RMS/Peak) | 150W RMS/300 MAX |
| Fs-Free Air Resonance (Hz) | 105.2 |
| Vas (Liter) | 6.4 |
| Qts | 0.61 |
| Sensitivity (1W/1M) | 101dB |
| Xmax - Inch(mm) | 1.0 |
| Mounting Diameter (inch/mm) | 5.67 (144) |
| Mounting Depth | 3.09 (78.5) |
Product Videos
Custom Field
Speaker Size 6.5"
