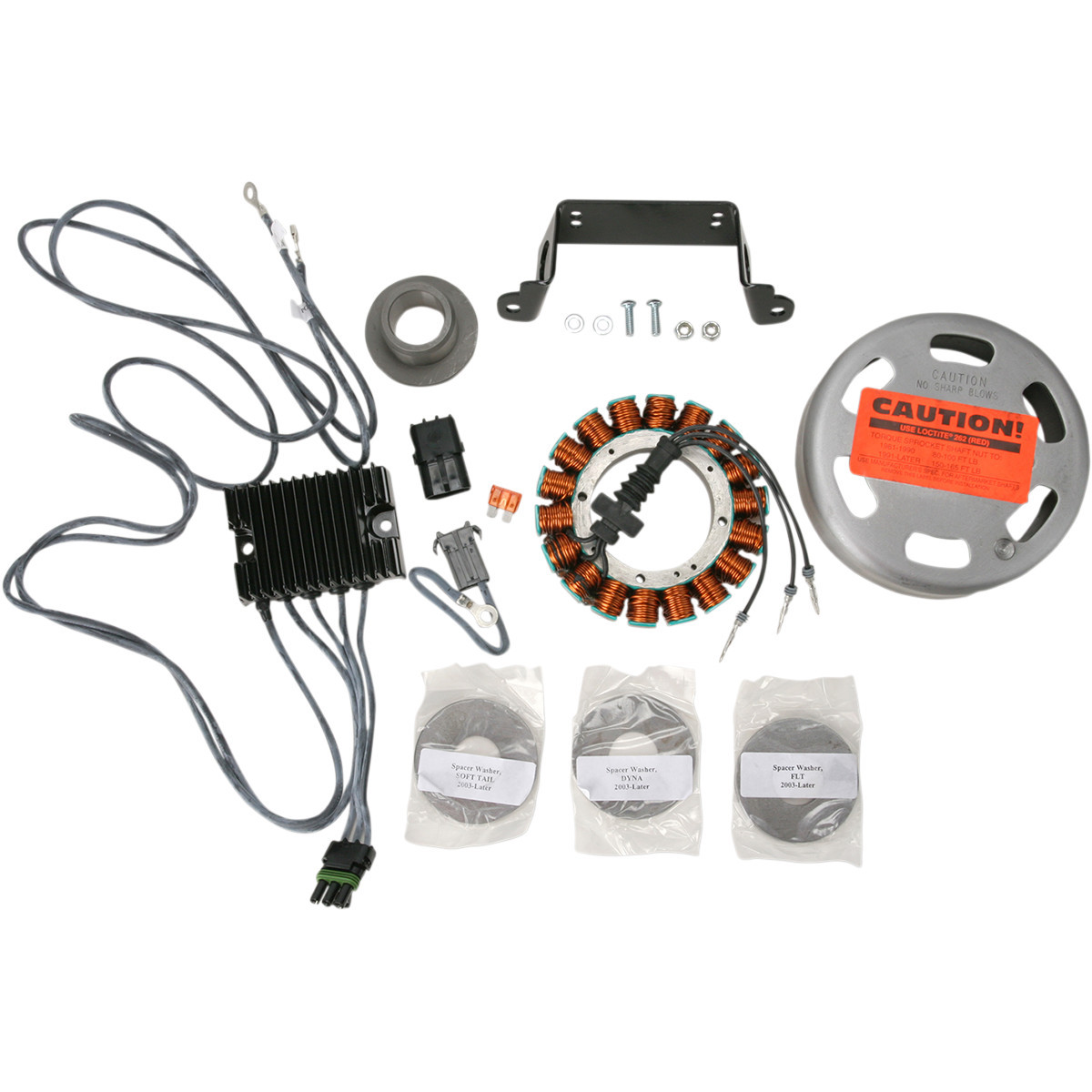

Charging - System - 40A
Features
- Provide 25 A at idle and 40 A continuously above 2800 rpm
- Unique narrow rotor and stator fit into Softail/Dyna/FLT primary cases as used by most custom builders and the voltage regulator bolts on the stock location without any frame modifications
- Precision-balanced vented rotor keeps the stator cooler in closed primary systems to maintain maximum output under all high-current draw conditions
- Custom-designed flanged seal spacer provides maximum support for the rotor
- Voltage regulator output is calibrated to 14.25 V from idle on up
- Ideal for fuel-injected engines and bikes with overdrive-type transmissions
Specs
| Riding Style | Street |
| Units | Each |
| Battery Voltage | 12 V |
| Alternator Phase Type | Three-Phase |
| Amps | 40 A |
| Product Name | Charging System |
