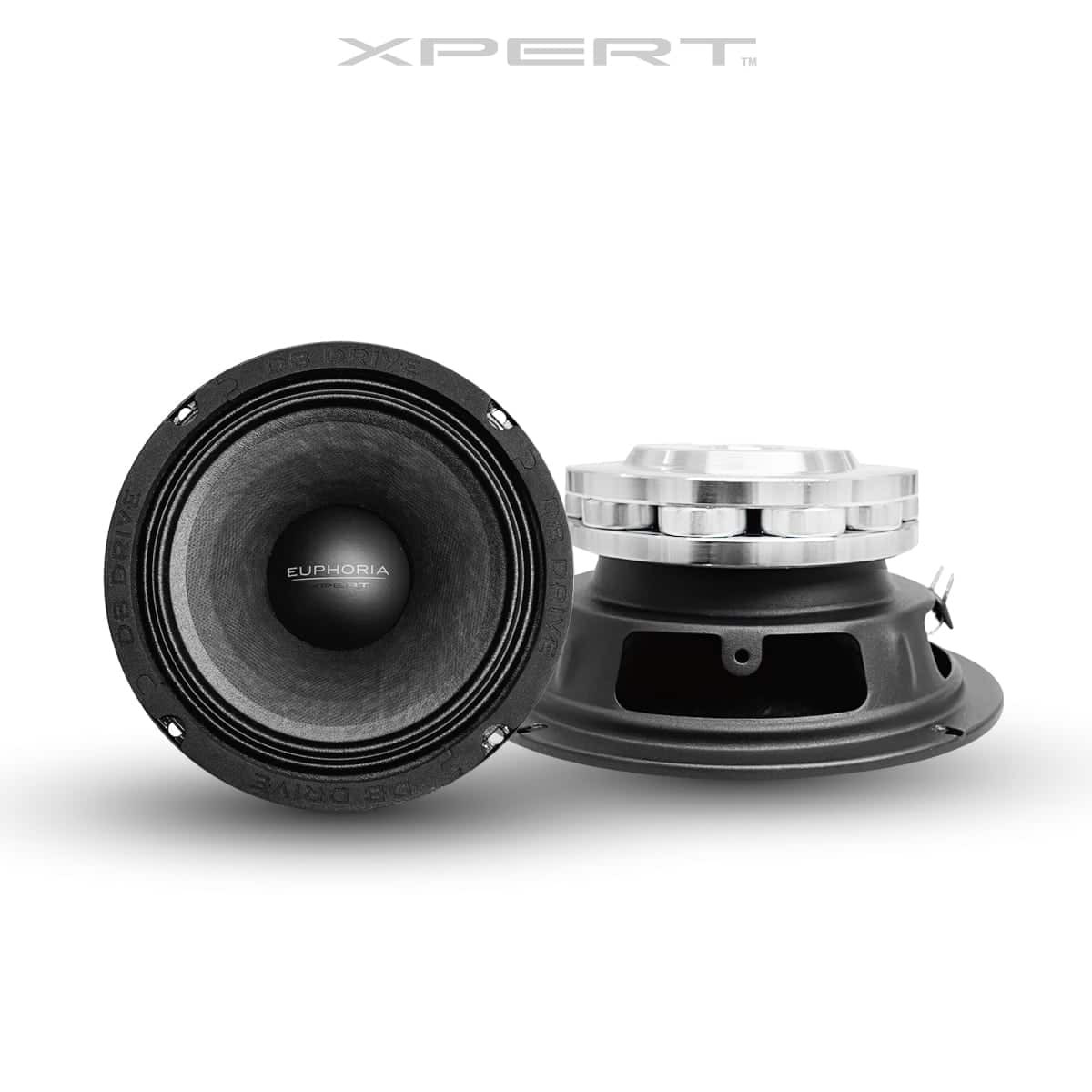

Product Description
- 2? (51mm) Voice Coil
- Neodymium 10 Piece Radially Equalized Magnet Assembly
- IP52 Rated Paper Cone With Treated Cloth Surround
- Heavy Gauge Stamped Steel Basket
| T/S Parameters | |
|---|---|
| Resonant Frequency (fs) | 119.2Hz |
| D.C. Voice Coil Resistance (Re) | 3.2? |
| Mechanical Quality Factor (Qms) | 8.01 |
| Electrical Quality Factor (Qes) | 0.45 |
| Total Quality Factor (Qts) | 0.43 |
| Compliance Equivalent Volume (Vas) | 2.9L |
| Mechanical Compliance (Cms) | 0.12 mm/N |
| Efficiency (1W/1M) | 98.1 dB |
| Additional Specs | |
|---|---|
| Nominal Impedance | 4? |
| Power Handling | 200 Watts |
| Dynamic Wattage | 400 Watts |
| Sensitivity (1w/1m) | 98.1 dB |
| Voice Coil Diameter | 2.0? (51mm) |
| Dimensions | |
|---|---|
| Mounting Depth: | 2.85? (72.5mm) |
| Mounting Diameter: | 5.62? (143mm) |
Product Videos
Custom Field
Speaker Size 6.5"
