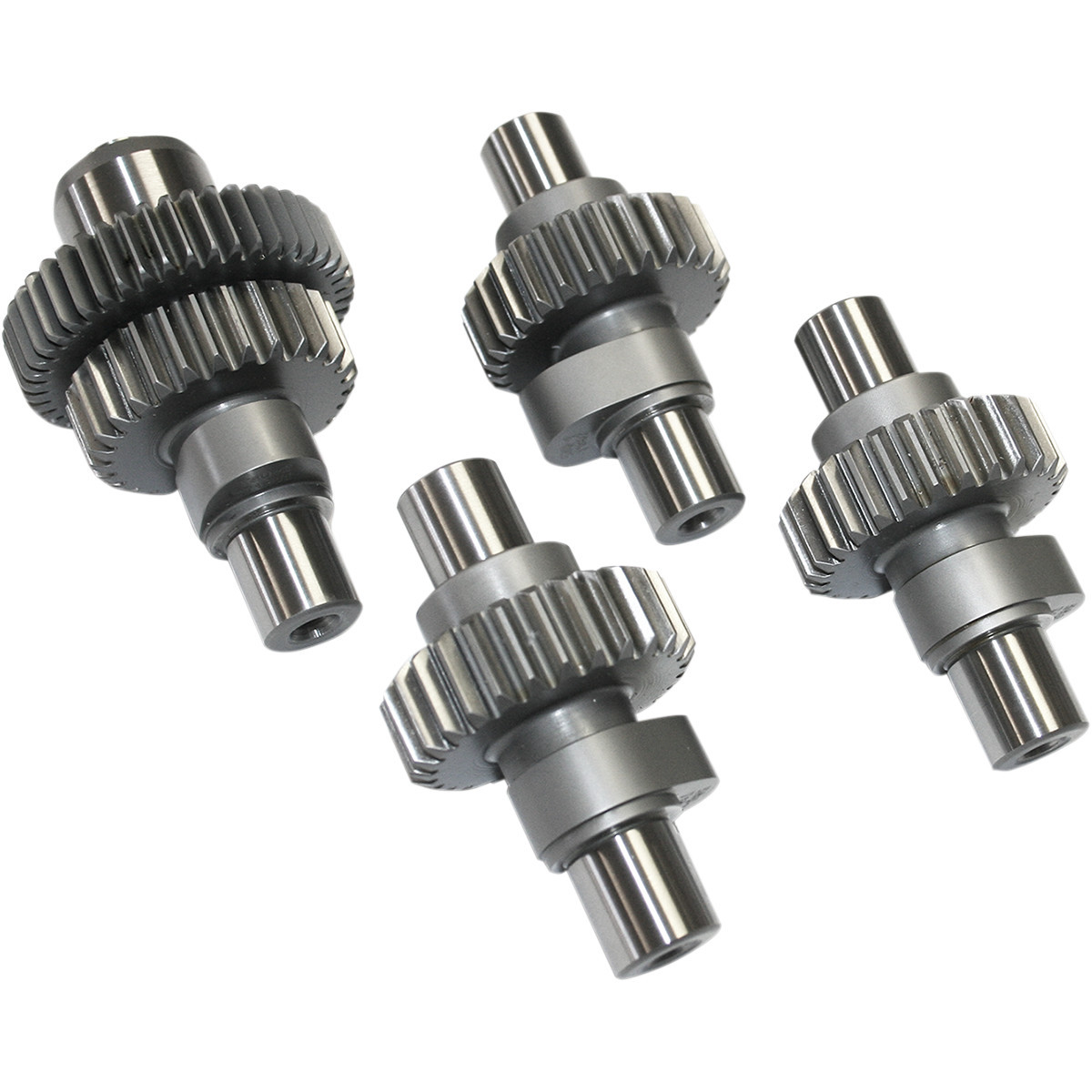

Reaper Camshaft - 580 Series - Buell | XL (except RH Sportster)
Features
- Designed for riders who want more horsepower and the powerband higher in the RPM range
- Higher compression also recommended, along with performance pushrods and lifters
- High-flow intake and performance exhaust required
- Rpm range: 2400-6900+
- Overlap: 42
- Made in the USA
- Requires high-lift valve springs see Fueling Beehive® Econo, Endurance or High Load valve springs.
- Most cam compartments will need to be machined to make clearance for 580 High Lift cams.
- Does not fit XR models
Specs
| Exhaust Open | 67° |
| Exhaust Close | 21° |
| Intake Close | 57° |
| Intake Lift at TDC | 0.191" |
| Exhaust Lobe Centerline | 113° |
| Model | Reaper |
| Application | Intake |
| Intake Lift | 0.580" |
| Product Name | Camshaft |
| Units | Set |
| Exhaust Duration | 268° |
| Exhaust Lift at TDC | 0.180" |
| Intake Lobe Centerline | 108° |
| Exhaust Lift | 0.580" |
| Grind | 580 Series |
| Intake Duration | 258° |
| Riding Style | Street |
| Type | Gear |
| Intake Open | 21° |
| Year | Make | Model |
|---|---|---|
| 2000 | Buell | Blast |
| 2000 | Buell | M2 Cyclone |
| 2000 | Buell | S3 Thunderbolt |
| 2000 | Buell | S3T Thunderbolt |
| 2000 | Buell | X1 Lightning |
| 2000 | Harley-Davidson | 883 Custom EFI XLC |
| 2000 | Harley-Davidson | Sportster 1200 XLH |
| 2000 | Harley-Davidson | Sportster 883 XLH |
| 2000 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2000 | Harley-Davidson | XL1200S Sportster 1200 Sport |
| 2000 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2000 | Harley-Davidson | XLH883 |
| 2001 | Buell | Blast |
| 2001 | Buell | M2 Cyclone |
| 2001 | Buell | M2 Cyclone Low |
| 2001 | Buell | S3 Thunderbolt |
| 2001 | Buell | S3T Thunderbolt |
| 2001 | Buell | X1 Lightning |
| 2001 | Harley-Davidson | 883 Custom EFI XLC |
| 2001 | Harley-Davidson | Sportster 1200 XLH |
| 2001 | Harley-Davidson | Sportster 883 XLH |
| 2001 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2001 | Harley-Davidson | XL1200S Sportster 1200 Sport |
| 2001 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2001 | Harley-Davidson | XLH883 |
| 2002 | Buell | Blast |
| 2002 | Buell | M2 Cyclone |
| 2002 | Buell | M2L Cyclone |
| 2002 | Buell | S3 Thunderbolt |
| 2002 | Buell | S3T Thunderbolt |
| 2002 | Buell | X1 Lightning |
| 2002 | Buell | X1W White Lightning |
| 2002 | Buell | XB9R Firebolt |
| 2002 | Harley-Davidson | 1200 Custom EFI XLC |
| 2002 | Harley-Davidson | 1200 XLCP |
| 2002 | Harley-Davidson | 883 Custom EFI XLC |
| 2002 | Harley-Davidson | 883 Roadster EFI XLR |
| 2002 | Harley-Davidson | Sportster 1200 XLH |
| 2002 | Harley-Davidson | Sportster 883 XLH |
| 2002 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2002 | Harley-Davidson | XL1200S Sportster 1200 Sport |
| 2002 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2002 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2002 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 2003 | Harley-Davidson | 1200 Custom EFI XLC |
| 2003 | Harley-Davidson | 1200 XLCP |
| 2003 | Harley-Davidson | 883 Custom EFI XLC |
| 2003 | Harley-Davidson | 883 Roadster EFI XLR |
| 2003 | Harley-Davidson | Sportster 1200 XLH |
| 2003 | Harley-Davidson | Sportster 883 XLH |
| 2003 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2003 | Harley-Davidson | XL1200S Sportster 1200 Sport |
| 2003 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2003 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2003 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 2004 | Harley-Davidson | 1200 Custom EFI XLC |
| 2004 | Harley-Davidson | 883 Custom EFI XLC |
| 2004 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2004 | Harley-Davidson | XL1200R Sportster 1200 Roadster |
| 2004 | Harley-Davidson | XL883 Sportster |
| 2004 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2005 | Harley-Davidson | 1200 Custom EFI XLC |
| 2005 | Harley-Davidson | 883 Custom EFI XLC |
| 2005 | Harley-Davidson | 883 Roadster EFI XLR |
| 2005 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2005 | Harley-Davidson | XL1200R Sportster 1200 Roadster |
| 2005 | Harley-Davidson | XL883 Sportster |
| 2005 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2005 | Harley-Davidson | XL883L Sportster 883 Low |
| 2005 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2006 | Harley-Davidson | 1200 Custom EFI XLC |
| 2006 | Harley-Davidson | 1200 Low EFI XLL |
| 2006 | Harley-Davidson | 1200 Roadster EFI XLR |
| 2006 | Harley-Davidson | 883 Custom EFI XLC |
| 2006 | Harley-Davidson | 883 Low EFI XLL |
| 2006 | Harley-Davidson | 883 Roadster EFI XLR |
| 2006 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2006 | Harley-Davidson | XL1200L Sportster 1200 Low |
| 2006 | Harley-Davidson | XL1200R Sportster 1200 Roadster |
| 2006 | Harley-Davidson | XL883 Sportster |
| 2006 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2006 | Harley-Davidson | XL883L Sportster 883 Low |
| 2006 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2007 | Harley-Davidson | 883 Roadster XLR |
| 2007 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2007 | Harley-Davidson | XL1200L Sportster 1200 Low |
| 2007 | Harley-Davidson | XL1200N Sportster 1200 Nightster |
| 2007 | Harley-Davidson | XL1200R Sportster 1200 Roadster |
| 2007 | Harley-Davidson | XL50 50th Anniversary Sportster |
| 2007 | Harley-Davidson | XL883 Sportster |
| 2007 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2007 | Harley-Davidson | XL883L Sportster 883 Low |
| 2007 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2008 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2008 | Harley-Davidson | XL1200L Sportster 1200 Low |
| 2008 | Harley-Davidson | XL1200N Sportster 1200 Nightster |
| 2008 | Harley-Davidson | XL1200R Sportster 1200 Roadster |
| 2008 | Harley-Davidson | XL883 Sportster |
| 2008 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2008 | Harley-Davidson | XL883L Sportster 883 Low |
| 2009 | Harley-Davidson | 883 EFI XL |
| 2009 | Harley-Davidson | Sportster 1200 X XR |
| 2009 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2009 | Harley-Davidson | XL1200L Sportster 1200 Low |
| 2009 | Harley-Davidson | XL1200N Sportster 1200 Nightster |
| 2009 | Harley-Davidson | XL1200R Sportster 1200 Roadster |
| 2009 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2009 | Harley-Davidson | XL883L Sportster 883 Low |
| 2009 | Harley-Davidson | XL883N Iron 883 |
| 2010 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2010 | Harley-Davidson | XL1200L Sportster 1200 Low |
| 2010 | Harley-Davidson | XL1200N Sportster 1200 Nightster |
| 2010 | Harley-Davidson | XL1200X Forty-Eight |
| 2010 | Harley-Davidson | XL883L Sportster 883 Low |
| 2010 | Harley-Davidson | XL883N Iron 883 |
| 2010 | Harley-Davidson | XR1200 |
| 2010 | Harley-Davidson | XR1200X |
| 2011 | Harley-Davidson | 1200 XLCP |
| 2011 | Harley-Davidson | Sportster 1200 XR |
| 2011 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2011 | Harley-Davidson | XL1200L Sportster 1200 Low |
| 2011 | Harley-Davidson | XL1200N Sportster 1200 Nightster |
| 2011 | Harley-Davidson | XL1200X Forty-Eight |
| 2011 | Harley-Davidson | XL883L SuperLow |
| 2011 | Harley-Davidson | XL883N Iron 883 |
| 2011 | Harley-Davidson | XR1200X |
| 2012 | Harley-Davidson | 1200 XLCP |
| 2012 | Harley-Davidson | Sportster 1200 XR |
| 2012 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2012 | Harley-Davidson | XL1200N Sportster 1200 Nightster |
| 2012 | Harley-Davidson | XL1200V Seventy-Two |
| 2012 | Harley-Davidson | XL1200X Forty-Eight |
| 2012 | Harley-Davidson | XL883L SuperLow |
| 2012 | Harley-Davidson | XL883N Iron 883 |
| 2012 | Harley-Davidson | XR1200X |
| 2013 | Harley-Davidson | 1200 XLCP |
| 2013 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2013 | Harley-Davidson | XL1200V Seventy-Two |
| 2013 | Harley-Davidson | XL1200X Forty-Eight |
| 2013 | Harley-Davidson | XL883L SuperLow |
| 2013 | Harley-Davidson | XL883N Iron 883 |
| 2014 | Harley-Davidson | 1200 XLCP |
| 2014 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2014 | Harley-Davidson | XL1200T SuperLow 1200T |
| 2014 | Harley-Davidson | XL1200V Seventy-Two |
| 2014 | Harley-Davidson | XL1200X Forty-Eight |
| 2014 | Harley-Davidson | XL883L SuperLow |
| 2014 | Harley-Davidson | XL883N Iron 883 |
| 2015 | Harley-Davidson | 1200 XLCP |
| 2015 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2015 | Harley-Davidson | XL1200T SuperLow 1200T |
| 2015 | Harley-Davidson | XL1200V Seventy-Two |
| 2015 | Harley-Davidson | XL1200X Forty-Eight |
| 2015 | Harley-Davidson | XL883L SuperLow |
| 2015 | Harley-Davidson | XL883N Iron 883 |
| 2016 | Harley-Davidson | 1200 XLCP |
| 2016 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2016 | Harley-Davidson | XL1200CX Roadster |
| 2016 | Harley-Davidson | XL1200T SuperLow 1200T |
| 2016 | Harley-Davidson | XL1200V Seventy-Two |
| 2016 | Harley-Davidson | XL1200X Forty-Eight |
| 2016 | Harley-Davidson | XL883L SuperLow |
| 2016 | Harley-Davidson | XL883N Iron 883 |
| 2017 | Harley-Davidson | 1200 XLCP |
| 2017 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2017 | Harley-Davidson | XL1200CX Roadster |
| 2017 | Harley-Davidson | XL1200T SuperLow 1200T |
| 2017 | Harley-Davidson | XL1200X Forty-Eight |
| 2017 | Harley-Davidson | XL883L SuperLow |
| 2017 | Harley-Davidson | XL883N Iron 883 |
| 2018 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2018 | Harley-Davidson | XL1200CX Roadster |
| 2018 | Harley-Davidson | XL1200NS Iron 1200 |
| 2018 | Harley-Davidson | XL1200X Forty-Eight |
| 2018 | Harley-Davidson | XL1200XS Forty-Eight Special |
| 2018 | Harley-Davidson | XL883L SuperLow |
| 2018 | Harley-Davidson | XL883N Iron 883 |
| 2019 | Harley-Davidson | XL1200C Sportster 1200 Custom |
| 2019 | Harley-Davidson | XL1200CX Roadster |
| 2019 | Harley-Davidson | XL1200NS Iron 1200 |
| 2019 | Harley-Davidson | XL1200X Forty-Eight |
| 2019 | Harley-Davidson | XL1200XS Forty-Eight Special |
| 2019 | Harley-Davidson | XL883L SuperLow |
| 2019 | Harley-Davidson | XL883N Iron 883 |
| 2020 | Harley-Davidson | XL1200CX Roadster |
| 2020 | Harley-Davidson | XL1200NS Iron 1200 |
| 2020 | Harley-Davidson | XL1200X Forty-Eight |
| 2020 | Harley-Davidson | XL883N Iron 883 |
| 2021 | Harley-Davidson | XL1200X Forty-Eight |
| 2021 | Harley-Davidson | XL883N Iron 883 |
| 2022 | Harley-Davidson | XL1200X Forty-Eight |
| 2022 | Harley-Davidson | XL883N Iron 883 |
Fitment details provided by supplier.
