Includes FUELING High Flow billet camplate made from 7075 aluminum which is 50% harder and stronger than the factory or FUELING OE+ camplates
Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
FUELING oil pumps are bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi
Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
FUELING oil pump and camplate combination eliminate common pressure and scavenge issues associated with the factory oiling systems
FUELING M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
Quieter and smoother engine operation
Increase oil pressure, scavenge volume and engine oil flow
42% more scavenge volume with port sizing, matched passages and holes to the engine case
68% more oil volume to the crankshaft and connecting rod bearing
Engine temperatures run 15°-25° cooler
Oil temperatures run 15°-30° cooler
10-30 lbs more psi of oil pressure
Reduces wet sumping, blowby and oily air cleaners
Test results show 2 HP gain and 2 ft/lbs of torque gain to the rear wheel on M-Eight

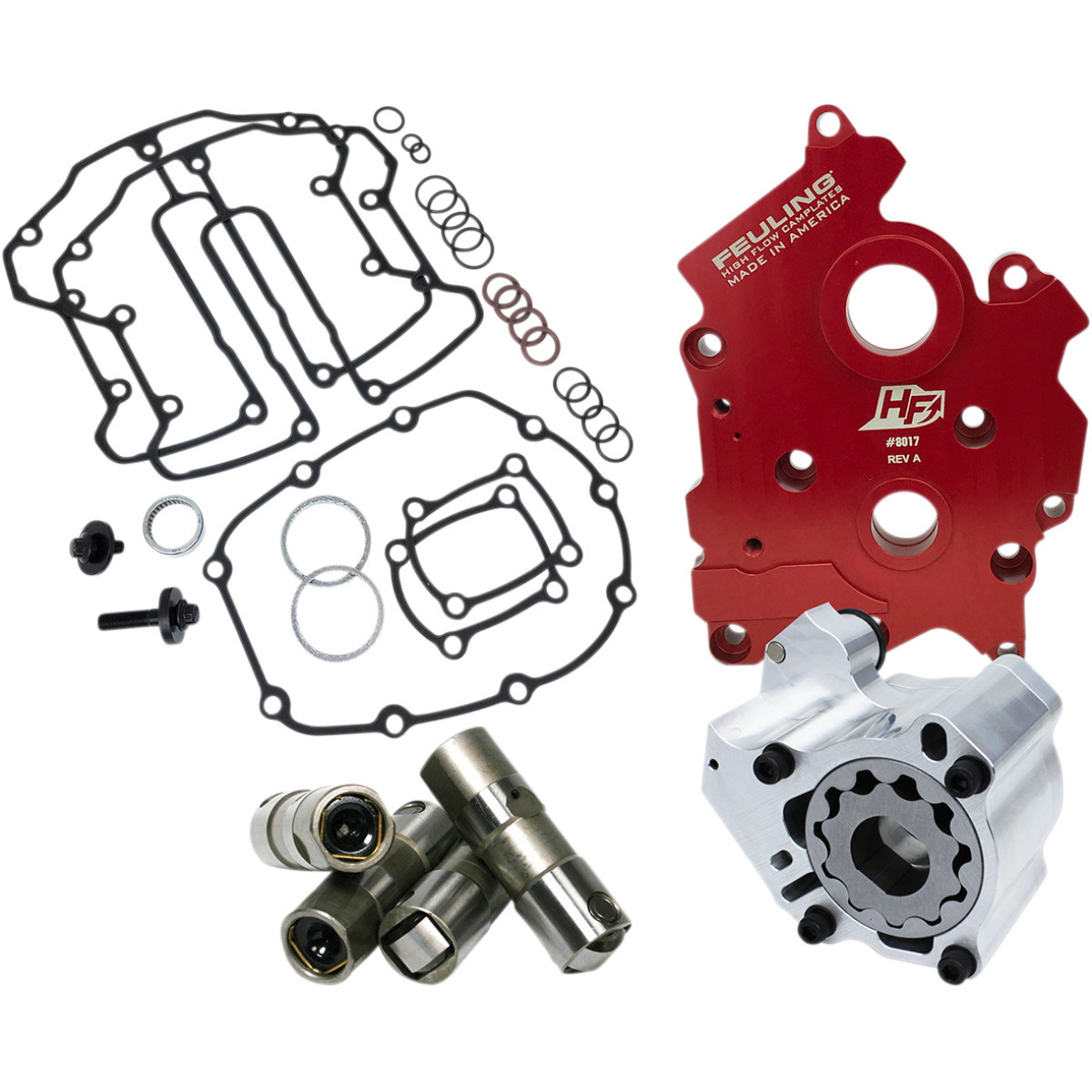

Includes billet 6061 aluminum high volume oil pump, High Flow camplate, HP+ Hydraulic roller lifters, cam installation kit, cam bearing, cam/crank bolts and washers, engine and fastener assembly lube
Made in the USA
Optional FUELING X ARP bolt kit available for the High Flow camplate PART #0932-0192 and HP+ or RS oil pump combo. See PART #2401-0993, optional ARP oil pump bolts do not use washers.
Optional FUELING X ARP oil pump/camplate bolt kit available PART #2401-0993.
FUELING test results show as much as 50% reduction of engine sump oil level.
M-Eight engines must check clearance on front exhaust lifter to camshaft flange fit.
