2100 - 6500 rpm power range.
Includes:
• HP+ High Volume Oil Pump
• High Flow Camplate
• Reaper Series Conversion Camshafts
• HP+ Hydraulic Roller Lifters
• One Piece Pushrods
• Hydraulic Tensioners
• Sprockets
• Roller Chains
• Cam Sprocket Spacers
• Timken Cam Bearings
• Gaskets
• O-Rings
• Exhaust Gaskets
• ARP Fasteners
• Washers
• Moly paste
• Loctite
• Hardware
Features
- Update old mechanical style cams and tensioners to hydraulic tensioner system
- 25°-35° cooler engine temperatures
- 25°-35° cooler engine temperatures
- 15-30 more PSI of oil pressure
- Eliminate wet sumping, blow by and oily air cleaners

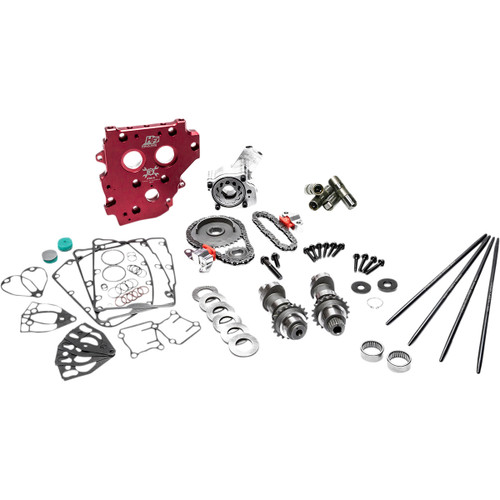

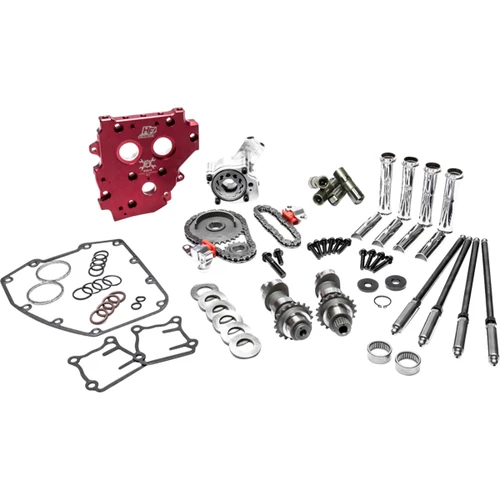

- Kit includes Feuling HP+® high volume oil pump, High Flow camplate, Reaper® series camshafts, HP+ hydraulic roller lifters, quick install adjustable pushrods or one-piece pushrods, Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, washers moly paste, Loctite®, and hardware
- Conversion camshafts for '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals allowing the use of '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation)
- For '99-'06 Twin Cam, except for '06 Dyna.
Specs
| Application | Intake |
| Intake Duration | 240° |
| Intake Lift at TDC | 0.163" |
| Type | Chain Conversion |
| Exhaust Close | 14° |
| Exhaust Open | 61° |
| Grind | 574 Series |
| Exhaust Duration | 255° |
| Features | One Piece Pushrods |
| Intake Close | 45° |
| Exhaust Lobe Centerline | 113.5° |
| Intake Lobe Centerline | 105° |
| Intake Open | 15° |
| Exhaust Lift at TDC | 0.143" |
| Exhaust Lift | 0.574" |
| Intake Lift | 0.574" |
| Model | HP+® |
| Product Name | Camchest Kit |
| Riding Style | Street |
| Units | Kit |
