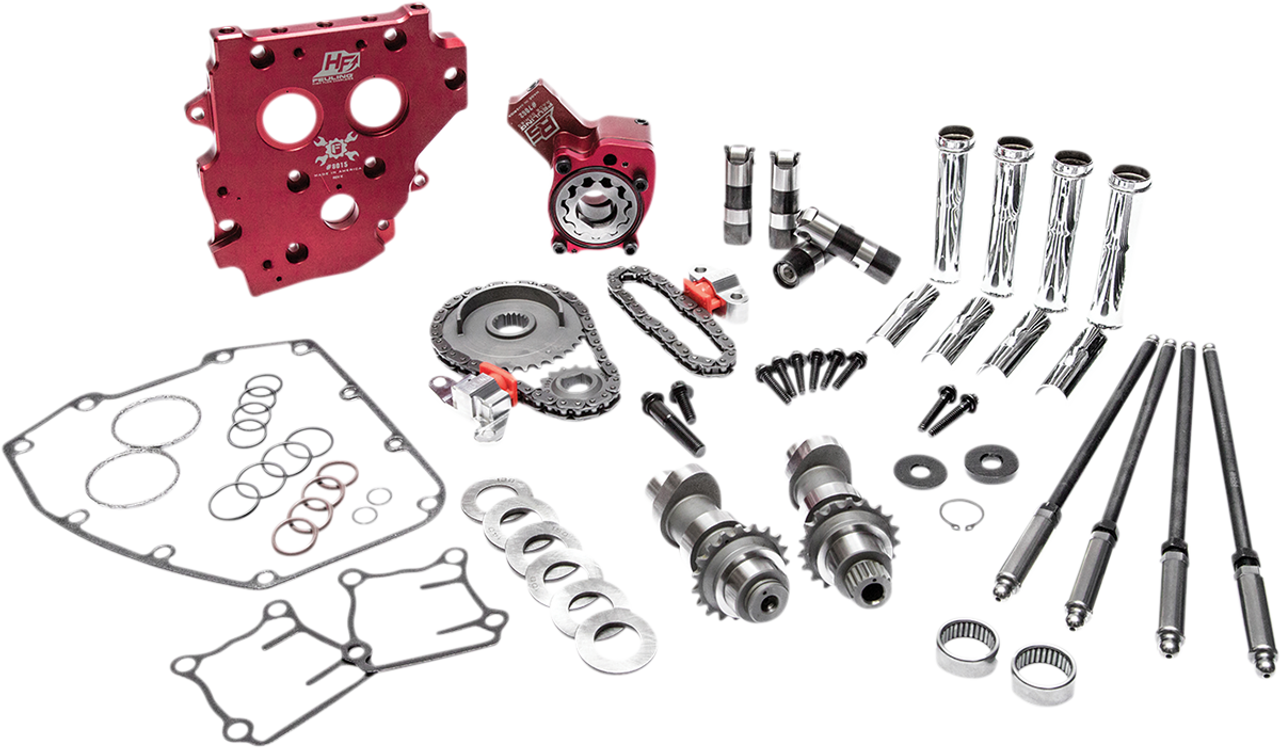

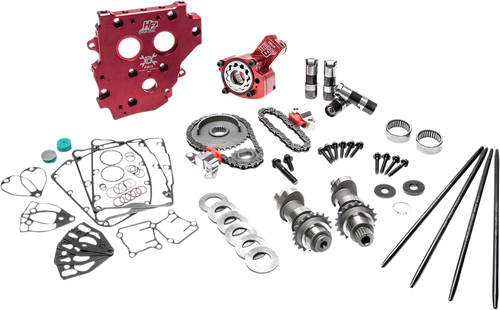

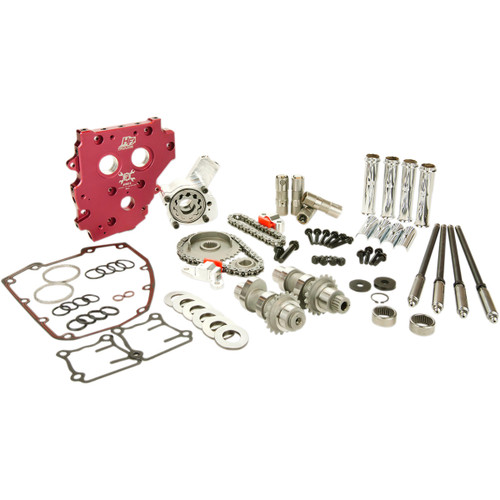

Includes:
• Race Series High Volume Oil Pump
• High Flow Camplate
• Reaper Series Conversion Camshaft
• Race Series Full Travel Hydraulic Lifters
• Quick Install Adjustable Pushrods
• Chrome Pushrod Tubes
• Hydraulic Tensioner Pads and Housings
• Sprockets
• Roller Chains
• Cam Sprocket Alignement Spacers
• Timken Bearings
• Gaskets
• O-Rings
• Exhaust Gaskets
• ARP Fasteners
• Washers
• Moly Paste
• Loctite
• Hardware
Features
- Updates old mechanical style cams and tensioners to new hydraulic tensioner system
- Eliminate wet sumping, blowby and oily air cleaners
- All parts work and function together in total harmony
- 25°-35° cooler engine temperatures
- 15°-30° cooler oil temperatures
- 15 lb - 30 lb of oil pressure
- Kit includes Feuling® Race Series™ high volume oil pump, high flow camplate, REAPER® Series conversion camshafts, Race Series™ hydraulic roller lifters, Quick install adjustable pushrods, sprockets, hydraulic tensioners pads and housings, chains, spacers, Timken® bearings, gaskets, O-rings, hardware, ARP® fasteners, washers, moly lube and Loctite®
- Made in the USA
- Does not fit '06 Dyna.
- '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals allowing the use of the '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation.
Specs
| Exhaust Duration | 255° |
| Exhaust Lobe Centerline | 113.5° |
| Intake Duration | 240° |
| Model | Race Series® |
| Intake Lift at TDC | 0.163" |
| Product Name | Camchest Kit |
| Application | Intake |
| Exhaust Open | 61° |
| Features | Quick Install Adjustable Pushrods |
| Grind | 574 Series |
| Type | Chain |
| Exhaust Lift at TDC | 0.143" |
| Exhaust Lift | 0.574" |
| Riding Style | Street |
| Intake Lift | 0.574" |
| Intake Lobe Centerline | 105° |
| Units | Kit |
| Exhaust Close | 14° |
| Intake Close | 45° |
| Intake Open | 15° |
