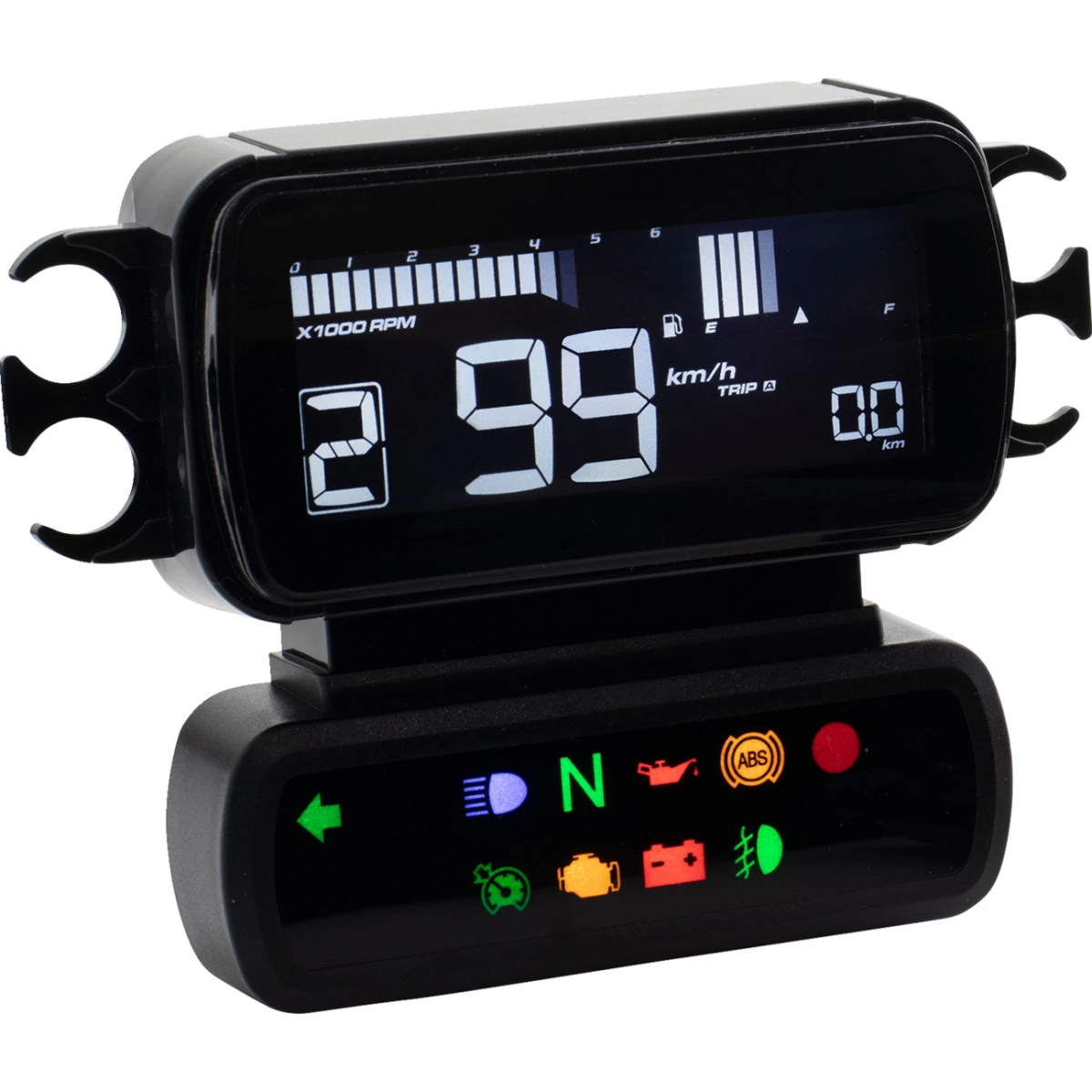

D2 LCD - Multifunction Meter
Features
- High quality plug & play meter that is equipped with an 8-color changeable LCD display

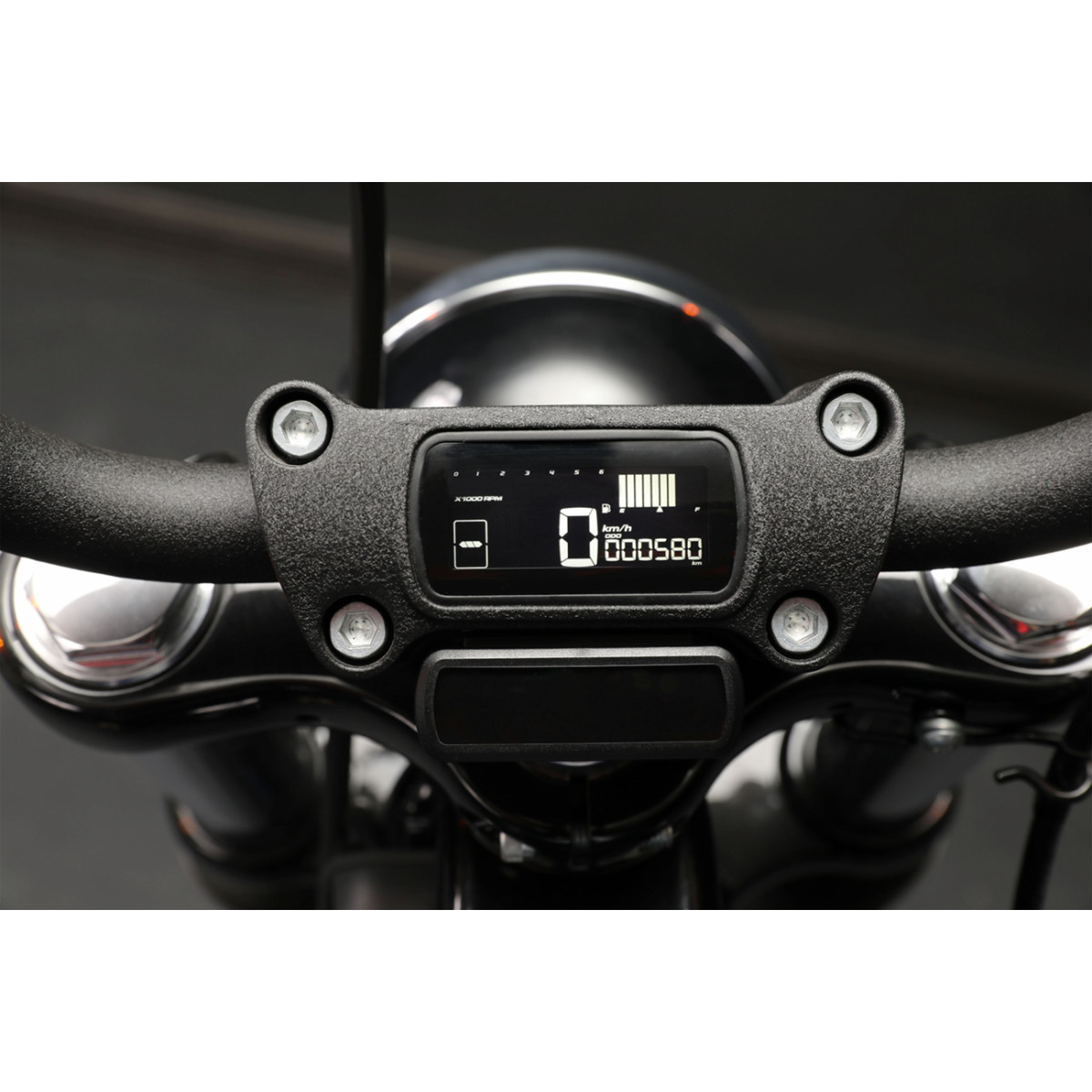

- Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)
- Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
- Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike
- Plugs directly into the stock harness and works directly with CANBUS system
- Display range: 0-124 mph
- Effective temperature range: -4°F-185°F (-20°C-85°C)
- 12VDC battery voltage
- Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
- XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.
Specs
| Face Color | Black |
| Housing Color | Black |
| Length | 3-7/16" |
| Product Name | Gauge |
| Type | Multi-Function Speedometer |
| Calibration | 0 mph - 124 mph |
| Riding Style | Street |
| Depth | 2-5/8" |
| Model | D2 |
| Width | 1-1/16" |
| Units | Kit |
Fitment
2014-2017, 2019-2020, 2022 Harley-Davidson FLHR Road King2019-2022, 2024 Harley-Davidson FLHRXS Road King Special
2015, 2017, 2020-2022 Harley-Davidson XL1200X Forty-Eight
2016-2017, 2020 Harley-Davidson XL1200CX Roadster
2015-2019 Harley-Davidson XL1200C Sportster 1200 Custom
2016-2017, 2019 Harley-Davidson XL883L SuperLow
2016, 2018-2019 Harley-Davidson XL883N Iron 883
2018 Harley-Davidson XL1200XS Forty-Eight Special
2013, 2017 Harley-Davidson FLSTF Fat Boy
2011, 2015, 2017 Harley-Davidson FLSTN Softail Deluxe
2016-2017 Harley-Davidson FXDL Dyna Low Rider
2016-2017 Harley-Davidson FXDLS Low Rider S
2013-2016 Harley-Davidson FLS Softail Slim
2011, 2016 Harley-Davidson FLSTC Heritage Softail Classic
2015-2017 Harley-Davidson FXSB Breakout
2016 Harley-Davidson XL1200T SuperLow 1200T
2015 Harley-Davidson FLD Switchback
2011-2012, 2014-2016 Harley-Davidson FLSTFB Fat Boy Lo
2014-2016 Harley-Davidson FXDB Street Bob
2014-2016 Harley-Davidson FXDWG Dyna Wide Glide
2012-2013 Harley-Davidson FXDC Super Glide Custom
2013, 2016-2017 Harley-Davidson FXDF Fat Bob
2011-2013 Harley-Davidson FXS Blackline
2019-2020 Harley-Davidson XL1200NS Iron 1200
2017 Harley-Davidson FLSTFBS Fat Boy S
2016 Harley-Davidson XL1200V Seventy-Two
Fitment details provided by supplier.
Product Videos
Custom Field
Width 1-1/16"
Type Multi-Function Speedometer
