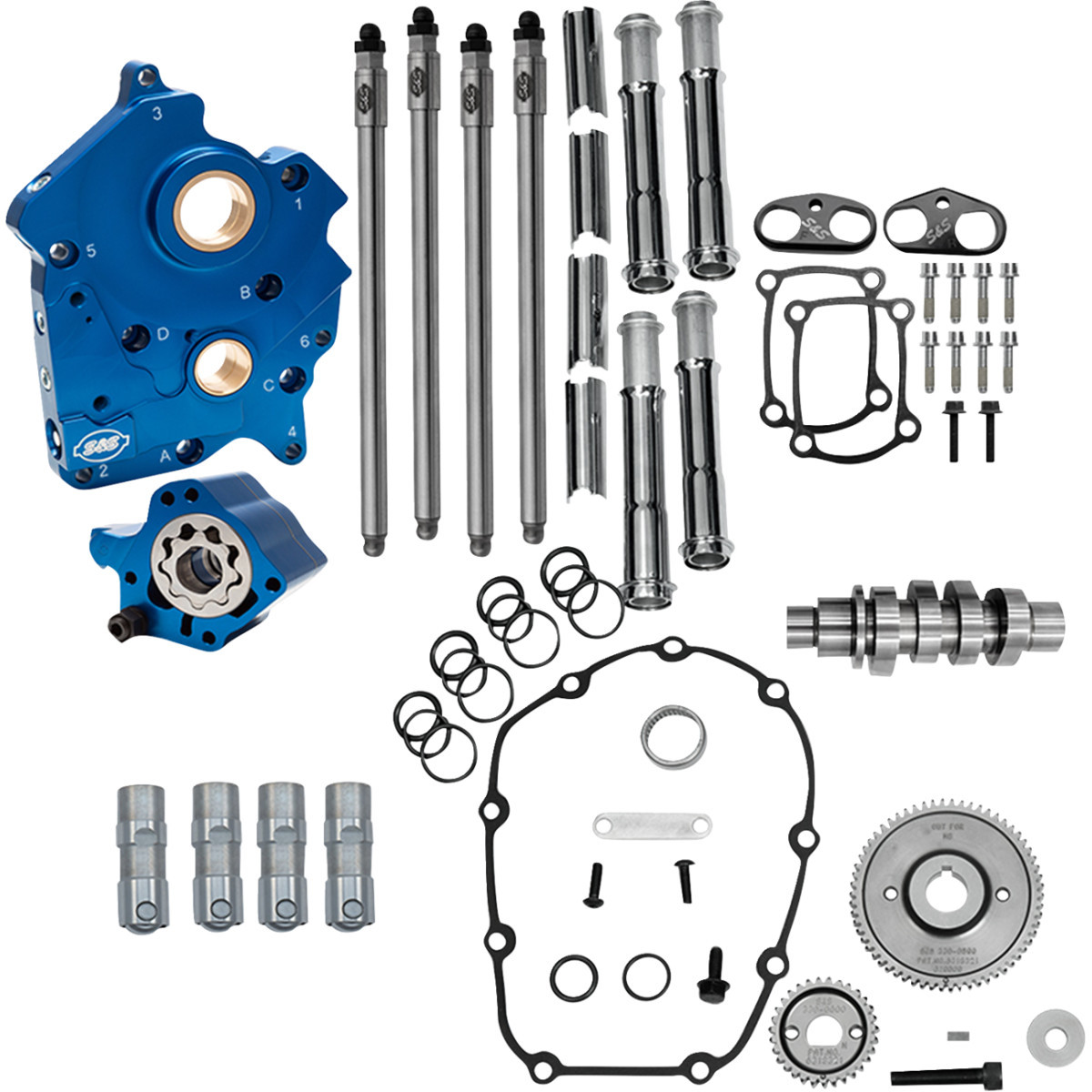

Cam Chest Kit - Water Cooled - Gear Drive - 496 Cam - Chrome Pushrod Tubes - M8
Features
- Improves cam timing accuracy and eliminates the stock cam chain tensioner
- All parts in each kit are matched to ensure superior quality, fit, finish and performance
- Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
- Passage plugs removable for servicing
- Independent scavenge sections for the flywheel cavity and cam chest
- Debris screens in both scavenge pickups
- Increased oil flow capacity on both the feed and scavenge sides
- Adjustable Pressure Relief Valve is adjustable with unit installed in engine
- Magnet in cam chest to help to stop debris from entering oil pump
- S&S Quickee Pushrods with finished pushrod tubes
- S&S premium tappets
- Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
- Improved tappet stability in high-lift and high-rpm situations
- Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
- Made in the USA
- Will fit M8 models with VVT.
- Outer drive gears included.
Specs
| Exhaust Lift | 0.485" |
| Intake Duration | 227° |
| Units | Kit |
| Grind | 496 Series |
| Intake Close | 40° |
| Riding Style | Street |
| Intake Lift at TDC | 0.072" |
| Intake Open | 7° |
| Application | Water Cooled |
| Exhaust Duration | 243° |
| Exhaust Open | 48° |
| Exhaust Close | 15° |
| Type | Gear Drive |
| Exhaust Lift at TDC | 0.097" |
| Intake Lift | 0.485" |
| Features | Chrome Pushrod Tubes |
| Product Name | Camchest Kit |
| Year | Make | Model |
|---|---|---|
| 2017 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic |
| 2017 | Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2017 | Harley-Davidson | FLHTK Ultra Limited |
| 2017 | Harley-Davidson | FLHTKL Ultra Limited Low |
| 2017 | Harley-Davidson | FLHTKSE CVO Limited |
| 2018 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic |
| 2018 | Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2018 | Harley-Davidson | FLHTK Ultra Limited |
| 2018 | Harley-Davidson | FLHTKL Ultra Limited Low |
| 2018 | Harley-Davidson | FLHTKSE CVO Limited |
| 2019 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic |
| 2019 | Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2019 | Harley-Davidson | FLHTK Ultra Limited |
| 2019 | Harley-Davidson | FLHTKL Ultra Limited Low |
| 2019 | Harley-Davidson | FLHTKSE CVO Limited |
| 2020 | Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2020 | Harley-Davidson | FLHTCUTGSE CVO Tri Glide |
| 2020 | Harley-Davidson | FLHTK Ultra Limited |
| 2020 | Harley-Davidson | FLHTKSE CVO Limited |
| 2021 | Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2021 | Harley-Davidson | FLHTCUTGSE CVO Tri Glide |
| 2021 | Harley-Davidson | FLHTK Ultra Limited |
| 2021 | Harley-Davidson | FLHTKSE CVO Limited |
| 2022 | Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2022 | Harley-Davidson | FLHTCUTG Tri Glide Ultra G.I. |
| 2022 | Harley-Davidson | FLHTCUTGSE CVO Tri Glide |
| 2022 | Harley-Davidson | FLHTK Ultra Limited |
| 2023 | Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2023 | Harley-Davidson | FLHTK Ultra Limited |
| 2023 | Harley-Davidson | FLTRXSE CVO Road Glide |
| 2024 | Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2024 | Harley-Davidson | FLHTK Ultra Limited |
| 2024 | Harley-Davidson | FLTRXSE CVO Road Glide |
| 2024 | Harley-Davidson | FLTRXSTSE CVO Road Glide ST |
| 2025 | Harley-Davidson | FLHTCUTG Tri Glide Ultra |
| 2025 | Harley-Davidson | FLTRXRRSE CVO Road Glide RR |
| 2025 | Harley-Davidson | FLTRXSE CVO Road Glide |
| 2025 | Harley-Davidson | FLTRXSTSE CVO Road Glide ST |
| 2025 | Harley-Davidson | Tri Glide Ultra Classic FLHTCUTG |
| 2026 | Harley-Davidson | CVO Street Glide 3 Limited FLHLTSE |
| 2026 | Harley-Davidson | CVO Street Glide Limited FLHXLSE |
| 2026 | Harley-Davidson | CVO Street Glide ST FLHXSTSE |
| 2026 | Harley-Davidson | FLTRXSTSE CVO Road Glide ST |
| 2026 | Harley-Davidson | Road Glide Limited FLTRXL |
| 2026 | Harley-Davidson | Street Glide 3 Limited FLHLT |
| 2026 | Harley-Davidson | Street Glide Limited FLHXL |
Fitment details provided by supplier.
Product Videos
Custom Field
Type Gear Drive
