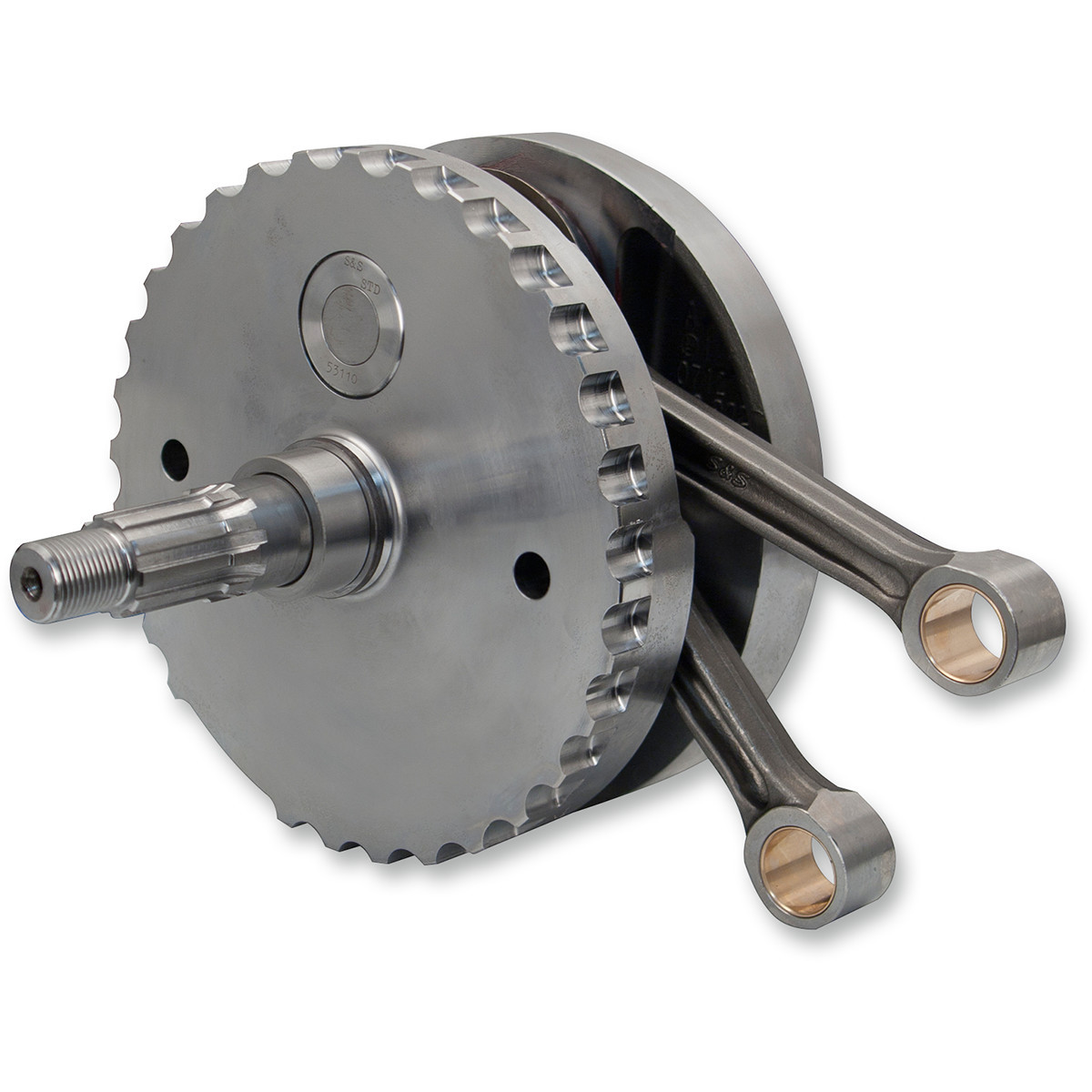

Flywheel Assembly - 4-3/8" - with Sprocket Bearing Race - Twin Cam "A" '99-'06 (except '06 Dyna)
Features
- For 96"/103"/106" big bore | 110"/117" engine with stock or S&S pistons (will be noted)
- Fully assembled with premium quaility S&S® heavy duty 7.659" connecting rods, with full width wrist pin ends, and dynamically balanced
- Trued to less than .0005" runout on pinion and sprocket shaft bearing surfaces, making them capable of higher rpm and fully compatible with gear drive cams
- CNC machined from heat-treated, closed die, steel forgings, which are 114% stronger than late style stock steel flywheels
- The only joints in the assembly are where the 1.671" diameter connecting rod crankpin is pressed into the flywheels
- Pinion and sprocket shafts are forged as part of the flywheel
- Made in the USA
Specs
| Material | 4140 Steel |
| Engine Type | "A" motor |
| Units | Each |
| Features | with Sprocket Bearing Race |
| Product Name | Flywheel Assembly |
| Stroke Length | 4-3/8" |
| Riding Style | Street |
Product Videos
Custom Field
Material 4140 Steel
