'08-'22 models will require the use of 1200 cc cylinders.

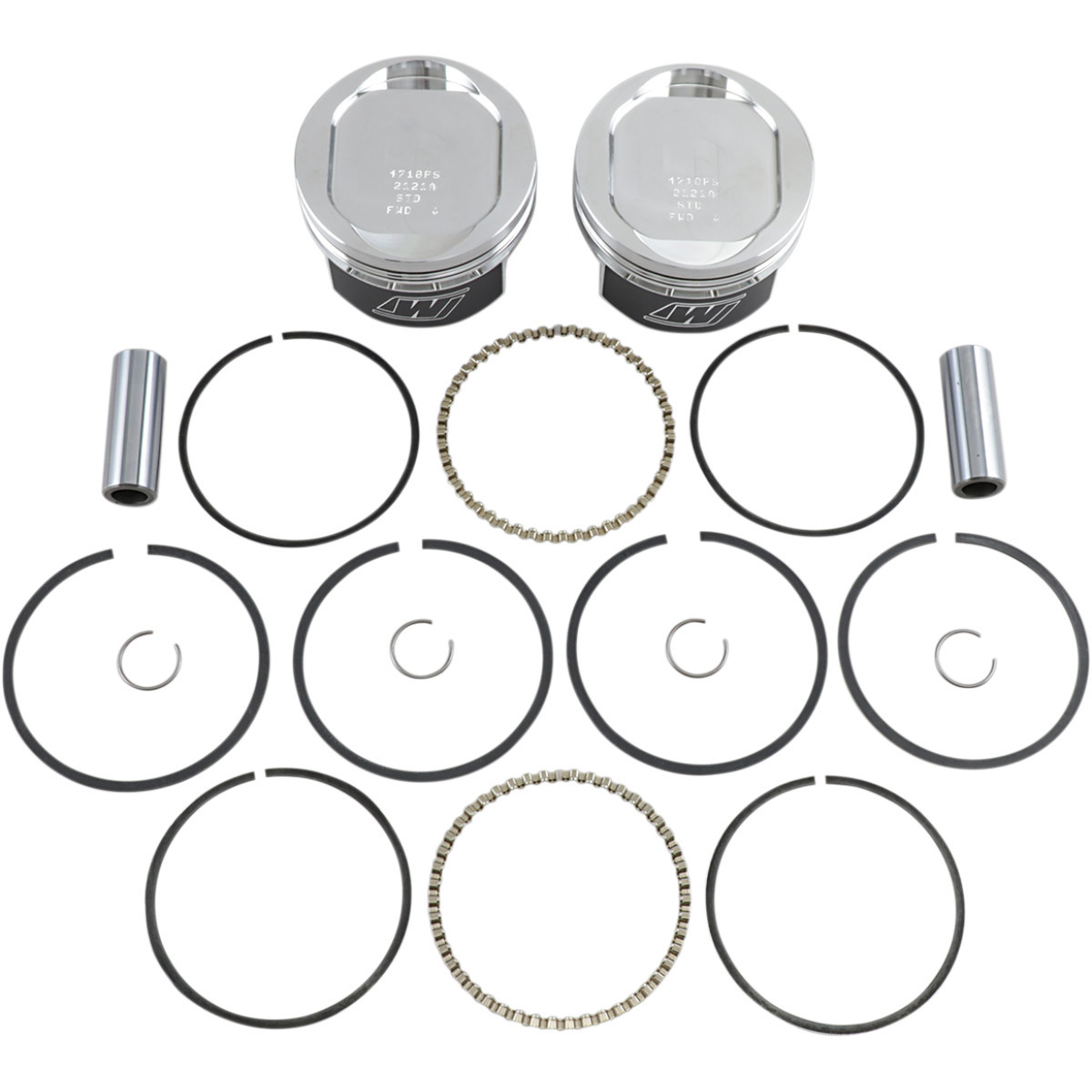

Kit Includes:
• 2x Pistons
• 2x Ring Sets
• 2x Wrist Pins
• 4x Circlips
Features
- Forged from high-silicon aluminum alloy for maximum strength and dependability
- Kit Includes pistons, rings, retainer clips and chrome piston pins
- Includes X-Ring package (0.062" top ring, 0.062" compression ring, and 0.158" oil ring)
- Pistons are made in the USA
Specs
| Product Name | Rebuild Kit |
| Displacement | 1200 cc |
| Color/Finish | Aluminum |
| Piston Diameter | 3.4955" |
| Riding Style | Street |
| Bore - Oversize | Standard |
| Compression Ratio | 9.5:1 |
| Skirt Coating | Non-Coated |
| Stroke Length | 3-13/16" |
| Type | Top End |
| Units | Kit |
| Bore Size | 3.498" |
| Engine Type | 4-Stroke |
| Piston Head Shape | Inverted Dome -11.2 cc |
| Piston Material | Forged 2618 Aluminum |
| Year | Make | Model |
|---|---|---|
| 1986 | Harley | Davidson XLH883 Sportster 883 |
| 1986 | Harley | Davidson XLH883D Sportster 883 Deluxe |
| 1986 | Harley-Davidson | XL |
| 1987 | Harley | Davidson XLH883 Sportster 883 |
| 1987 | Harley | Davidson XLH883D Sportster 883 Deluxe |
| 1987 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1987 | Harley-Davidson | XL |
| 1988 | Harley | Davidson XLH883 Sportster 883 |
| 1988 | Harley | Davidson XLH883D Sportster 883 Deluxe |
| 1988 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1988 | Harley-Davidson | XL |
| 1988 | Harley-Davidson | XLH883 |
| 1988 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1988 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1989 | Harley | Davidson XLH883 Sportster 883 |
| 1989 | Harley | Davidson XLH883D Sportster 883 Deluxe |
| 1989 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1989 | Harley-Davidson | XL |
| 1989 | Harley-Davidson | XLH883 |
| 1989 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe |
| 1989 | Harley-Davidson | XLH883HUG Sportster 883 Hugger |
| 1990 | Harley | Davidson XLH883 Sportster 883 |
| 1990 | Harley | Davidson XLH883D Sportster 883 Deluxe |
| 1990 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1990 | Harley-Davidson | XL |
| 1991 | Harley | Davidson XLH883 Sportster 883 |
| 1991 | Harley | Davidson XLH883D Sportster 883 Deluxe |
| 1991 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1991 | Harley-Davidson | XL |
| 1991 | Harley-Davidson | XL883 Sportster |
| 1992 | Harley | Davidson XLH883 Sportster 883 |
| 1992 | Harley | Davidson XLH883D Sportster 883 Deluxe |
| 1992 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1992 | Harley-Davidson | XL |
| 1992 | Harley-Davidson | XL883 Sportster |
| 1993 | Harley | Davidson XLH883 Sportster 883 |
| 1993 | Harley | Davidson XLH883D Sportster 883 Deluxe |
| 1993 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1993 | Harley-Davidson | XL |
| 1993 | Harley-Davidson | XL883 Sportster |
| 1994 | Harley | Davidson XL883D Sportster 883 Deluxe |
| 1994 | Harley | Davidson XLH883 Sportster 883 |
| 1994 | Harley | Davidson XLH883D Sportster 883 Deluxe |
| 1994 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1994 | Harley-Davidson | XL |
| 1994 | Harley-Davidson | XL883 Sportster |
| 1995 | Harley | Davidson XL883D Sportster 883 Deluxe |
| 1995 | Harley | Davidson XLH883 Sportster 883 |
| 1995 | Harley | Davidson XLH883D Sportster 883 Deluxe |
| 1995 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1995 | Harley-Davidson | XL |
| 1995 | Harley-Davidson | XL883 Sportster |
| 1996 | Harley | Davidson XLH883 Sportster 883 |
| 1996 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1996 | Harley-Davidson | XL |
| 1996 | Harley-Davidson | XL883 Sportster |
| 1997 | Harley | Davidson XLH883 Sportster 883 |
| 1997 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1997 | Harley-Davidson | XL |
| 1997 | Harley-Davidson | XL883 Sportster |
| 1998 | Harley | Davidson XLH883 Sportster 883 |
| 1998 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1998 | Harley-Davidson | 883 Custom XLC |
| 1998 | Harley-Davidson | XL |
| 1998 | Harley-Davidson | XL883 Sportster |
| 1999 | Harley | Davidson XL883C Sportster 883 Custom |
| 1999 | Harley | Davidson XLH883 Sportster 883 |
| 1999 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 1999 | Harley-Davidson | 883 Custom EFI XLC |
| 1999 | Harley-Davidson | XL |
| 1999 | Harley-Davidson | XL883 Sportster |
| 1999 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2000 | Harley | Davidson XL883C Sportster 883 Custom |
| 2000 | Harley | Davidson XLH883 Sportster 883 |
| 2000 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 2000 | Harley-Davidson | 883 Custom EFI XLC |
| 2000 | Harley-Davidson | XL |
| 2000 | Harley-Davidson | XL883 Sportster |
| 2000 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2001 | Harley | Davidson XL883C Sportster 883 Custom |
| 2001 | Harley | Davidson XLH883 Sportster 883 |
| 2001 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 2001 | Harley-Davidson | 883 Custom EFI XLC |
| 2001 | Harley-Davidson | XL |
| 2001 | Harley-Davidson | XL883 Sportster |
| 2001 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2002 | Harley | Davidson XL883C Sportster 883 Custom |
| 2002 | Harley | Davidson XL883R 883 Roadster |
| 2002 | Harley | Davidson XLH883 Sportster 883 |
| 2002 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 2002 | Harley-Davidson | 883 Custom EFI XLC |
| 2002 | Harley-Davidson | 883 Roadster EFI XLR |
| 2002 | Harley-Davidson | XL |
| 2002 | Harley-Davidson | XL883 Sportster |
| 2002 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2002 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2003 | Harley | Davidson XL883C Sportster 883 Custom |
| 2003 | Harley | Davidson XL883R 883 Roadster |
| 2003 | Harley | Davidson XLH883 Sportster 883 |
| 2003 | Harley | Davidson XLH883H Sportster 883 Hugger |
| 2003 | Harley-Davidson | 883 Custom EFI XLC |
| 2003 | Harley-Davidson | 883 Roadster EFI XLR |
| 2003 | Harley-Davidson | XL |
| 2003 | Harley-Davidson | XL883 Sportster |
| 2003 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2003 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2004 | Harley | Davidson XL883 Sportster 883 |
| 2004 | Harley | Davidson XL883C Sportster 883 Custom |
| 2004 | Harley-Davidson | 883 Custom EFI XLC |
| 2004 | Harley-Davidson | XL883 Sportster |
| 2004 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2005 | Harley | Davidson XL883 Sportster 883 |
| 2005 | Harley | Davidson XL883C Sportster 883 Custom |
| 2005 | Harley | Davidson XL883L Super Low |
| 2005 | Harley | Davidson XL883R 883 Roadster |
| 2005 | Harley-Davidson | 883 Custom EFI XLC |
| 2005 | Harley-Davidson | 883 Roadster EFI XLR |
| 2005 | Harley-Davidson | XL883 Sportster |
| 2005 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2005 | Harley-Davidson | XL883L Sportster 883 Low |
| 2005 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2006 | Harley | Davidson XL883 Sportster 883 |
| 2006 | Harley | Davidson XL883C Sportster 883 Custom |
| 2006 | Harley | Davidson XL883L Super Low |
| 2006 | Harley | Davidson XL883R 883 Roadster |
| 2006 | Harley-Davidson | 883 Custom EFI XLC |
| 2006 | Harley-Davidson | 883 Low EFI XLL |
| 2006 | Harley-Davidson | 883 Roadster EFI XLR |
| 2006 | Harley-Davidson | XL883 Sportster |
| 2006 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2006 | Harley-Davidson | XL883L Sportster 883 Low |
| 2006 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2007 | Harley | Davidson XL883 Sportster 883 |
| 2007 | Harley | Davidson XL883C Sportster 883 Custom |
| 2007 | Harley | Davidson XL883L Super Low |
| 2007 | Harley | Davidson XL883R 883 Roadster |
| 2007 | Harley-Davidson | 883 Roadster XLR |
| 2007 | Harley-Davidson | XL883 Sportster |
| 2007 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2007 | Harley-Davidson | XL883L Sportster 883 Low |
| 2007 | Harley-Davidson | XL883R Sportster 883 Roadster |
| 2008 | Harley | Davidson XL883 Sportster 883 |
| 2008 | Harley | Davidson XL883C Sportster 883 Custom |
| 2008 | Harley | Davidson XL883L Super Low |
| 2008 | Harley-Davidson | XL883 Sportster |
| 2008 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2008 | Harley-Davidson | XL883L Sportster 883 Low |
| 2009 | Harley | Davidson XL883C Sportster 883 Custom |
| 2009 | Harley | Davidson XL883L Super Low |
| 2009 | Harley | Davidson XL883N Iron 883 |
| 2009 | Harley-Davidson | 883 EFI XL |
| 2009 | Harley-Davidson | XL883 Sportster |
| 2009 | Harley-Davidson | XL883C Sportster 883 Custom |
| 2009 | Harley-Davidson | XL883L Sportster 883 Low |
| 2009 | Harley-Davidson | XL883N Iron 883 |
| 2010 | Harley | Davidson XL883L Super Low |
| 2010 | Harley | Davidson XL883N Iron 883 |
| 2010 | Harley-Davidson | XL883L Sportster 883 Low |
| 2010 | Harley-Davidson | XL883N Iron 883 |
| 2011 | Harley | Davidson XL883L Super Low |
| 2011 | Harley | Davidson XL883N Iron 883 |
| 2011 | Harley-Davidson | XL883L SuperLow |
| 2011 | Harley-Davidson | XL883N Iron 883 |
| 2012 | Harley | Davidson XL883L Super Low |
| 2012 | Harley | Davidson XL883N Iron 883 |
| 2012 | Harley-Davidson | XL883L SuperLow |
| 2012 | Harley-Davidson | XL883N Iron 883 |
| 2013 | Harley | Davidson XL883L Super Low |
| 2013 | Harley | Davidson XL883N Iron 883 |
| 2013 | Harley-Davidson | XL883L SuperLow |
| 2013 | Harley-Davidson | XL883N Iron 883 |
| 2014 | Harley | Davidson XL883L Super Low |
| 2014 | Harley | Davidson XL883N Iron 883 |
| 2014 | Harley-Davidson | XL883L SuperLow |
| 2014 | Harley-Davidson | XL883N Iron 883 |
| 2015 | Harley | Davidson XL883L Super Low |
| 2015 | Harley | Davidson XL883N Iron 883 |
| 2015 | Harley-Davidson | XL883L SuperLow |
| 2015 | Harley-Davidson | XL883N Iron 883 |
| 2016 | Harley | Davidson XL883L Super Low |
| 2016 | Harley | Davidson XL883N Iron 883 |
| 2016 | Harley-Davidson | XL883L SuperLow |
| 2016 | Harley-Davidson | XL883N Iron 883 |
| 2017 | Harley | Davidson XL883L Super Low |
| 2017 | Harley | Davidson XL883N Iron 883 |
| 2017 | Harley-Davidson | XL883L SuperLow |
| 2017 | Harley-Davidson | XL883N Iron 883 |
| 2018 | Harley | Davidson XL883L Super Low |
| 2018 | Harley | Davidson XL883N Iron 883 |
| 2018 | Harley-Davidson | XL883L SuperLow |
| 2018 | Harley-Davidson | XL883N Iron 883 |
| 2019 | Harley | Davidson XL883L Super Low |
| 2019 | Harley | Davidson XL883N Iron 883 |
| 2019 | Harley-Davidson | XL883L SuperLow |
| 2019 | Harley-Davidson | XL883N Iron 883 |
| 2020 | Harley | Davidson XL883N Iron 883 |
| 2020 | Harley-Davidson | XL883N Iron 883 |
| 2021 | Harley | Davidson XL883N Iron 883 |
| 2021 | Harley-Davidson | XL883N Iron 883 |
| 2022 | Harley-Davidson | XL883N Iron 883 |
Fitment details provided by supplier.
