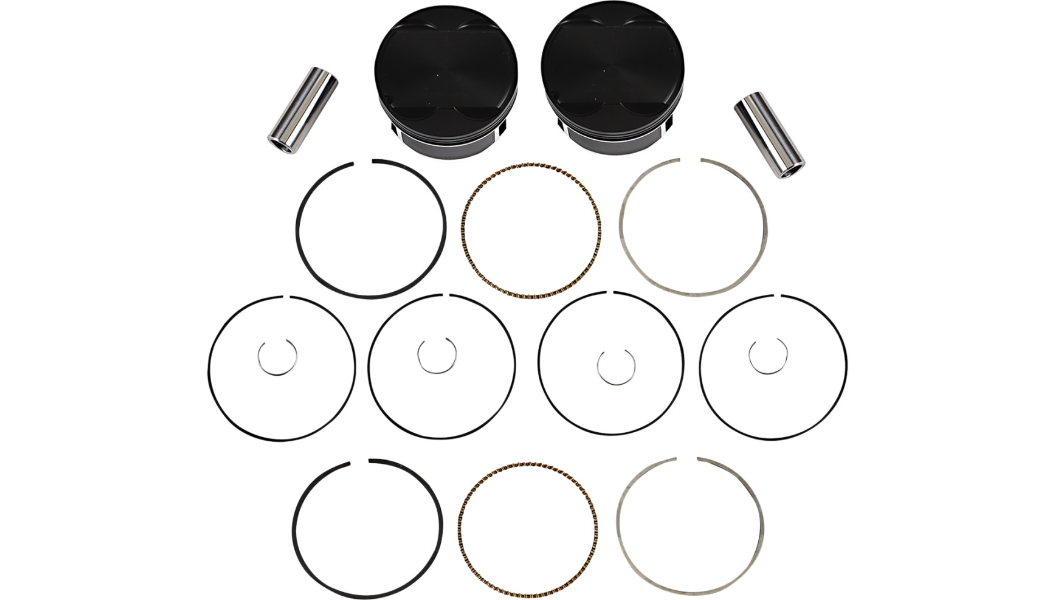

Includes:
• 2x Black Edition Piston
• 2x Ring Sets
• 2x Wrist Pins
• 4x Cirlips
Features
- Features ArmorX™ piston coating for superior protection in extreme conditions and reduced wear
- ArmorFit™ skirt coating auto-adjusts to the cylinder wall so there’s no need to measure clearance; provides smooth, quiet, trouble-free operation
- Dome design for improved flame travel to maximize air/ fuel burn efficiency
- High compression (11:1) for added power
- Superfinish piston pin reduces friction and improves scuff resistance
- Enhanced pin oiling for improved lubrication and reduced friction
- Augmented ring land details improve ring seal and function
- Dedicated rings for precise fit, improved compression and oil control
- Fits OEM and Screamin’ Eagle cylinder heads
- Kit includes two pistons, rings, piston pins and circlips
- Made in the USA
Specs
| Stroke Length | 4.500" |
| Model | Black Edition™ |
| Units | Kit |
| Displacement | 117 CI |
| Piston Material | Forged 2618 Aluminum |
| Product Name | Piston Kit |
| Bore Size | 4.075" |
| Piston Diameter | 4.072" |
| Riding Style | Street |
| Compression Ratio | 11.1:1 |
| Skirt Coating | ArmorFit™ |
| Year | Make | Model |
|---|---|---|
| 2017 | Harley-Davidson | FLHR |
| 2017 | Harley-Davidson | FLHR Road King |
| 2017 | Harley-Davidson | FLHT |
| 2017 | Harley-Davidson | FLHTK Ultra Limited |
| 2017 | Harley-Davidson | FLHX |
| 2017 | Harley-Davidson | FLHXS Street Glide Special |
| 2017 | Harley-Davidson | FLST |
| 2017 | Harley-Davidson | FLT |
| 2017 | Harley-Davidson | FLTRXS Road Glide Special |
| 2017 | Harley-Davidson | FXST |
| 2018 | Harley-Davidson | FLFBS Fat Boy 114 |
| 2018 | Harley-Davidson | FLHCS Heritage Classic 114 |
| 2018 | Harley-Davidson | FLHR |
| 2018 | Harley-Davidson | FLHR Road King |
| 2018 | Harley-Davidson | FLHT |
| 2018 | Harley-Davidson | FLHTK Ultra Limited |
| 2018 | Harley-Davidson | FLHX |
| 2018 | Harley-Davidson | FLHXS Street Glide Special |
| 2018 | Harley-Davidson | FLST |
| 2018 | Harley-Davidson | FLT |
| 2018 | Harley-Davidson | FLTRXS Road Glide Special |
| 2018 | Harley-Davidson | FXBRS Breakout 114 |
| 2018 | Harley-Davidson | FXFBS Fat Bob 114 |
| 2018 | Harley-Davidson | FXST |
| 2019 | Harley-Davidson | FLFBS Fat Boy 114 |
| 2019 | Harley-Davidson | FLHCS Heritage Classic 114 |
| 2019 | Harley-Davidson | FLHR |
| 2019 | Harley-Davidson | FLHR Road King |
| 2019 | Harley-Davidson | FLHT |
| 2019 | Harley-Davidson | FLHT Electra Glide Standard |
| 2019 | Harley-Davidson | FLHTK Ultra Limited |
| 2019 | Harley-Davidson | FLHX |
| 2019 | Harley-Davidson | FLHXS Street Glide Special |
| 2019 | Harley-Davidson | FLST |
| 2019 | Harley-Davidson | FLT |
| 2019 | Harley-Davidson | FLTRXS Road Glide Special |
| 2019 | Harley-Davidson | FXBRS Breakout 114 |
| 2019 | Harley-Davidson | FXDRS FXDR 114 |
| 2019 | Harley-Davidson | FXFBS Fat Bob 114 |
| 2019 | Harley-Davidson | FXST |
| 2020 | Harley-Davidson | FLFBS Fat Boy 114 |
| 2020 | Harley-Davidson | FLHCS Heritage Classic 114 |
| 2020 | Harley-Davidson | FLHR |
| 2020 | Harley-Davidson | FLHR Road King |
| 2020 | Harley-Davidson | FLHT |
| 2020 | Harley-Davidson | FLHT Electra Glide Standard |
| 2020 | Harley-Davidson | FLHTK Ultra Limited |
| 2020 | Harley-Davidson | FLHX |
| 2020 | Harley-Davidson | FLHXS Street Glide Special |
| 2020 | Harley-Davidson | FLST |
| 2020 | Harley-Davidson | FLT |
| 2020 | Harley-Davidson | FLTRXS Road Glide Special |
| 2020 | Harley-Davidson | FXBRS Breakout 114 |
| 2020 | Harley-Davidson | FXDRS FXDR 114 |
| 2020 | Harley-Davidson | FXFBS Fat Bob 114 |
| 2020 | Harley-Davidson | FXLRS Low Rider S 114 |
| 2020 | Harley-Davidson | FXST |
| 2021 | Harley-Davidson | FLFBS Fat Boy 114 |
| 2021 | Harley-Davidson | FLHCS Heritage Classic 114 |
| 2021 | Harley-Davidson | FLHR |
| 2021 | Harley-Davidson | FLHR Road King |
| 2021 | Harley-Davidson | FLHT |
| 2021 | Harley-Davidson | FLHT Electra Glide Standard |
| 2021 | Harley-Davidson | FLHTK Ultra Limited |
| 2021 | Harley-Davidson | FLHX |
| 2021 | Harley-Davidson | FLHXS Street Glide Special |
| 2021 | Harley-Davidson | FLST |
| 2021 | Harley-Davidson | FLT |
| 2021 | Harley-Davidson | FLTRXS Road Glide Special |
| 2021 | Harley-Davidson | FXBBS Street Bob 114 |
| 2021 | Harley-Davidson | FXFBS Fat Bob 114 |
| 2021 | Harley-Davidson | FXLRS Low Rider S 114 |
| 2021 | Harley-Davidson | FXST |
| 2022 | Harley-Davidson | FLFBS Fat Boy 114 |
| 2022 | Harley-Davidson | FLHCS Heritage Classic 114 |
| 2022 | Harley-Davidson | FLHR |
| 2022 | Harley-Davidson | FLHR Road King |
| 2022 | Harley-Davidson | FLHT |
| 2022 | Harley-Davidson | FLHT Electra Glide Standard |
| 2022 | Harley-Davidson | FLHTK Ultra Limited |
| 2022 | Harley-Davidson | FLHX |
| 2022 | Harley-Davidson | FLHXS Street Glide Special |
| 2022 | Harley-Davidson | FLHXST Street Glide ST |
| 2022 | Harley-Davidson | FLST |
| 2022 | Harley-Davidson | FLT |
| 2022 | Harley-Davidson | FLTRXS Road Glide Special |
| 2022 | Harley-Davidson | FLTRXST Road Glide ST |
| 2022 | Harley-Davidson | FXBBS Street Bob 114 |
| 2022 | Harley-Davidson | FXFBS Fat Bob 114 |
| 2022 | Harley-Davidson | FXLRS Low Rider S 117 |
| 2022 | Harley-Davidson | FXLRST Low Rider ST 117 |
| 2022 | Harley-Davidson | FXRST Low Rider El Diablo 117 |
| 2022 | Harley-Davidson | FXST |
| 2023 | Harley-Davidson | FLFBS Fat Boy 114 |
| 2023 | Harley-Davidson | FLHCS Heritage Classic 114 |
| 2023 | Harley-Davidson | FLHR |
| 2023 | Harley-Davidson | FLHT |
| 2023 | Harley-Davidson | FLHTK Ultra Limited |
| 2023 | Harley-Davidson | FLHX |
| 2023 | Harley-Davidson | FLHXS Street Glide Special |
| 2023 | Harley-Davidson | FLHXST Street Glide ST |
| 2023 | Harley-Davidson | FLST |
| 2023 | Harley-Davidson | FLT |
| 2023 | Harley-Davidson | FLTRXS Road Glide Special |
| 2023 | Harley-Davidson | FLTRXST Road Glide ST |
| 2023 | Harley-Davidson | FXBBS Street Bob 114 |
| 2023 | Harley-Davidson | FXBR Breakout 117 |
| 2023 | Harley-Davidson | FXFBS Fat Bob 114 |
| 2023 | Harley-Davidson | FXLRS Low Rider S 117 |
| 2023 | Harley-Davidson | FXLRST Low Rider ST 117 |
| 2023 | Harley-Davidson | FXST |
Fitment details provided by supplier.
